Swingarm, link-type, standard, no stabilizer, buff, +0cm, XR50/100 Motard

[G-Craft 90186 Swingarm Link-type Standard No Stabilizer Buff +0cm XR50/100 Motard]
XR50/100 Motard Swingarm STD +0cm No Stabilizer Link-type
This swingarm allows the installation of XR50/100 Motard and NSR50/80 (APE Type D) wheels.
The swingarm width is manufactured to be 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
Compatible models
XR50/100 Motard
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

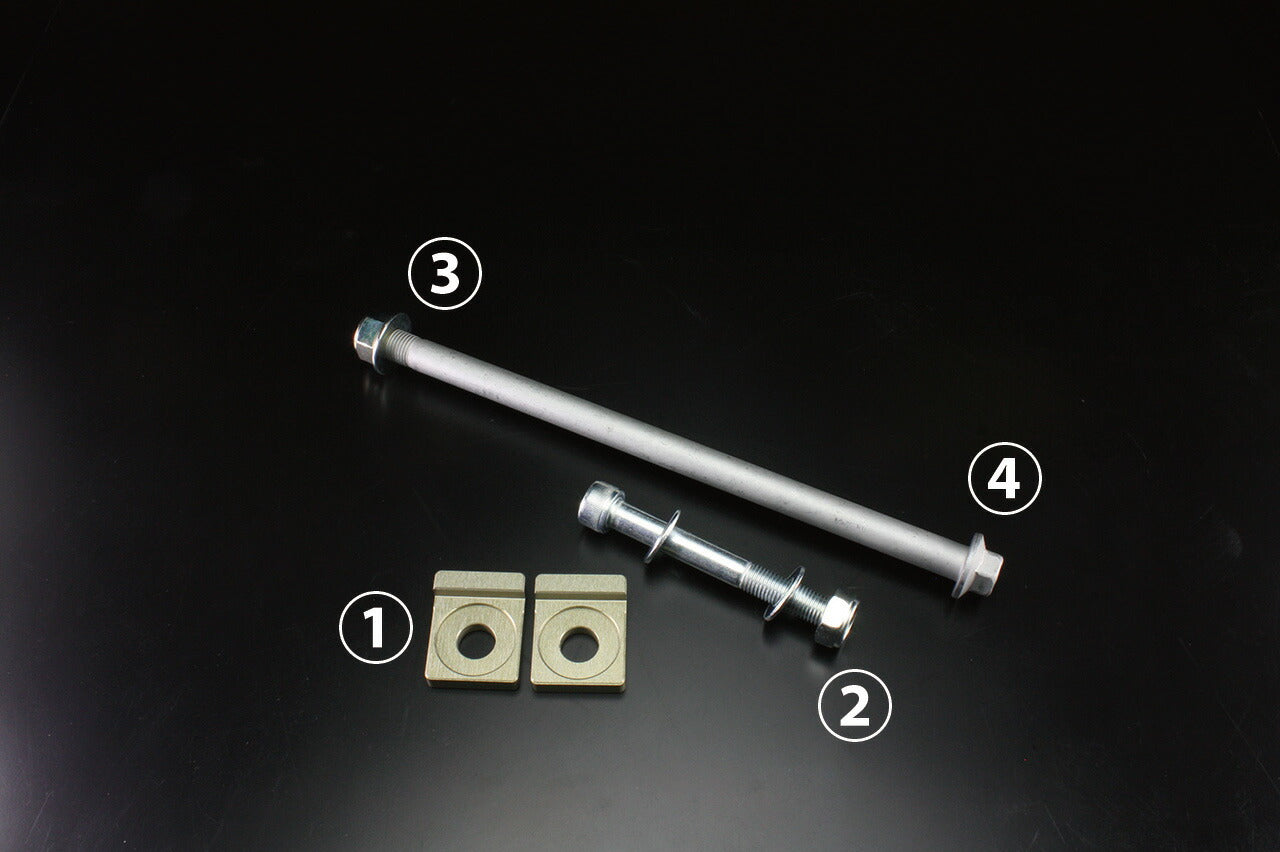

Accessories
(1) Chain pull block 1 set (dedicated to each pipe shape)
(2) Shock mounting bolt set
Bolt x 1 (Repair part number 65296)
Nut x 1 (Repair part number 65229)
Washer x 2 (Repair part number 65090/1 pc per pack)
(3) Axle nut M12 x 1 (Repair part number 38001)
(4) Axle shaft 230mm x 1 (Repair part number 38061)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Rear shock is compatible with XR Motard genuine (link-type).
*Images are for illustration purposes only; product design and specifications published are subject to change without notice. Thank you for your understanding.
