Swingarm Linkless Triple Square No Stabilizer Buff +0cm XR50/100 Motard

[G-Craft 90192 Swingarm Linkless Triple Square No Stabilizer Buff +0cm XR50/100 Motard]
XR50/100 Motard Swingarm T/S +0cm No Stabilizer Linkless
This swingarm is designed to accommodate wheels from XR50/100 Motard and NSR50/80 (APE Type D).
The swingarm width is manufactured to be 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
Compatible models
XR50/100 Motard
Surface treatment: Buff finish
Size: +0cm
Material: 7N01, A5083 material used

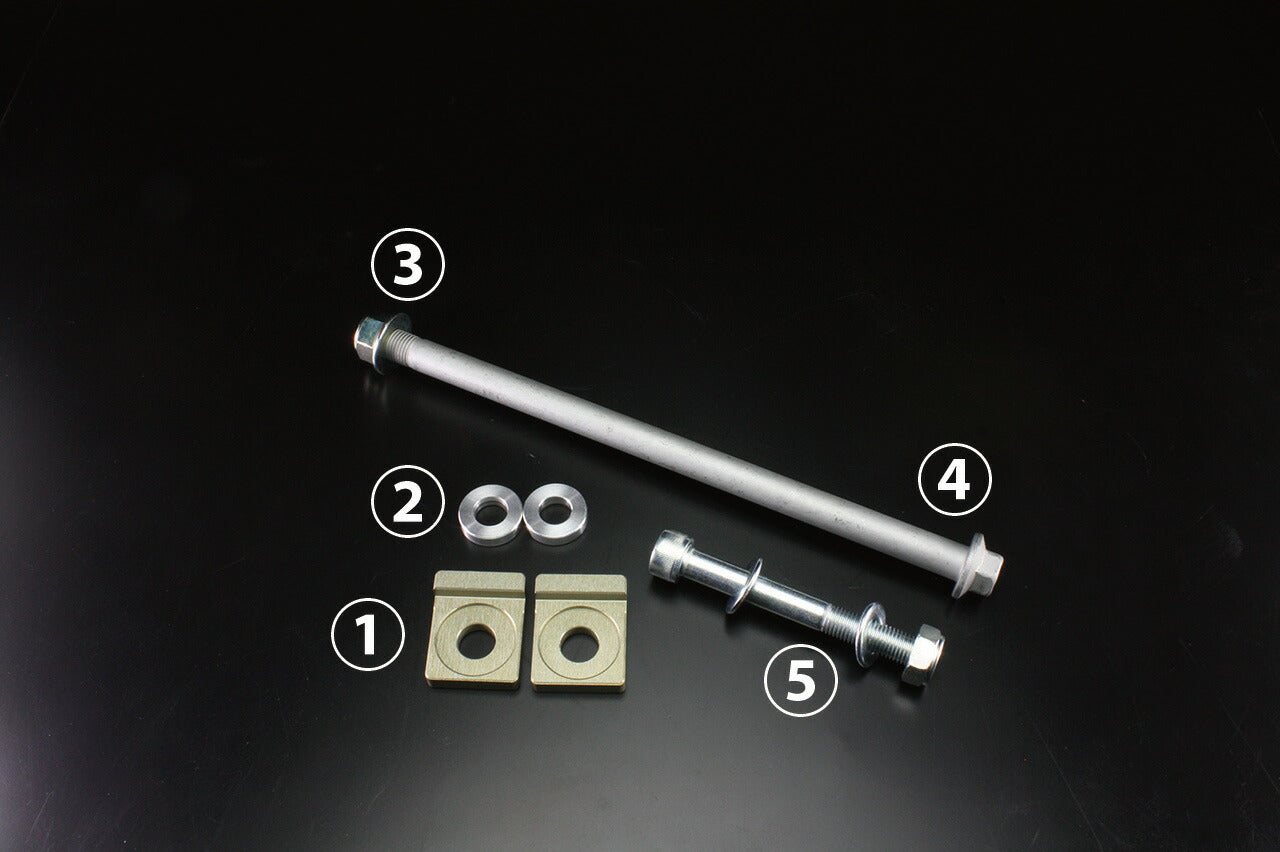

Included accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Collar for frame side shock mount 5.4mm 2 pieces (repair part number 68139/1 piece)
(3) Axle nut M12 1 piece (repair part number 38001)
(4) Axle shaft 230mm 1 piece (repair part number 38061)
(5) Bolt set for swingarm side shock mount
Bolt 1 piece (repair part number 65235)
Nut 1 piece (repair part number 65229)
Washer 2 pieces (repair part number 65090/1 piece)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Rear shock is compatible with NSR50/80 (215mm).
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
