Swingarm Triple Square No Stabilizer Buff +0cm KSR1/2

[G-Craft 90197 Swingarm Triple Square No Stabilizer Buff +0cm KSR1/2]
KSR1-2 Swingarm T/S +0cm No Stabilizer
KSR1-2 stock wheels can be installed.
Compatible models
KSR 1/2
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

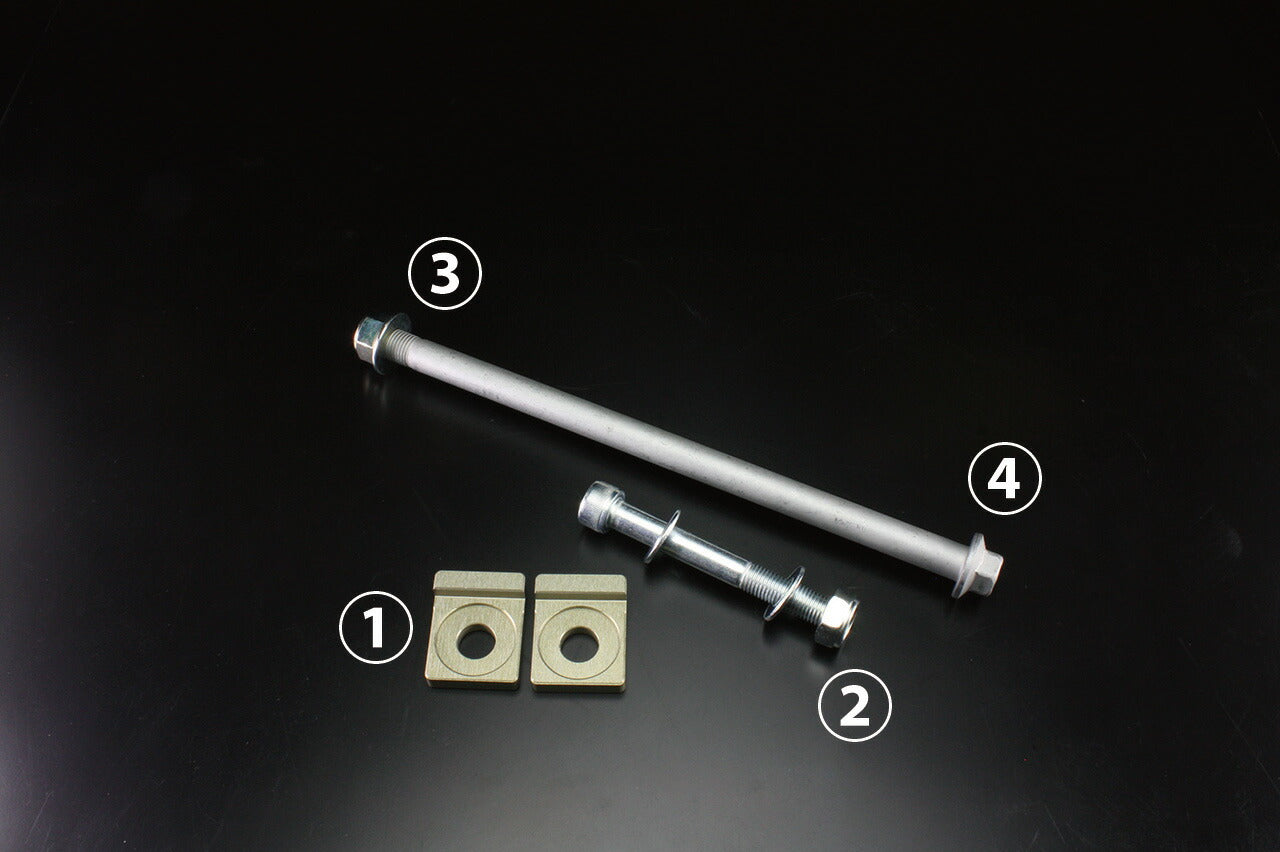

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Bolt set for shock mounting
Bolt x1 (Repair part no. 399694)
Nut x1 (Repair part no. 65229)
Washer x2 (Repair part no. 65090/1pc per pack)
(3) Axle nut M12 x1 (Repair part no. 38001)
(4) Axle shaft 230mm x1 (Repair part no. 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The pivot section comes standard with bushing specifications. (Dust seals are not included and can be installed on the vehicle without them.) Dedicated dust seals are included only with the needle bearing option.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
