NSR Wheel Swingarm Standard No Stabilizer Buff +10cm KSR1/2

[G-Craft 90202 NSR Wheel Swingarm Standard, No Stabilizer, Buffed, +10cm KSR1/2]
KSR1-2 NSR Wheel Swingarm STD +10cm No Stabilizer
Can be fitted with NSR50/80 wheels.
Compatible Models
KSR 1/2
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

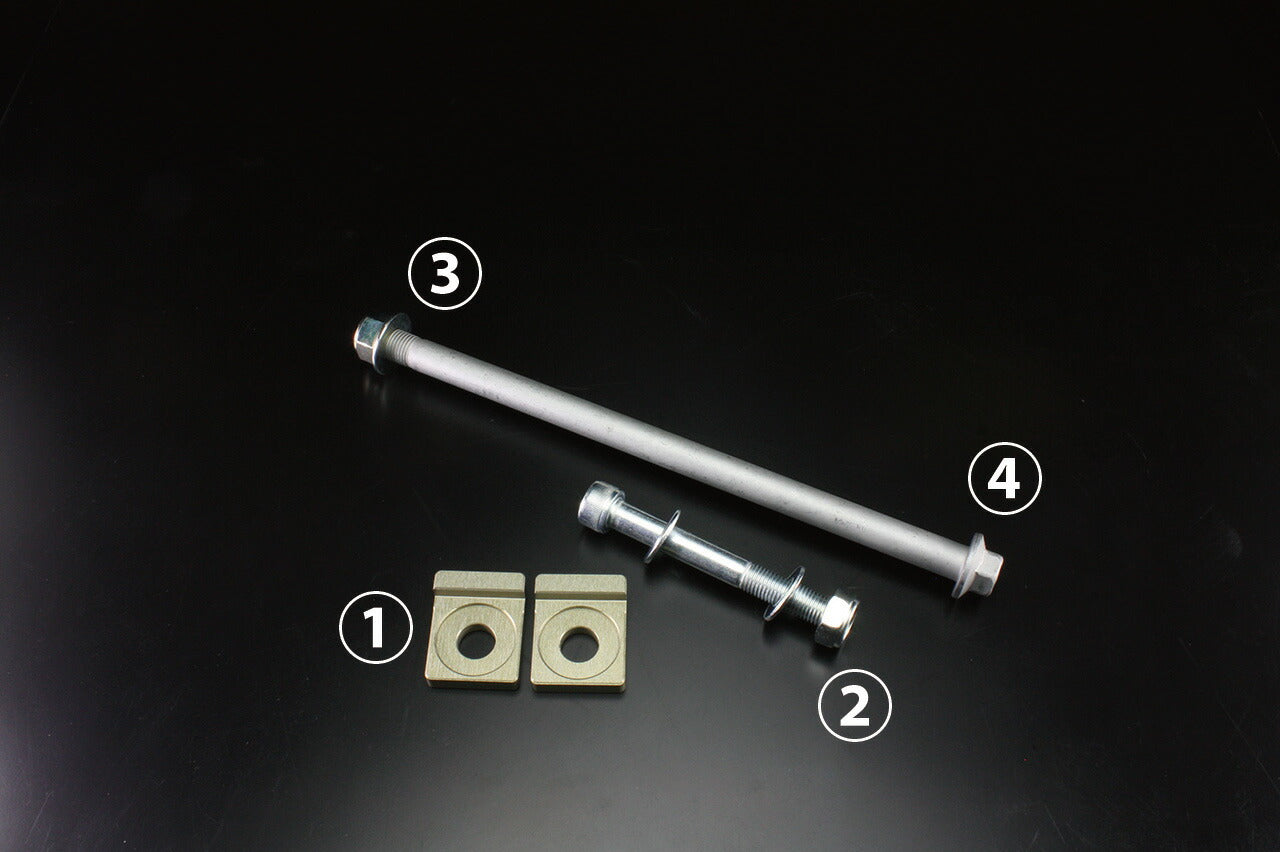

Included Accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Bolt set for shock mounting
Bolt 1 pc (Repair part no. 399694)
Nut 1 pc (Repair part no. 65229)
Washer 2 pcs (Repair part no. 65090/1 pc per pack)
(3) Axle nut M12 1 pc (Repair part no. 38001)
(4) Axle shaft 230mm 1 pc (Repair part no. 38061)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Installation requires a separate 2mm front offset sprocket and the rear sprocket mounting surface (wheel side) needs to be shaved down by 5mm.
*The pivot section is standard with a bushing specification. (Dust seals are not included and the vehicle can be assembled without them.) Dedicated dust seals are included only when the needle bearing option is selected.
*The image is for illustration purposes only, and the design and specifications of the products listed may change without prior notice. Thank you for your understanding.
