Swingarm NSR (Type D) Linkless Triple Square with Stabilizer Type 2 Buff +2cm APE50/100

【G-Craft 90213 Swingarm NSR (Type D) Linkless Triple Square with Stabilizer Type 2 Buff +2cm APE50/100】
APE50, 100 Swingarm NSR (Type D) Linkless Type 2 T/S +2cm with Stabilizer
This swingarm allows the installation of NSR50/80 (Type D) wheels.
The swingarm width is manufactured between 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
By using caliper support part number 33136 and rear disc hub part number 39149, you can convert from drum specifications to disc specifications.
It is possible to convert to disc using caliper support part number 33136 and NSR50/80 wheels.
Compatible models
APE50/100
Type: 2
Surface treatment: Buff finish
Size: +2cm
Material: 7N01, A5083 material used

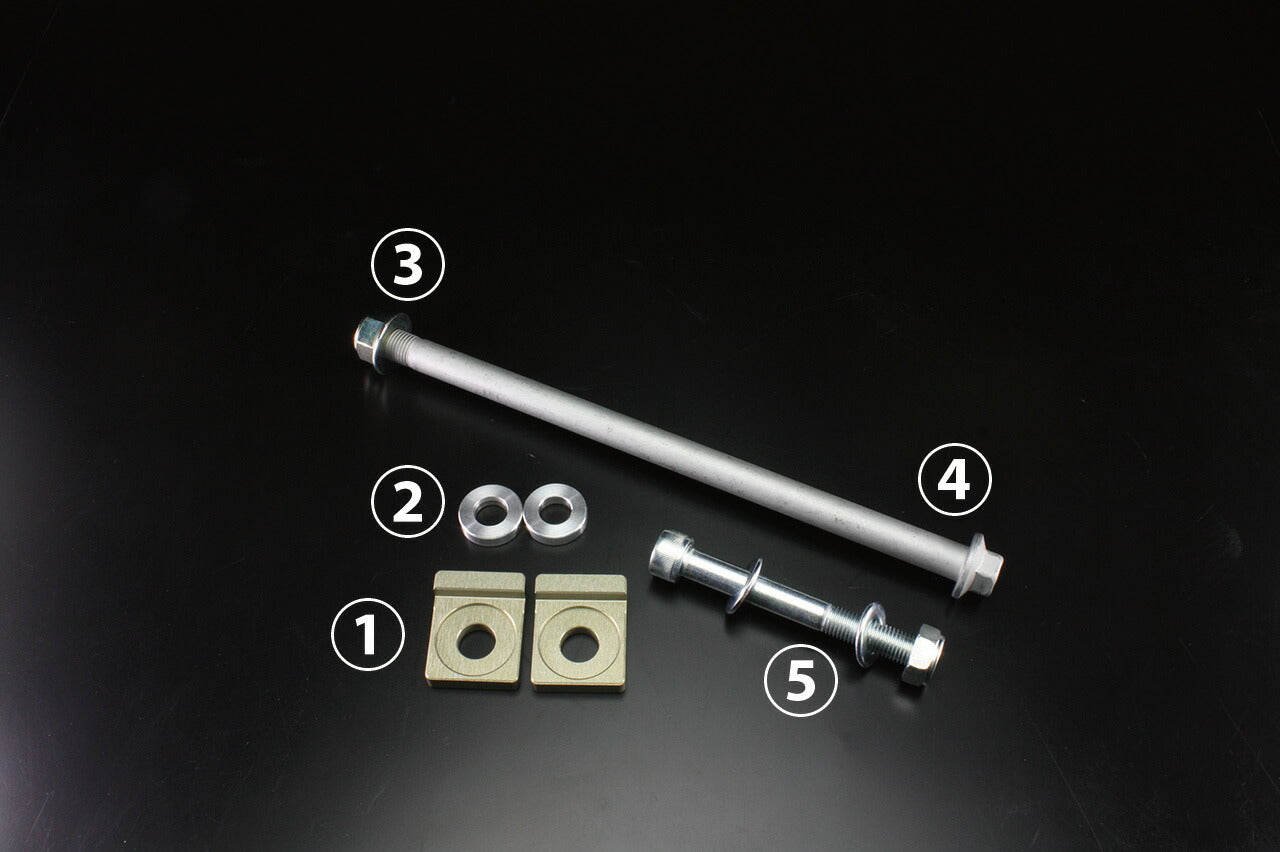

Accessories
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Collar for frame side shock mounting 5.4mm 2 pieces (repair part number 68139/1 piece included)
(3) Axle nut M12 1 piece (repair part number 38001)
(4) Axle shaft 230mm 1 piece (repair part number 38061)
(5) Bolt set for swingarm side shock mounting
Bolt 1 piece (repair part number 65235)
Nut 1 piece (repair part number 65229)
Washer 2 pieces (repair part number 65090/1 piece included)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swing Arm) are abbreviations.
*APE normal drum hub cannot be used.
*Rear shock is compatible with NSR50/80 (APE normal cannot be used)
*12-3.75J aluminum wheels can be installed.
*Genuine air cleaner box cannot be used.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
