Swingarm NSR (Type D) Linkless Triple Square with Stabilizer Type 2 Buff +4cm APE50/100

【G-Craft 90214 Swingarm NSR (Type D) Linkless Triple Square with Stabilizer Type 2 Buff +4cm Ape 50/100】
Ape 50, 100 Swingarm NSR (Type D) Linkless Type 2 T/S +4cm with Stabilizer
This swingarm allows the installation of NSR50/80 (Type D) wheels.
The swingarm width is manufactured to 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
By using caliper support part number 33136 and rear disc hub part number 39149, you can convert from a drum-spec vehicle to a disc setup.
Conversion to disc is possible using caliper support part number 33136 and NSR50/80 wheels.
Compatible models
Ape 50/100
Type: 2
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

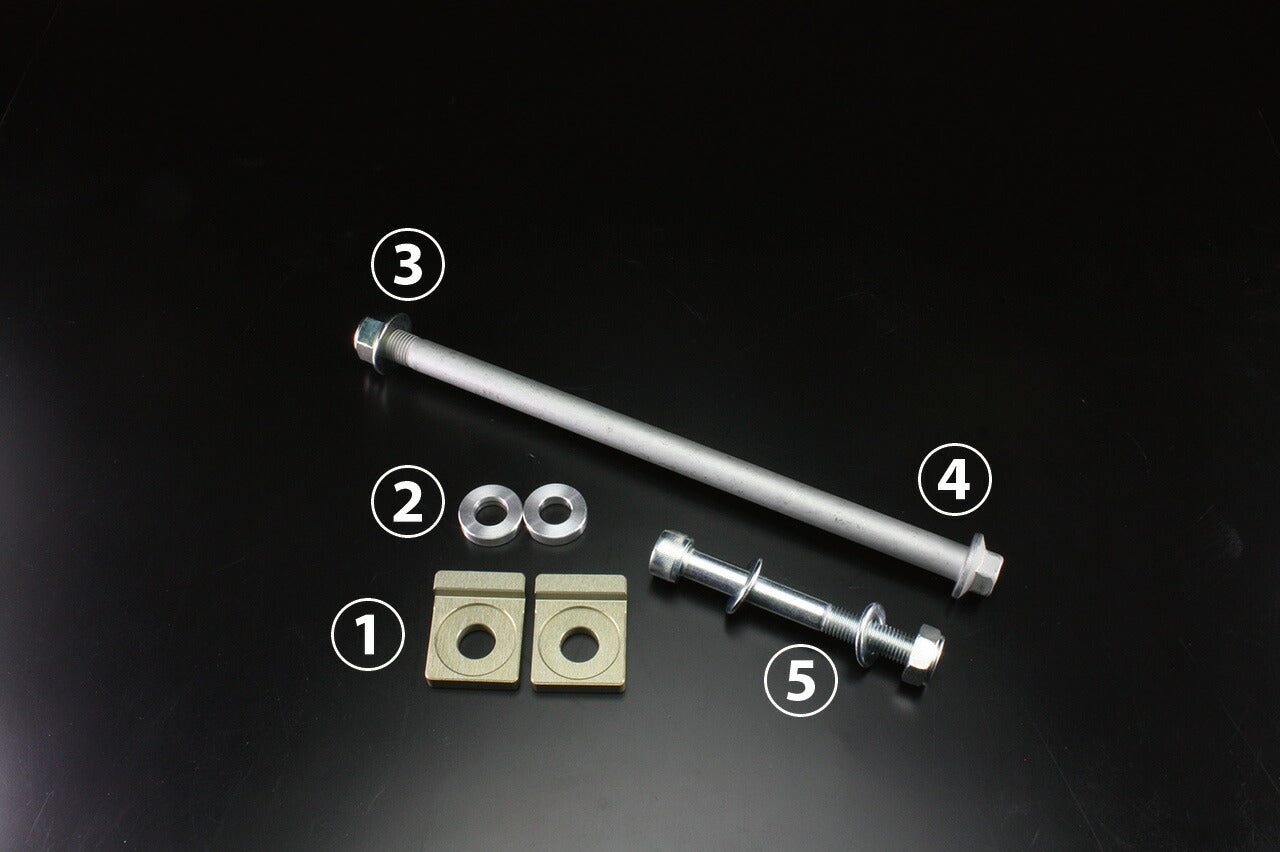

Accessories
(1) Chain puller block 1 set (dedicated for each pipe shape)
(2) Collar for shock mounting on frame side 5.4mm 2 pieces (repair part number 68139/1 piece per pack)
(3) Axle nut M12 1 piece (repair part number 38001)
(4) Axle shaft 230mm 1 piece (repair part number 38061)
(5) Bolt set for shock mounting on swingarm side
Bolt 1 piece (repair part number 65235)
Nut 1 piece (repair part number 65229)
Washer 2 pieces (repair part number 65090/1 piece per pack)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Ape normal drum hub cannot be used.
*Rear shock must be compatible with NSR50/80 (Ape normal cannot be used).
*12-3.75J aluminum wheels can be installed.
*Genuine air cleaner box cannot be used.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
