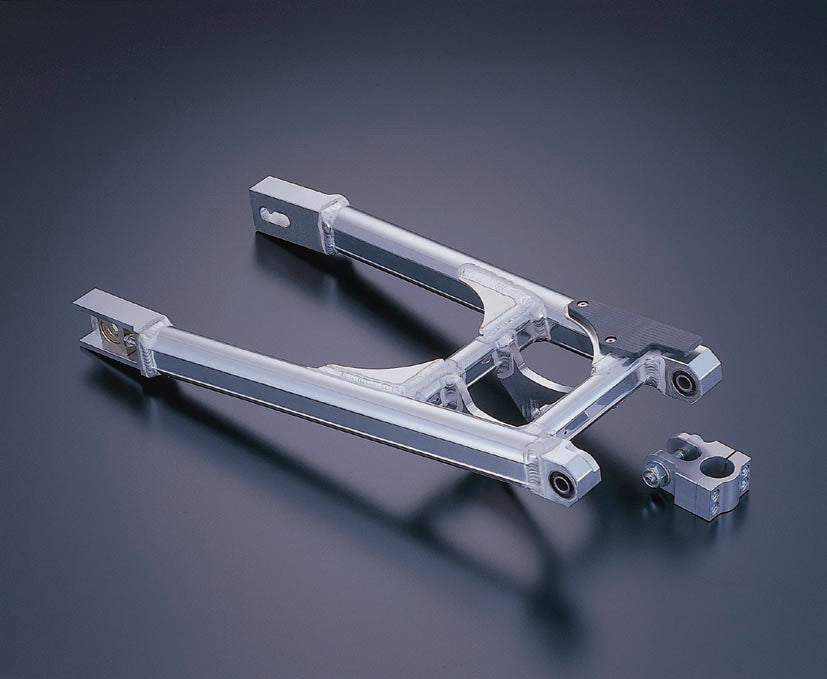

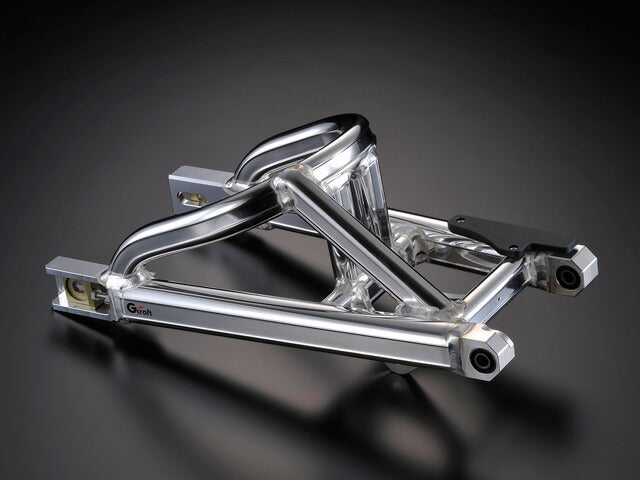

Wide Swingarm Monoshock Standard Stabilizer Buffed +16cm Monkey Gorilla

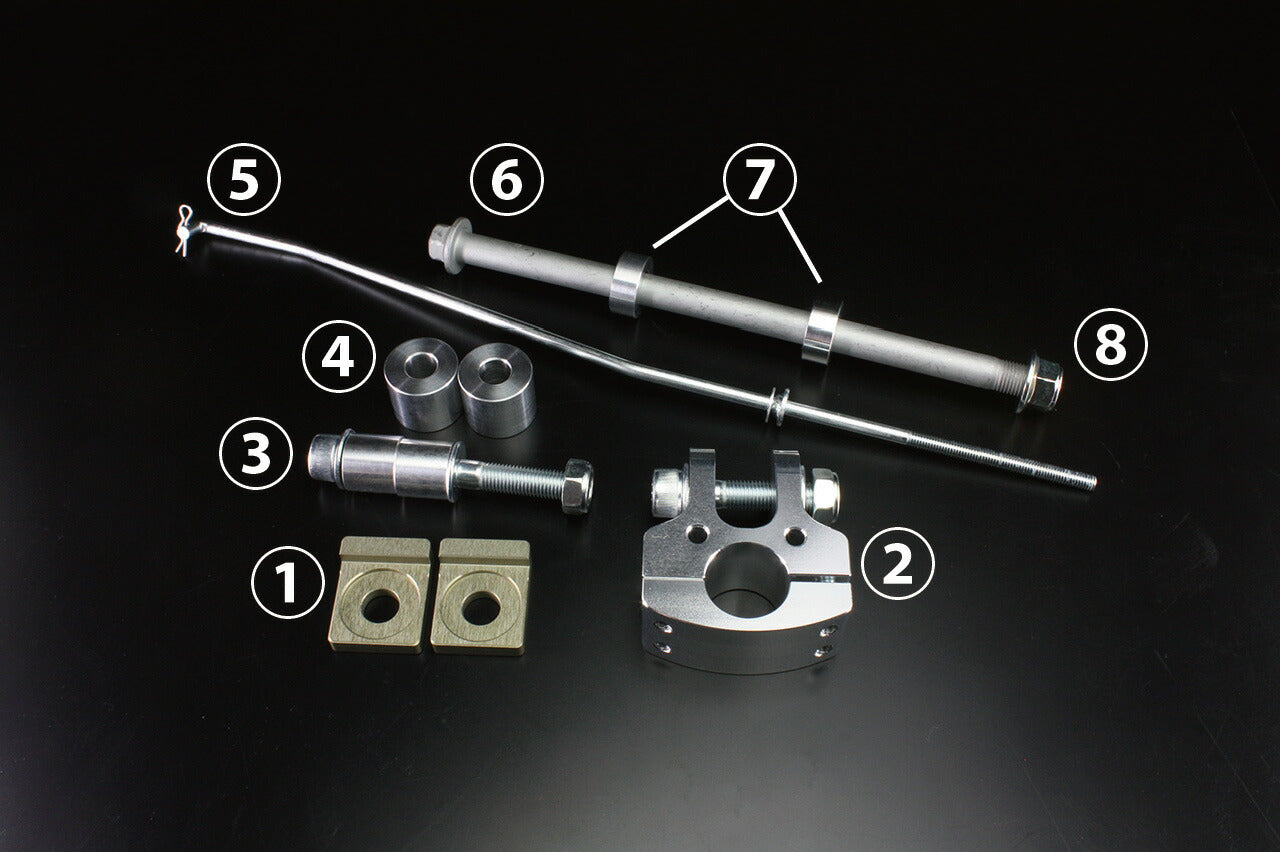

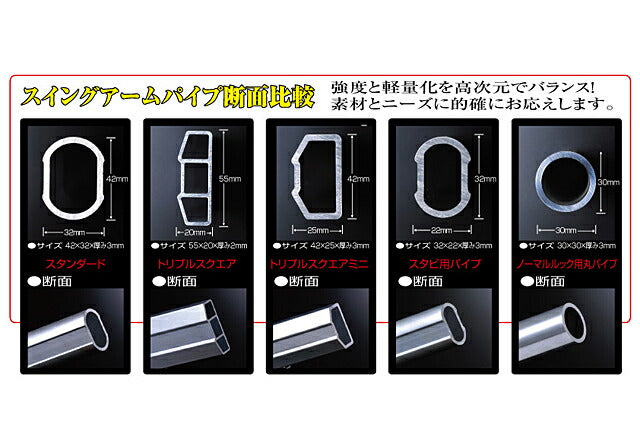

[G-Craft 90272 Wide Swingarm Monoshock Standard with Stabilizer Buff +16cm Monkey Gorilla] Monkey Wide Swingarm STD Mono +16cm with Stabilizer The Monkey wide swingarm (for wide hub) is manufactured with a width of 187-190mm. It comes with a special collar so that the genuine Monkey hub can be used. For disc conversions, you can use the 39048 wide rear disc hub. The swingarm made of triple square pipes with a strong "H-beam cross-section" is a pipe that boasts over 80% support from users who choose 16cm or more. When installing 8-4.0J, a G-Craft 4mm offset sprocket for the front and a G-Craft 4mm sprocket spacer for the rear are required. When installing 10-4.0J, a G-Craft 7mm offset sprocket for the front and a G-Craft 8mm sprocket spacer for the rear are required. Compatible models: Monkey, Gorilla Surface treatment: Buff finish Size: +16cm Material: 7N01, A5083 material used Accessories: (1) Chain adjuster set (specific to each pipe shape) (2) Frame side monoshock receiver set (repair part number 30033) (3) Shock mounting bolt set 1 bolt (repair part number 65243) 1 nut (repair part number 65229) 2 washers (repair part number 65090/1 piece) 2 collars 17.9mm (repair part number 68104/1 piece) (4) 2 seat fixing collars 22mm (repair part number 68133) (5) 1 drum brake rod (depending on swingarm length) (6) 1 axle shaft 230mm (repair part number 38061) (7) 2 axle collars 10mm (repair part number 68134/1 piece) (8) 1 axle nut M12 (repair part number 38001) Precautions: *STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations. *Up to 8-inch 4.0J (discs up to 3.5J) and 10-inch up to 4.0J can be installed. *Only triple square pipes have chain sliders on the bottom. *Standard with stabilizer Type 2 has a main pipe of 42mm x 32mm thick pipe. (Normal standard with stabilizer is 32mm x 32mm thin pipe specification) *Please use genuine NSR50/80 rear shocks. *Ohlins TTX cannot be installed. *The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
