Wide Swingarm Monoshock Standard Stabilizer Buff +20cm Monkey Gorilla

[G-Craft 90273 Wide Swingarm Monoshock Standard with Stabilizer Buff +20cm Monkey Gorilla]
Monkey Wide Swingarm STD Mono +20cm with Stabilizer
The wide swingarm for Monkey (for wide hubs) is a swingarm manufactured with a width of 187-190mm.
Special collars are included so that the genuine Monkey hub can be used.
When converting to disc brakes, the 39048 wide rear disc hub can be used.
The triple square pipe swingarm, which uses a strong "H-shaped cross-section," is supported by over 80% of users who choose 16cm or longer.
When installing an 8-4.0J, a G-Craft 4mm offset sprocket on the front and a G-Craft 4mm sprocket spacer on the rear are required.
When installing a 10-4.0, a G-Craft 7mm offset sprocket on the front and a G-Craft 8mm sprocket spacer on the rear are required.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used

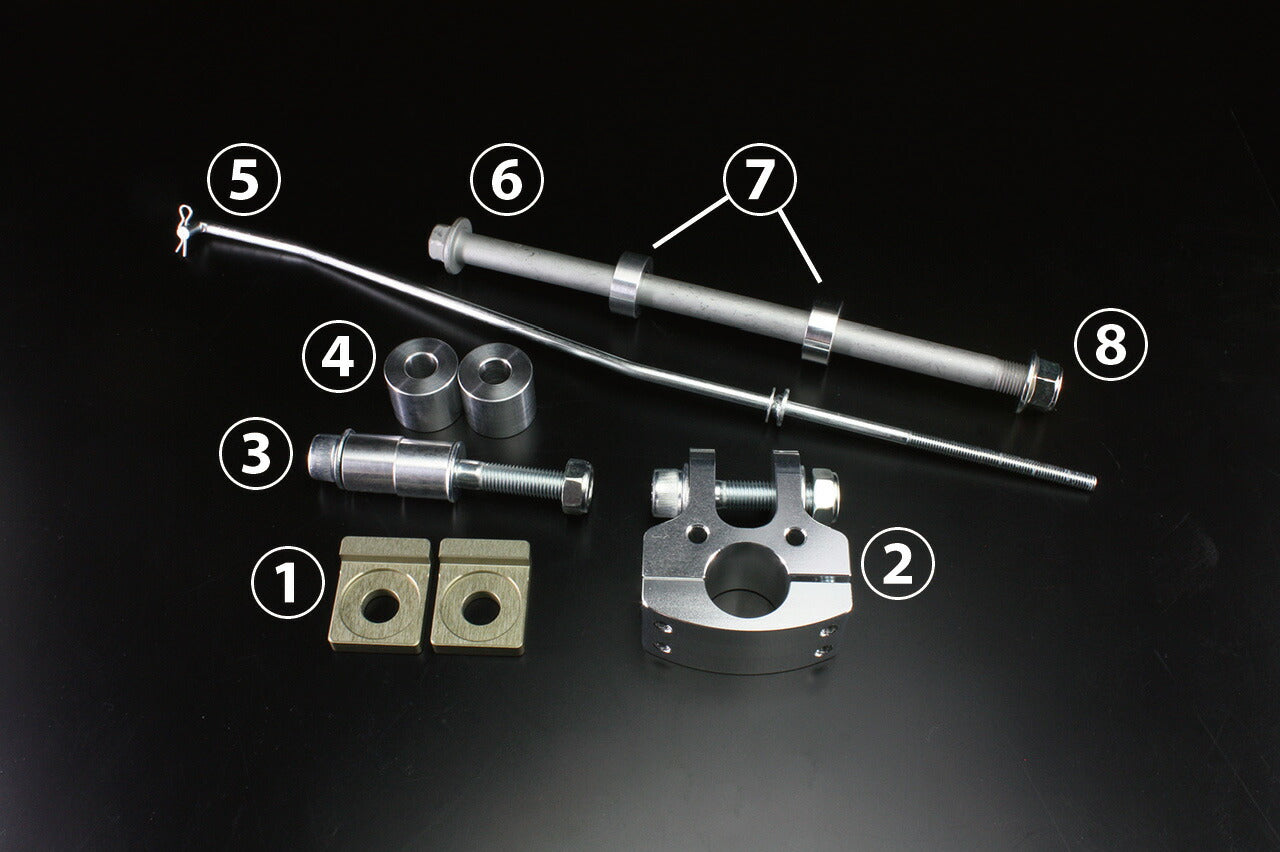

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Frame-side monoshock mount 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washers 2 (repair part number 65090/1 pc per pack)
Collar 17.9mm 2 (repair part number 68104/1 pc per pack)
(4) Seat fixing collar 22mm 2 (repair part number 68133)
(5) Drum brake rod 1 (depending on swingarm length)
(6) Axle shaft 230mm 1 (repair part number 38061)
(7) Axle collar 10mm 2 (repair part number 68134/1 pc per pack)
(8) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J (discs up to 3.5J) and up to 10-inch 4.0J can be installed.
*Only triple square pipes have a chain slider on the bottom as well.
*The Standard Stabilizer Type 2 has a main pipe of 42mm x 32mm (thick pipe). (The regular Standard Stabilizer has a 32mm x 32mm thin pipe specification.)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please be aware.
