Wide swingarm, monoshock, triple square, with stabilizer, buffed, +20cm, Monkey, Gorilla

【G-Craft 90275 Wide Swingarm Monoshock Triple Square Stabilized Buff +20cm Monkey Gorilla】
Monkey Wide Swingarm T/S Mono +20cm Stabilized
The Monkey wide swingarm (for wide hubs) is a swingarm manufactured with a width of 187-190mm.
A special collar is included so that the genuine Monkey hub can be used.
For disc conversion, the 39048 wide rear disc hub can be used.
The triple square pipe swingarm, which uses a strong "H-beam cross-section," is a pipe that boasts over 80% support among users who choose 16cm or more.
When installing 8-4.0J, a G-Craft 4mm offset sprocket for the front and a G-Craft 4mm sprocket spacer for the rear are required.
When installing 10-4.0, a G-Craft 7mm offset sprocket for the front and a G-Craft 8mm sprocket spacer for the rear are required.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

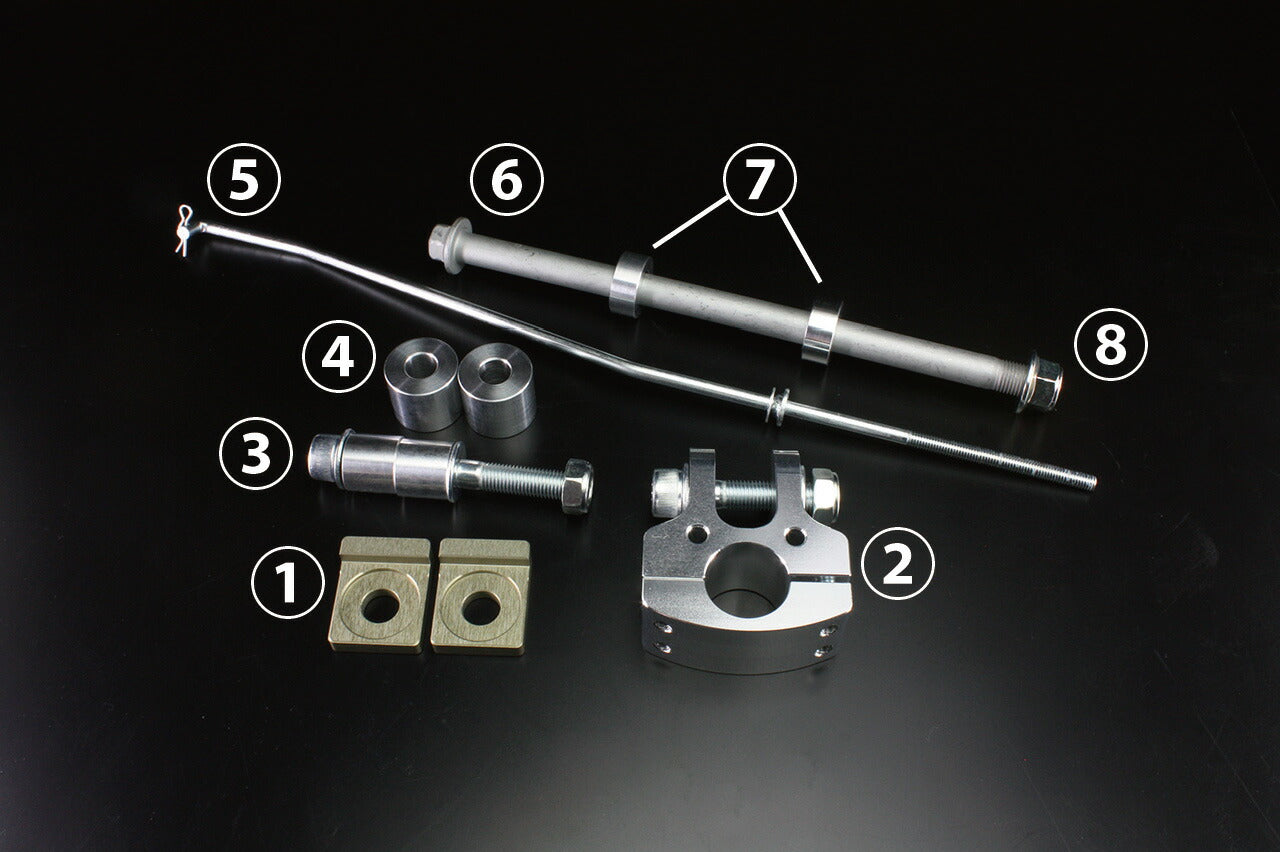

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Frame side monoshock receiver 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
Collar 17.9mm 2 (repair part number 68104/1 pc per pack)
(4) Seat fixing collar 22mm 2 (repair part number 68133)
(5) Drum brake rod 1 (depending on swingarm length)
(6) Axle shaft 230mm 1 (repair part number 38061)
(7) Axle collar 10mm 2 (repair part number 68134/1 pc per pack)
(8) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J (discs up to 3.5J) and 10-inch 4.0J can be installed.
*Only triple square pipes have chain sliders on the bottom as well.
*Standard stabilized Type 2 has a main pipe of 42mm x 32mm (thick pipe). (Normal standard stabilized type has 32mm x 32mm thin pipe specification)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
