Swingarm NSR Standard No Stabilizer Buffed +4cm Monkey R

[G-Craft 90298 Swingarm NSR Standard No Stabilizer Buff +4cm Monkey R]
Monkey R Swingarm NSR STD +4cm No Stabilizer
Swingarm designed to accommodate NSR wheels.
Swingarm width is manufactured at 184-187mm.
Compatible Models
Monkey R
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

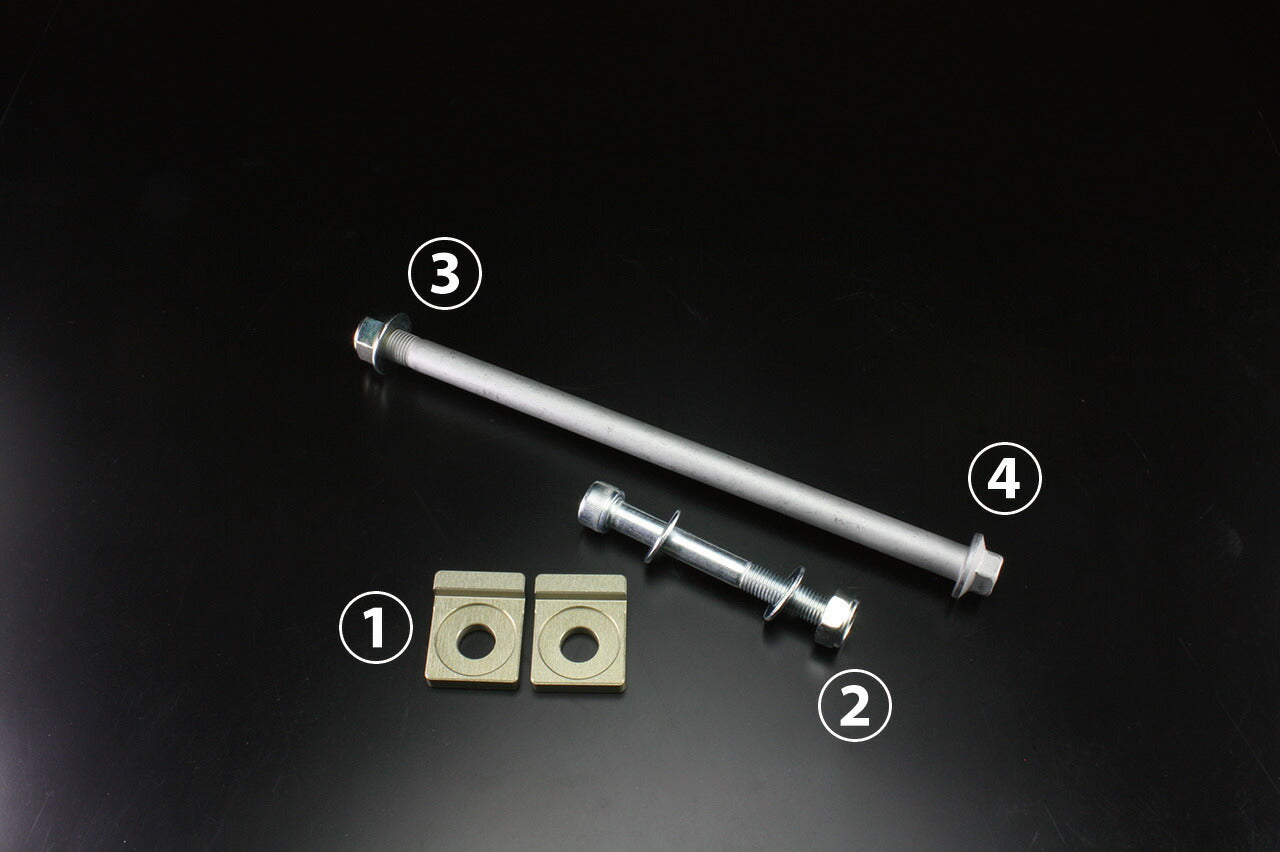

Included Accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Shock mounting bolt set
Bolt 1 (Repair part number 65235)
Nut 1 (Repair part number 65229)
Washer 2 (Repair part number 65090/1 pc)
(3) Axle nut M12 1 (Repair part number 38001)
(4) Axle shaft 230mm 1 (Repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer will be on the bottom.
*Rear shocks are compatible with Monkey R, NSR50/80 normal.
*Part numbers 90302 and 90305 can only be used with tire size 100-65-12 (FMR F65).
*The image is for illustration purposes only; the design and specifications of the products shown may change without notice. Please be aware of this.
