Swingarm NSR Triple Square No Stabilizer Buffed +4cm Monkey R

[G-Craft 90301 Swingarm NSR Triple Square No Stabilizer Buff +4cm Monkey R]
Monkey R Swingarm NSR T/S +4cm No Stabilizer
This swingarm allows the installation of NSR wheels.
The swingarm width is manufactured to be 184-187mm.
Compatible models
Monkey R
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

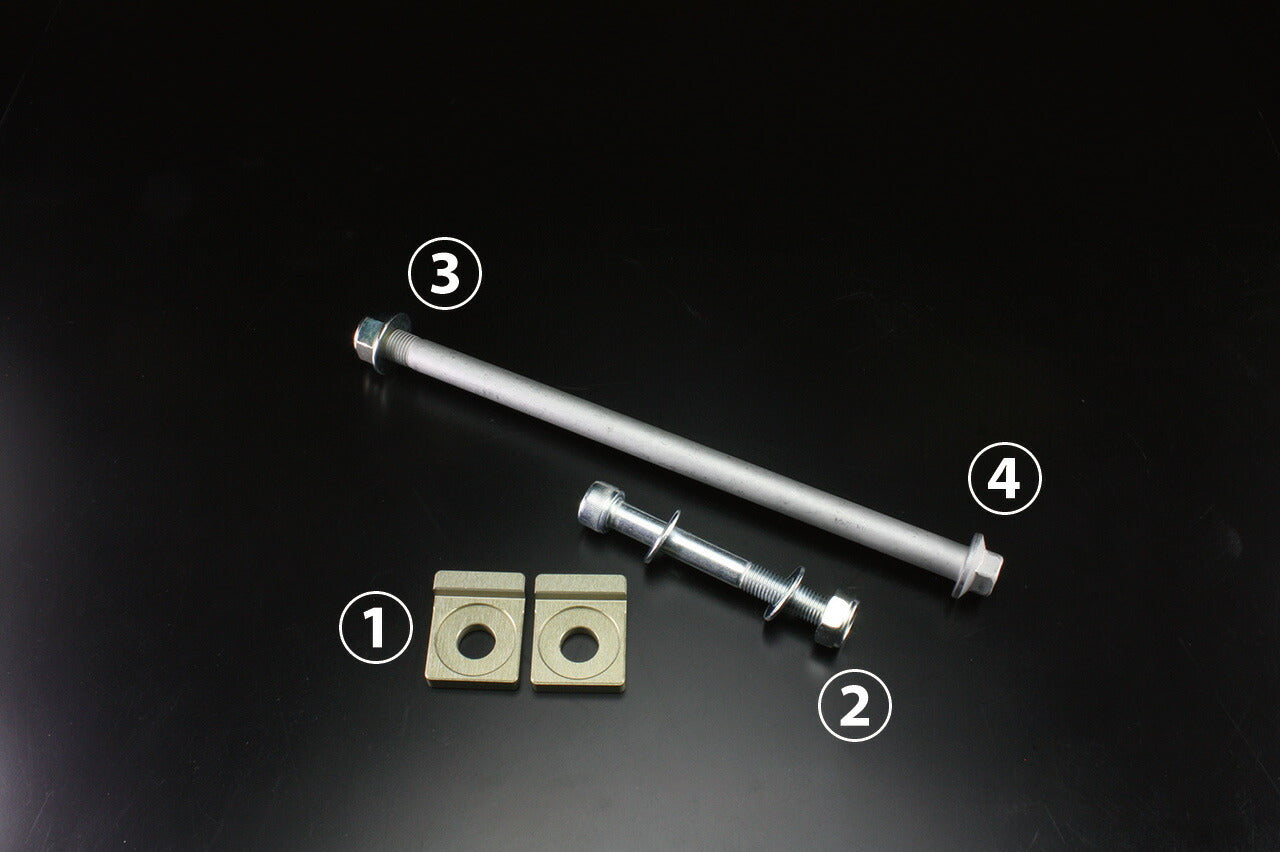

Accessories
(1) Chain adjuster block 1 set (pipe-shape specific)
(2) Shock mounting bolt set
Bolt 1 pc (Repair part no. 65235)
Nut 1 pc (Repair part no. 65229)
Washer 2 pcs (Repair part no. 65090/1 pc per pack)
(3) Axle nut M12 1 pc (Repair part no. 38001)
(4) Axle shaft 230mm 1 pc (Repair part no. 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is located on the lower side.
*Rear shock is compatible with Monkey R and NSR50/80 normal.
*Part number 90302 and 90305 can only be used with tire size 100-65-12 (FMR F65).
*The image is for illustration purposes only. The design and specifications of the products shown may change without prior notice. Thank you for your understanding.
