Swingarm Drum Standard with Stabilizer Buffed +0cm APE50/100

【G-Craft 90337 Swingarm Drum Standard with Stabilizer Buff +0cm APE50/100】
APE50/100 Swingarm Drum STD +0cm with Stabilizer
This swingarm allows you to mount wheels from the APE100 (drum brake model).
The swingarm width is manufactured between 184mm and 187mm.
A torque rod receiver for securing the drum hub is welded on. (A brake stopper is not included on the inside of the swingarm.)
You can convert to disc brakes by using the rear floating kit (part number 33135) and the rear disc hub (part number 39149).
Disc brake conversion is also possible by using the rear floating kit (part number 33135) and NSR50/80 wheels.
Compatible models
APE50/100
Surface treatment: Buff finish
Size: +0cm
Material: 7N01, A5083 material used

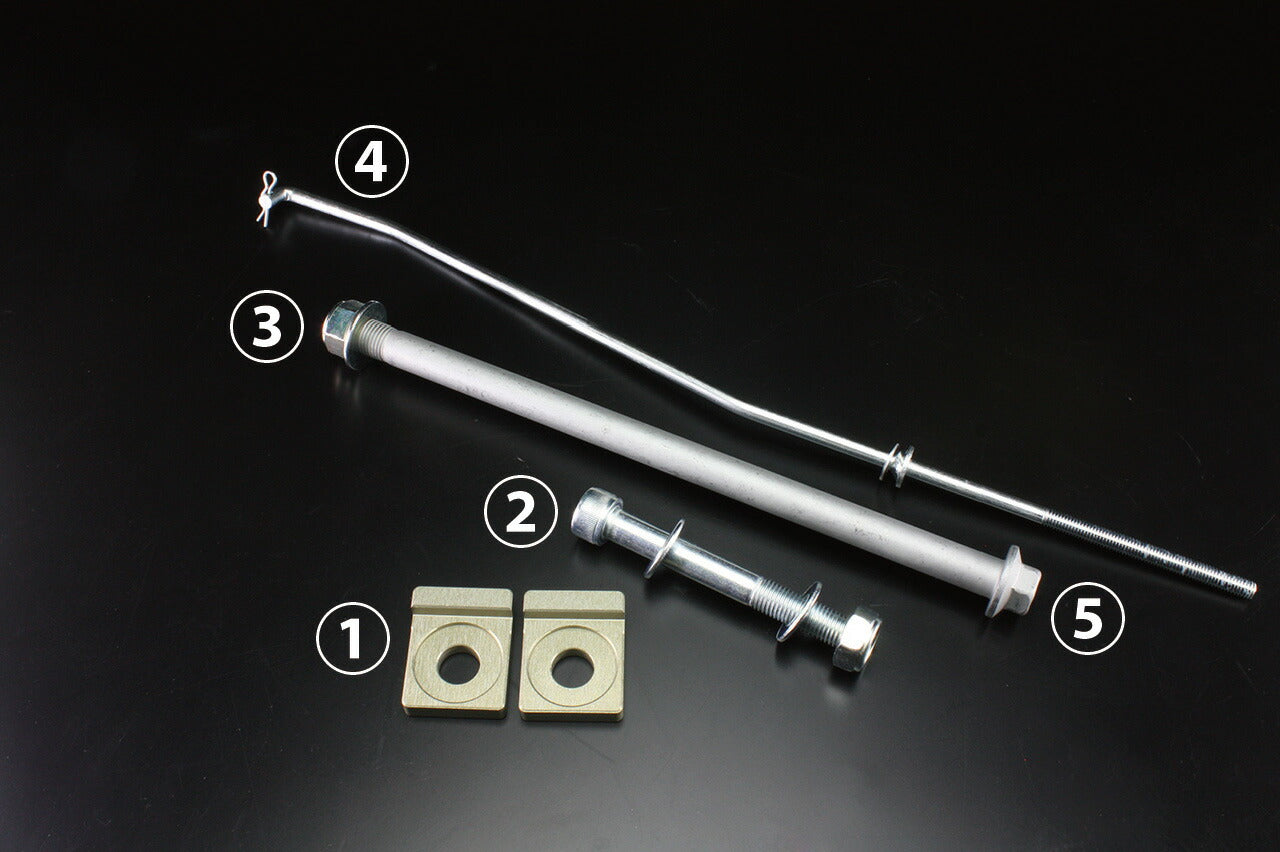

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65242)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
(3) Axle nut M12 1 (repair part number 38001)
(4) Drum brake rod 1 (depending on swingarm length) *Not included for +0cm
(5) Axle shaft 230mm 1 (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the upper side. (Lower stabilizer cannot be manufactured.)
*Compatible with APE genuine rear shock (link type).
*Can be fitted with 12-3.75J aluminum wheels.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware.
