Swingarm Drum Standard with Stabilizer Buffed +4cm APE50/100

【G-Craft 90338 Swingarm Drum Standard with Stabilizer Buff +4cm APE50/100】
APE50/100 Swingarm Drum STD +4cm with Stabilizer
This swingarm allows you to install wheels from the APE100 (drum specification models).
The swingarm width is manufactured between 184-187mm.
A torque rod receiver for securing the drum hub is welded on. (There is no brake stopper on the inside of the swingarm.)
By using part number 33135 rear floating kit and part number 39149 rear disc hub, you can convert to a disc brake system.
Disc conversion is also possible by using part number 33135 rear floating kit and NSR50/80 wheels.
Compatible models
APE50/100
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

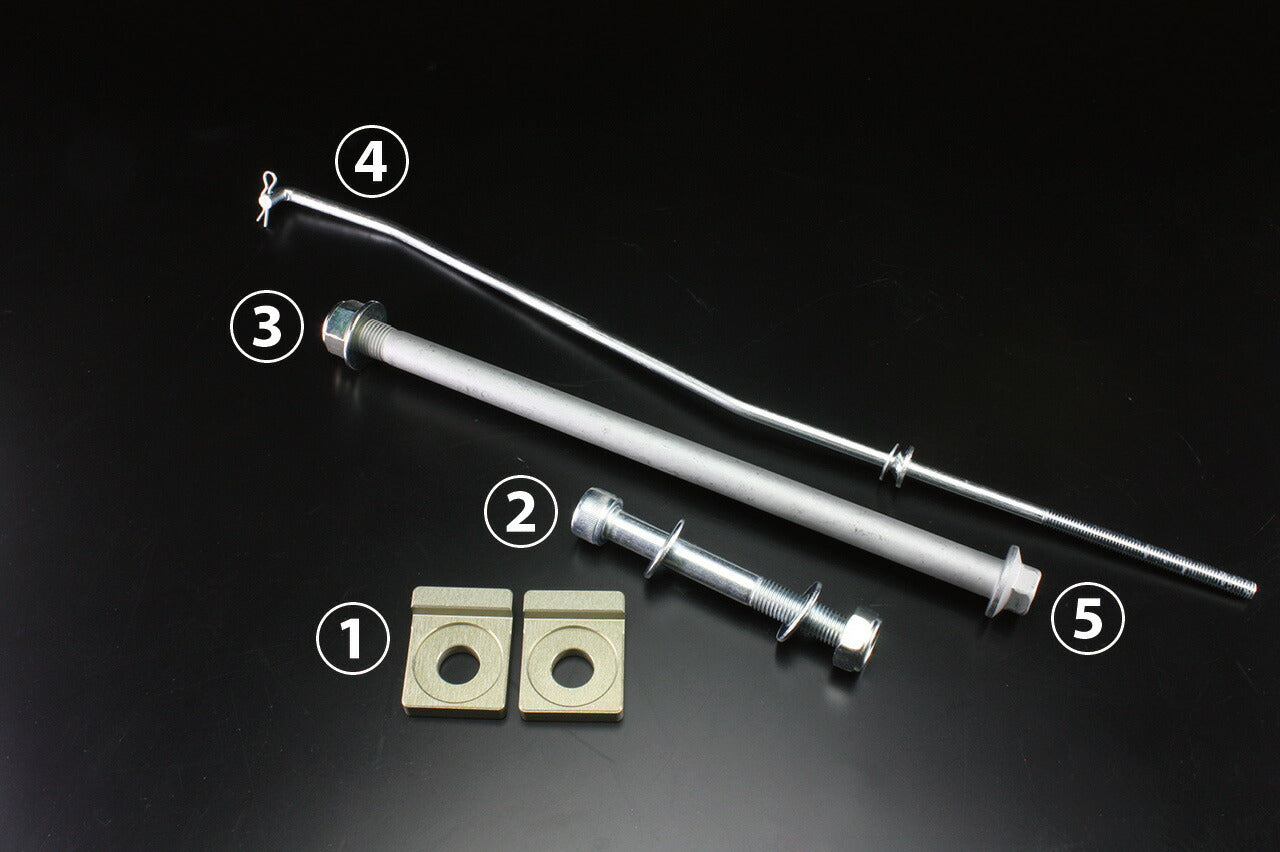

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (Repair part number 65242)
Nut 1 (Repair part number 65229)
Washer 2 (Repair part number 65090/1 pc per pack)
(3) Axle nut M12 1 (Repair part number 38001)
(4) Drum brake rod 1 (according to swingarm length) *Not included with +0cm
(5) Axle shaft 230mm 1 (Repair part number 38061)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the upper side. (Lower stabilizer cannot be manufactured.)
*Rear shock is compatible with APE genuine (link type).
*Can install 12-3.75J aluminum wheels.
*Images are for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please be aware.
