Swingarm NSR (Type D) Drum Shared Triple Square with Stabilizer Buff +4cm APE 50/100

【G-Craft 90375 Swingarm NSR (Type D) for Drum Brakes Triple Square with Stabilizer Buff +4cm Ape 50/100】
Ape 50/100 Swingarm NSR (Type D) for Drum Brakes T/S +4cm with Stabilizer
This swingarm allows you to install NSR50/80 (Type D) wheels and Ape 100 (drum brake specification) wheels.
The swingarm width is manufactured between 184-187mm.
A U-shaped brake stopper is welded on the inside of the swingarm, and a torque rod receiver is welded below the pipe.
● When using the brake stopper
You can convert from drum brake specifications to disc brakes by using caliper support part number 33136 and rear disc hub part number 39149 (discontinued).
Disc brake conversion is also possible by using caliper support part number 33136 and NSR50/80 wheels.
● When using the torque rod receiver
You can convert to disc brakes by using rear floating kit part number 33135 and rear disc hub part number 39149 (discontinued).
Disc brake conversion is also possible by using rear floating kit part number 33135 and NSR50/80 wheels.
■ If the vehicle (frame) is Ape Type D ■
Stabilizer option is available from +4cm.
It cannot be installed if it is 0cm to +2cm due to interference between the stabilizer and the frame.
Installation is possible by cutting or bending the frame (brake fluid master stay).
Compatible models
Ape 50/100
Surface treatment: Buff finish
Size: +4cm
Material: 7N01, A5083 material used

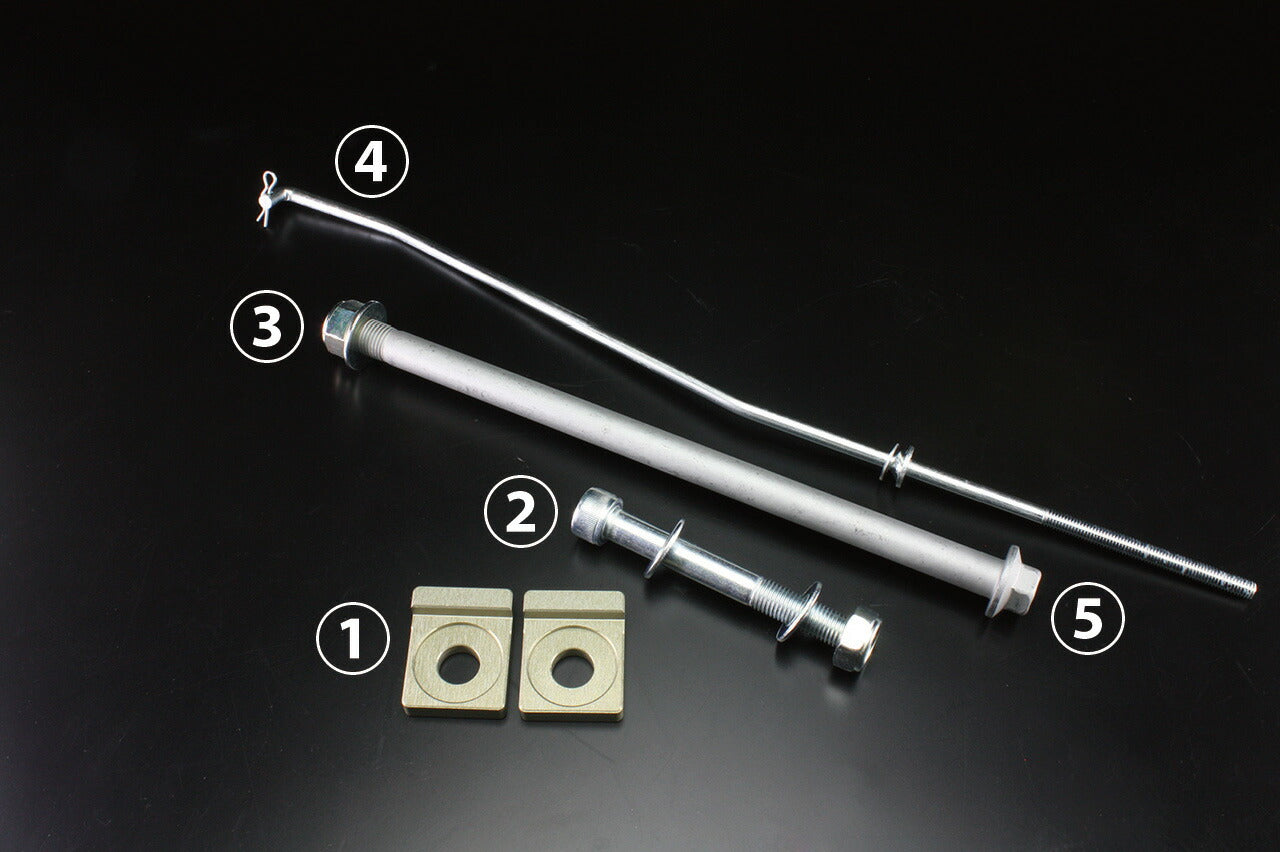

Accessories
(1) Chain adjuster set 1 set (dedicated to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65242)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 piece included)
(3) Axle nut M12 1 (repair part number 38001)
(4) Drum brake rod 1 (depending on the length of the swingarm) *Not included with +0cm
(5) Axle shaft 230mm 1 (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*The stabilizer is on the upper side.
*Rear shock is compatible with Ape genuine (link type).
*12-3.75J aluminum wheels can be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
