Swingarm NSR (Type D) Linkless Standard Stabilizer Buffed +10cm APE50/100

【G-Craft 90385 Swingarm NSR (Type D) Linkless Standard Stabilizer Buff +10cm Ape 50/100】
Ape 50/100 Swingarm NSR (Type D) Linkless STD +10cm Stabilizer
This swingarm can be fitted with NSR50/80 (Type D) wheels.
The swingarm width is manufactured between 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
By using caliper support part number 33136 and rear disc hub part number 39149, drum brake vehicles can be converted to disc brakes.
Disc conversion is possible using caliper support part number 33136 and NSR50/80 wheels.
Compatible models
Ape 50/100
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

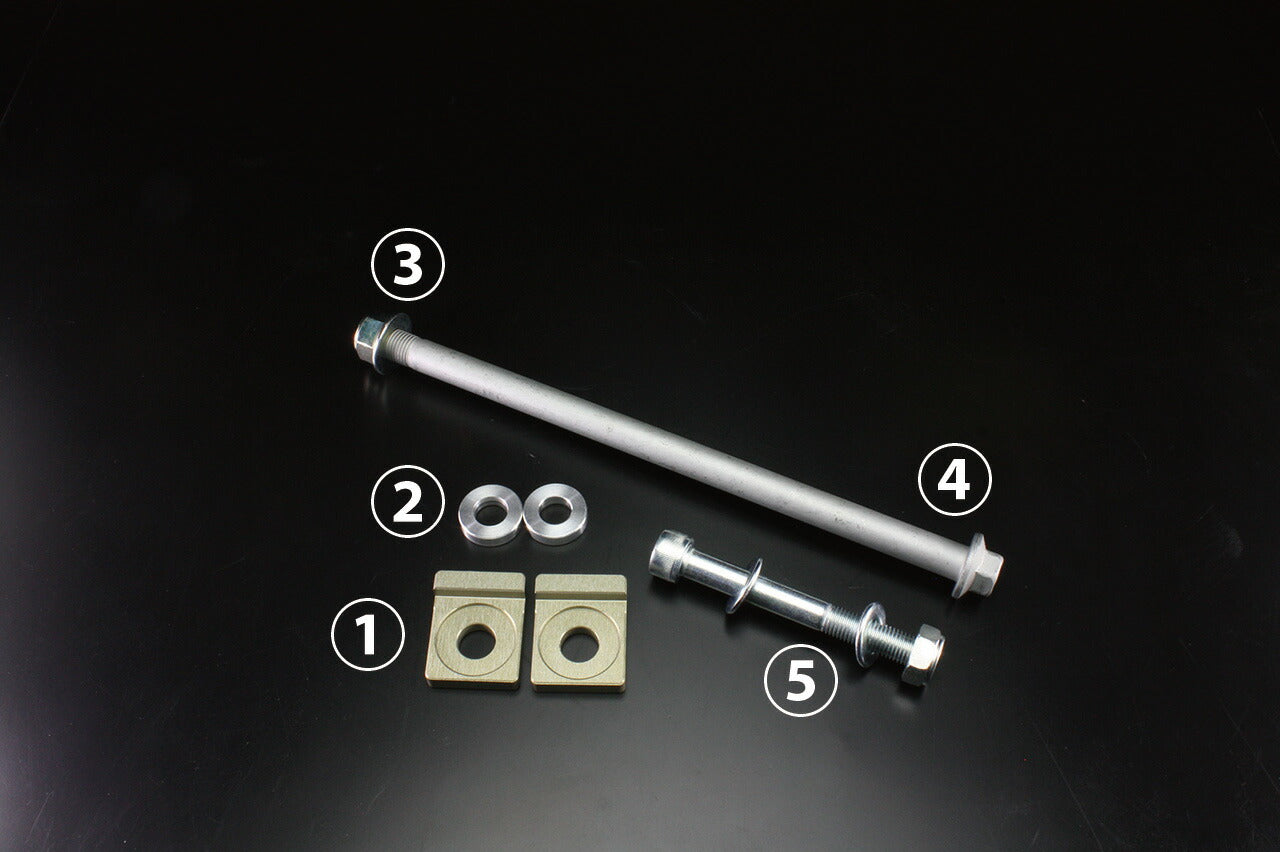

Accessories
(1) Chain adjuster 1 set (specialized for each pipe shape)
(2) Frame side shock mounting collar 5.4mm 2 pieces (repair part number 68139/1 piece)
(3) Axle nut M12 1 piece (repair part number 38001)
(4) Axle shaft 230mm 1 piece (repair part number 38061)
(5) Swingarm side shock mounting bolt set
Bolt 1 piece (repair part number 65235)
Nut 1 piece (repair part number 65229)
Washer 2 pieces (repair part number 65090/1 piece)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Ape normal drum hubs cannot be used.
*The basic stabilizer will be on the bottom in the case of linkless.
*Rear shocks are compatible with NSR50/80. (Ape normal cannot be used)
*12-3.75J aluminum wheels can be installed.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware.
