Swingarm Link-type Standard Stabilized Buffed +6cm XR50/100 Motard

[G-Craft 90414 Swingarm Linkage Standard with Stabilizer Buff +6cm XR50/100 Motard]
XR50/100 Motard Swingarm STD +6cm with Stabilizer Linkage Type
This swingarm can be fitted with wheels for XR50/100 Motard and NSR50/80 (Ape Type D).
The swingarm width is manufactured between 184 and 187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
Compatible models
XR50/100 Motard
Surface treatment: Buff finish
Size: +6cm
Material: 7N01, A5083 material used

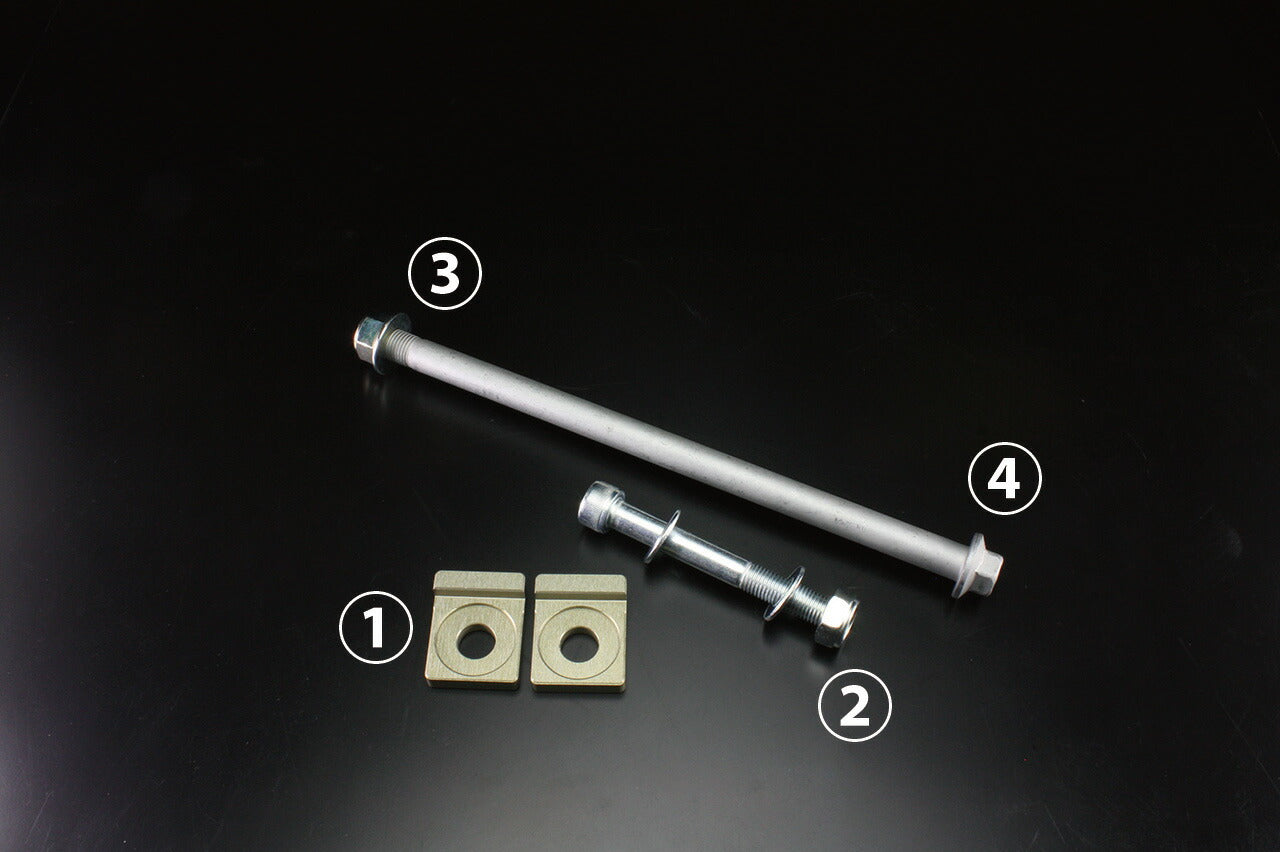

Accessories
(1) Chain puller block 1 set (specific to each pipe shape)
(2) Bolt set for shock mounting
Bolt 1 (Repair part number 65296)
Nut 1 (Repair part number 65229)
Washers 2 (Repair part number 65090/1 pc per pack)
(3) Axle nut M12 1 (Repair part number 38001)
(4) Axle shaft 230mm 1 (Repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swing Arm) are abbreviations.
*Rear shock is compatible with XR Motard genuine (linkage type).
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
