Swingarm Link Type Triple Square Stabilizer Buffed +0cm XR50/100 Motard

[G-Craft 90415 Swingarm Link Type Triple Square with Stabilizer Buff +0cm XR50/100 Motard]
XR50/100 Motard Swingarm T/S +0cm with Stabilizer Link Type
This swingarm allows you to mount XR50/100 Motard and NSR50/80 (Ape Type D) wheels.
The swingarm width is manufactured to be 184-187mm.
A U-shaped brake stopper is welded to the inside of the swingarm.
Compatible models
XR50/100 Motard
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

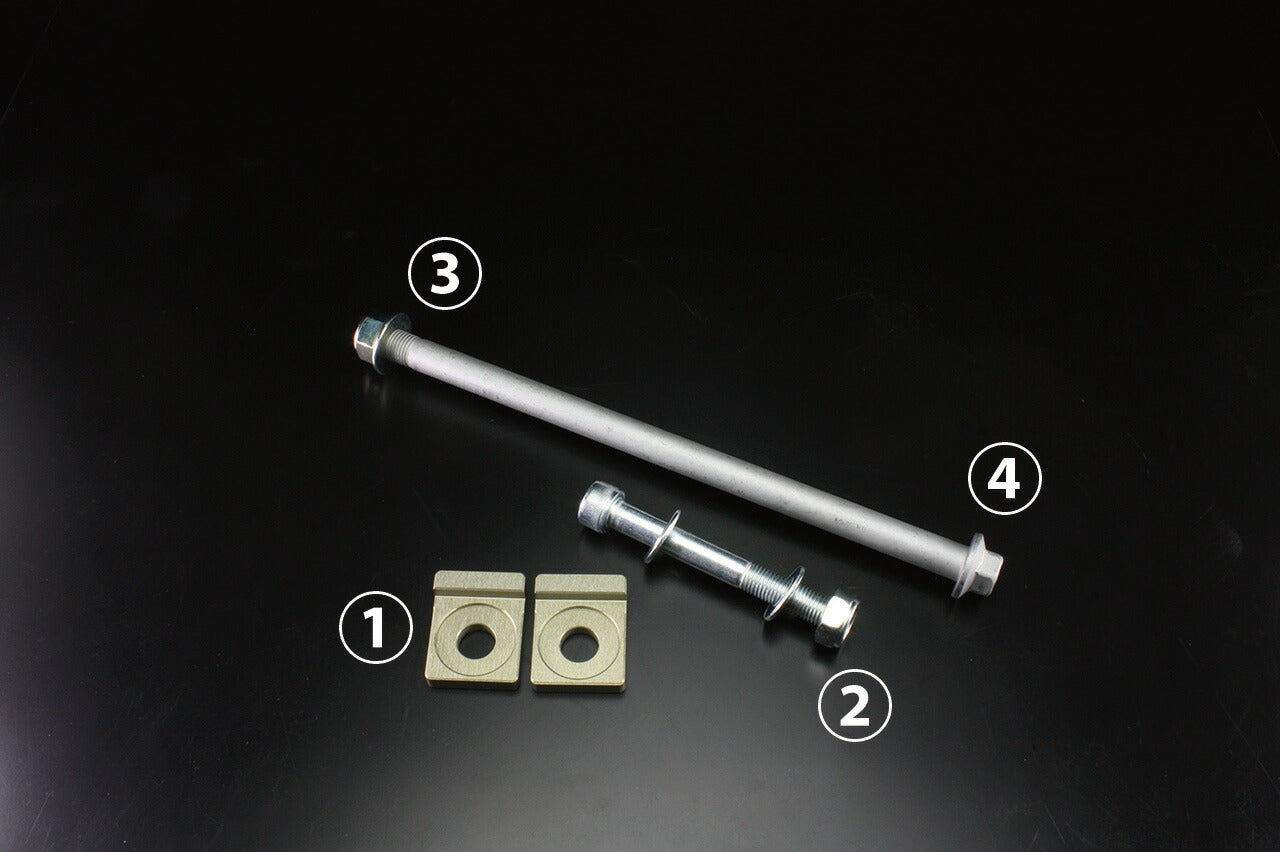

Included parts
(1) Chain puller blocks 1 set (pipe shape specific)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65296)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
(3) Axle nut M12 1 (repair part number 38001)
(4) Axle shaft 230mm 1 (repair part number 38061)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Rear shock is compatible with XR Motard genuine (link type).
*The image is for illustration purposes only, and the design and specifications of the products listed are subject to change without notice. Please be aware.
