Swingarm Twin Shock Standard Stabilizer Type 2 Buff +10cm Monkey Gorilla

【G-Craft 90441 Swingarm Twin Shock Standard with Stabilizer Type 2 Buff +10cm Monkey Gorilla】
Monkey Swingarm STD Twin +4cm with Stabilizer Type 2
This swingarm for Monkeys is a standard width (for Monkey hubs) swingarm, manufactured to the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the rear disc hub 39053.
This swingarm is compatible with both drum and disc brakes.
It is G-Craft's most popular swingarm due to its wide range of length options.
Especially, the triple square pipe swingarm, which uses a strong "eye-shaped cross-section," is supported by over 80% of users who choose 16cm or longer.
Compatible models
Monkey, Gorilla
Type: 2
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

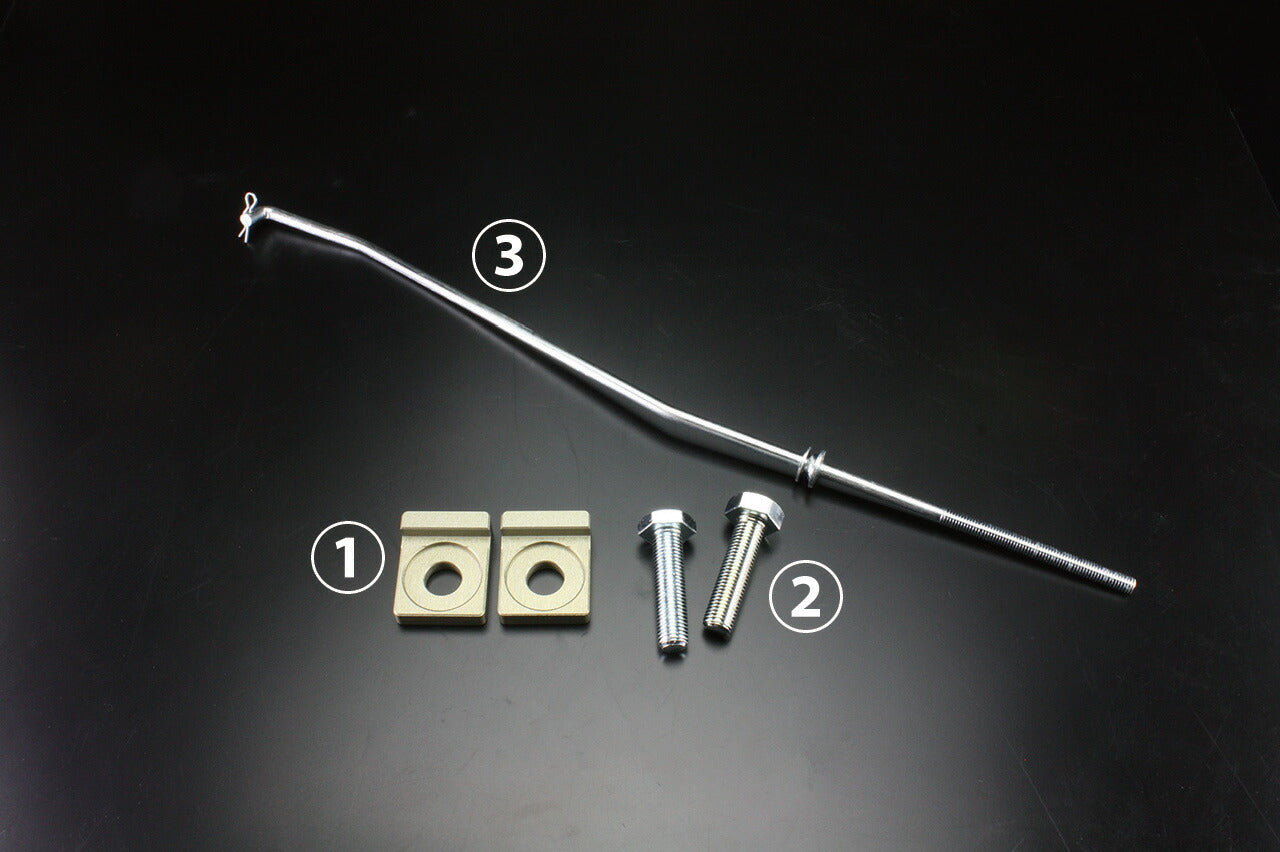

Accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Twin shock suspension receiver bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
*Not included with +0cm, +2cm.
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (If converting to disc with 8 inches 4.0J, please use dedicated rear hub part number 39099)
*10 inches up to 3.5J can be installed (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom as well.
*The Standard Stabilizer Type 2 has a main pipe that is 42mm x 32mm thick pipe. (Normal Standard Stabilizer type is 32mm x 32mm thin pipe specification)
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The axle shaft uses the genuine Monkey (under-head length 210mm).
*Triple Square and Triple Square Mini are equipped with pivot bearing specifications as standard.
*For Triple Square +4cm, stabilizer addition processing is not possible (due to interference between the center pipe and frame)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
