Swingarm Monoshock Standard Stabilizer Equipped 6-inch Specific Type 2 Buff +10cm Monkey Gorilla

【G-Craft 90444 Swingarm Monoshock Standard with Stabilizer for 6-inch only Type 2 Buff +10cm Monkey Gorilla】
Monkey Swingarm STD Mono +10cm with Stabilizer Type 2 (for 6-inch only)
The Monkey swingarm standard width (for Monkey hub) is a swingarm manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or you can use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
It offers a wide selection of lengths and is G-Craft's most popular swingarm.
Especially the triple square pipe swingarm, which adopts the highly strong "eye-shaped cross-section," is supported by over 80% of users who choose 16cm or longer.
Compatible models
Monkey, Gorilla
Type: 2
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

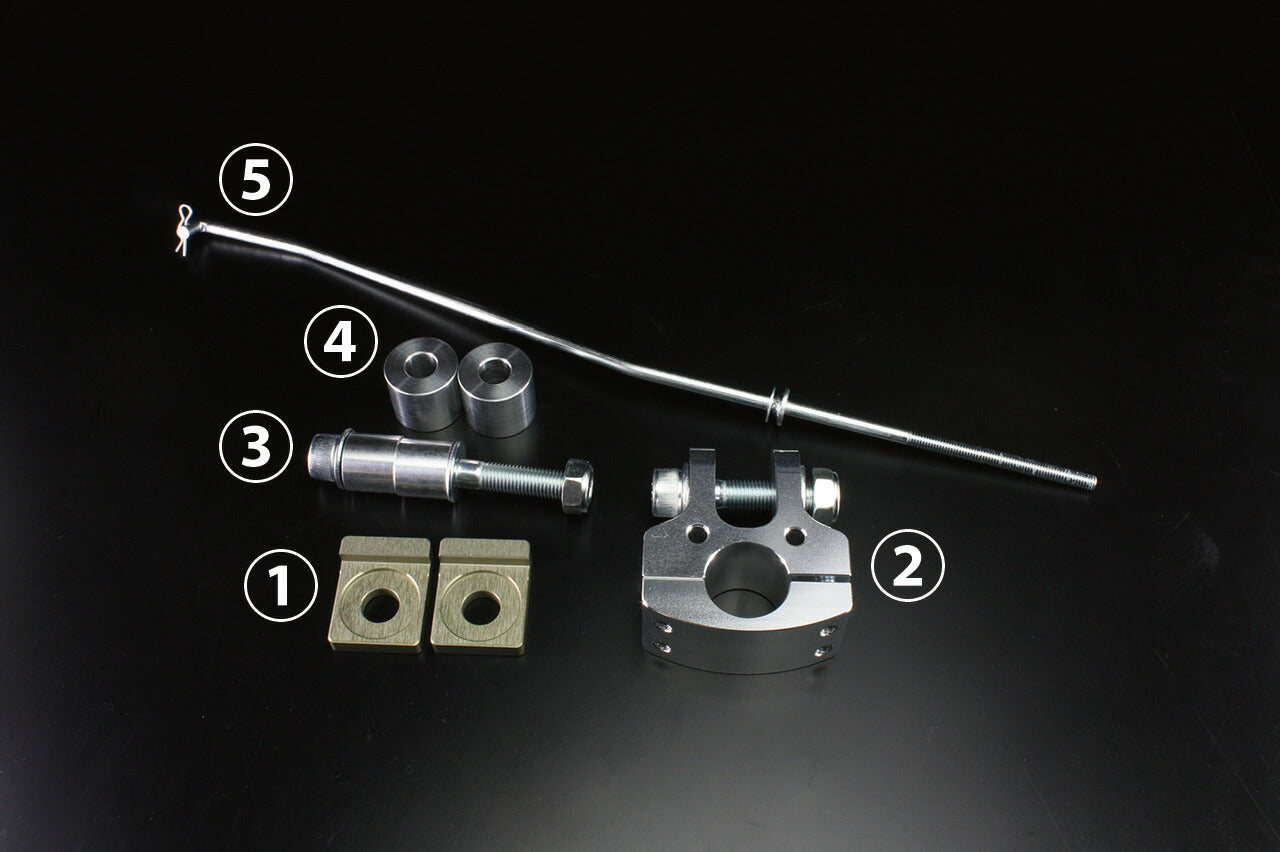

Included parts
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Frame side monoshock receiver 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090 / 1 pc)
Collar 17.9mm 2 (repair part number 68104 / 1 pc)
(4) Seat fixing collar 22mm 2 (repair part number 68133 / 1 pc)
(5) Drum brake rod 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swing Arm) are abbreviations.
*Up to 8 inches 4.0J (discs up to 3.5J), 10 inches up to 3.5J can be installed (requires +4cm or more)
*Only triple square pipes have chain sliders on the bottom as well.
*The Standard Stabilizer Type 2 has a main pipe of 42mm x 32mm thick pipe. (The regular Standard Stabilizer has a 32mm x 32mm thin pipe specification)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
