Wide Swingarm, Monoshock, Standard, with Stabilizer, Type 2, Buff, +20cm, Monkey, Gorilla

【G-Craft 90451 Wide Swingarm Monoshock Standard with Stabilizer Type 2 Buff +20cm Monkey Gorilla】

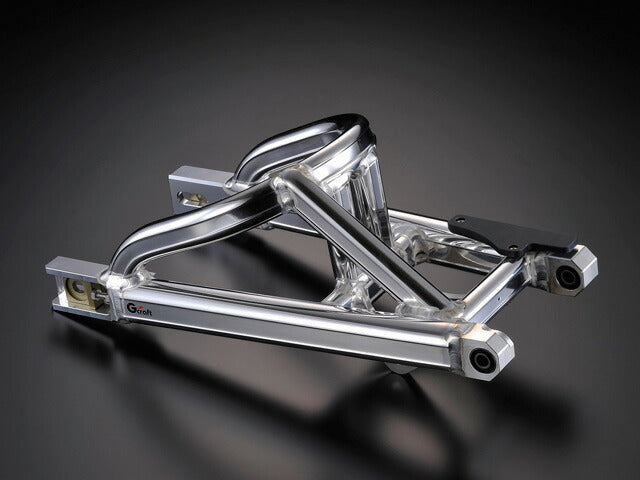

Monkey Wide Swingarm STD Mono +20cm with Stabilizer Type 2
This wide swingarm (for wide hubs) for Monkey is manufactured with a width of 187-190mm.
It comes with a special collar so that the genuine Monkey hub can be used.
For disc conversion, you can use the 39048 wide rear disc hub.
For disc specifications, the brake stopper length needs to be 25mm.
The triple square pipe swingarm, which uses a strong "I-beam cross-section," is supported by over 80% of users who choose 16cm or longer.
When installing 8-4.0J, a G-Craft 4mm offset sprocket for the front and a G-Craft 4mm sprocket spacer for the rear are required.
When installing 10-4.0J, a G-Craft 7mm offset sprocket for the front and a G-Craft 8mm sprocket spacer for the rear are required.
Compatible models
Monkey, Gorilla
Type: 2
Surface treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used

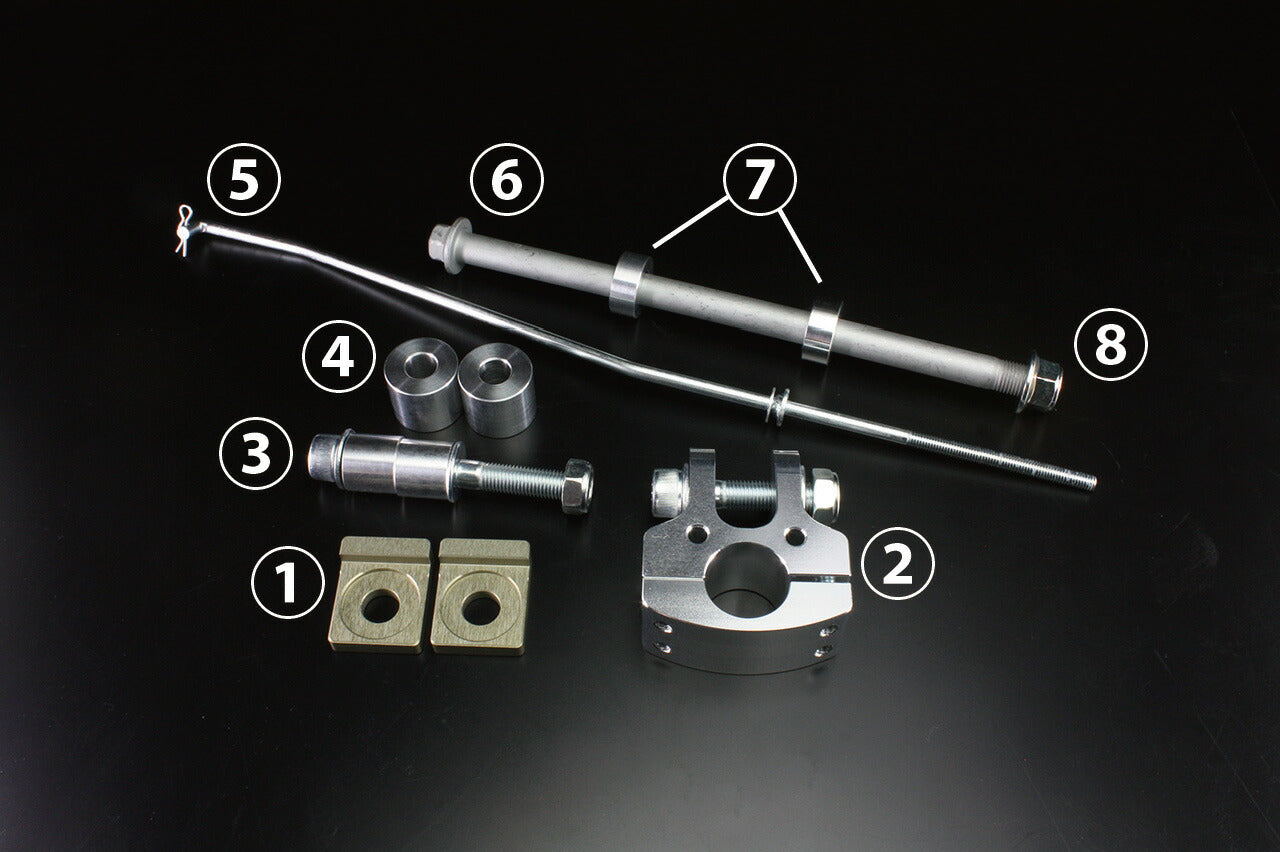

Included accessories
(1) Chain tensioner block 1 set (specific to each pipe shape)
(2) Frame-side monoshock mount 1 set (repair part number 30033)
(3) Shock mounting bolt set
Bolt 1 (repair part number 65243)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
Collar 17.9mm 2 (repair part number 68104/1 pc per pack)
(4) Seat fixing collar 22mm 2 (repair part number 68133)
(5) Drum brake rod 1 (according to swingarm length)
(6) Axle shaft 230mm 1 (repair part number 38061)
(7) Axle collar 10mm 2 (repair part number 68134/1 pc per pack)
(8) Axle nut M12 1 (repair part number 38001)
Notes

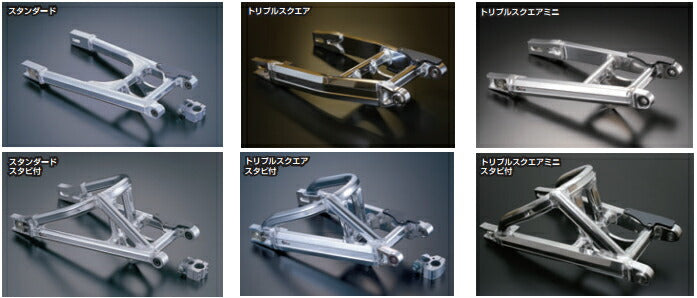

*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (disc up to 3.5J) and 10 inches up to 4.0J can be installed.
*Only triple square pipes have a chain slider on the bottom.

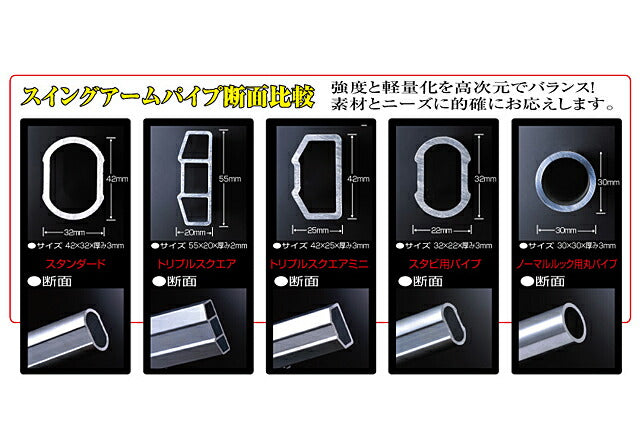

*The Standard with Stabilizer Type 2 has a main pipe of 42mm x 32mm thick pipe. (The regular Standard with Stabilizer has a 32mm x 32mm thin pipe specification.)
*Please use genuine NSR50/80 rear shocks.
*Ohlins TTX cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
