Super Wide Swingarm, Twin Shock, Standard, With Stabilizer, Buffed, +16cm, Monkey, Gorilla

【G-Craft 90456 Super Wide Swingarm Twin Shock Standard with Stabilizer Buff +16cm Monkey Gorilla】
Monkey Super Wide S/A STD Twin +16cm with Stabilizer
This is the widest swingarm (207-210mm) for Monkeys that can accommodate 5.5J wide wheels.
Compared to the stock Monkey swingarm, it is 20mm wider on each side.
By installing the 39419 20mm sprocket spacer, you can use the stock Monkey hub or a wide disc rear hub.
This swingarm is compatible with both drum and disc brakes.
There are two types available: one that uses the 30047 super wide shock mount and a lower-cost type that does not use the shock mount.
■If you want to change from drum to disc specifications■
You can change the specifications by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

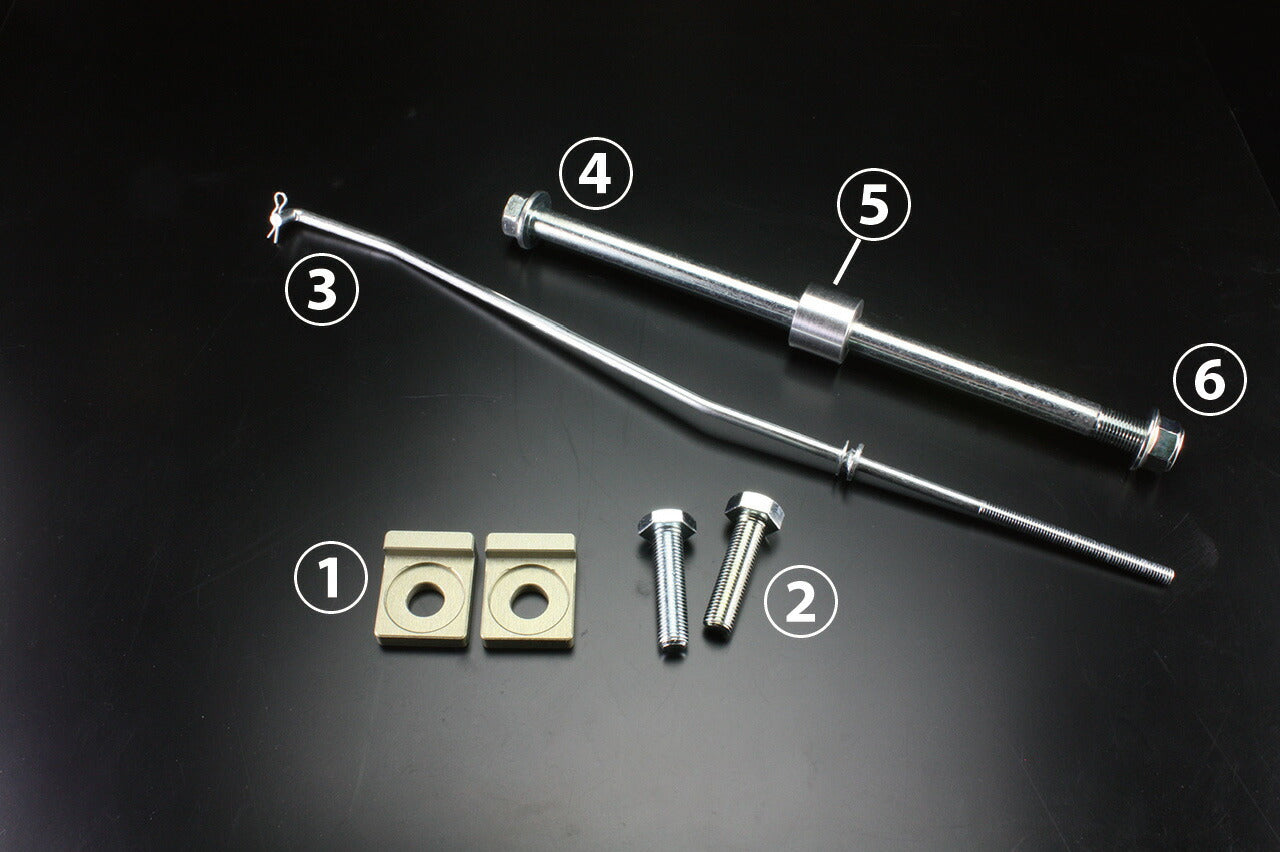

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock mount bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, the 30102 Stand Holder Type 2 is required for swingarms with a stabilizer.
*Only Triple Square pipes have a chain slider on the bottom as well.
*The brake switch stay may interfere due to individual differences in the vehicle body. In that case, bend the brake switch stay and install it after ensuring the necessary clearance for operation.
*Triple Square has a bearing specification at the pivot section as standard.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
