Super Wide Swingarm, Twin Shock, Triple Square, No Stabilizer, Buffed, +10cm, Monkey/Gorilla

【G-Craft 90458 Super Wide Swingarm Twin Shock Triple Square No Stabilizer Buff +10cm Monkey Gorilla】
Monkey Super Wide S/A T/S Twin +10cm No Stabilizer
This is a swingarm for Monkey, with a maximum width (207-210mm) that allows for the installation of a 5.5J wide wheel.
It is 20mm wider on each side compared to the genuine Monkey swingarm.
By installing the 39419 20mm sprocket spacer, you can use the genuine Monkey hub or a wide disc rear hub.
This swingarm is compatible with both drum and disc brakes.
There are two types available: one that uses the 30047 Super Wide Suspension Mount and a lower-cost type that does not use a suspension mount.
■If you want to change from drum specifications to disc specifications■
You can change the specifications by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

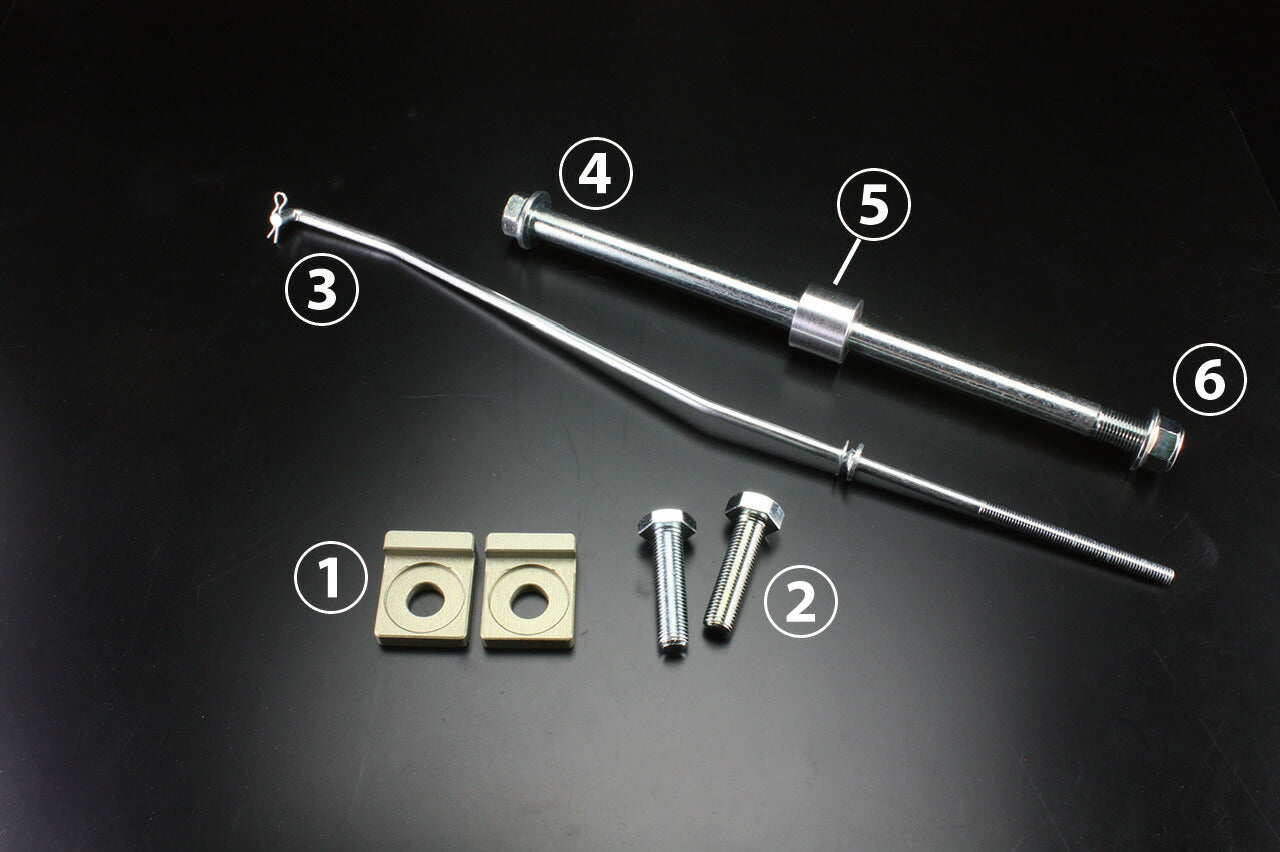

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock suspension mount bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, the 30102 Stand Holder Type 2 is required for swingarms with stabilizers.
*Only Triple Square pipes have chain sliders on the bottom.
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*Triple Square comes standard with a bearing specification at the pivot section.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
