NSR Swingarm Twin Shock Standard with Stabilizer Type 2 Buff +20cm Monkey Gorilla

【G-Craft 90483 NSR Swingarm Twin Shock Standard with Stabilizer Type 2 Buff +20cm Monkey Gorilla】
Monkey NSR Swingarm STD Twin +20cm with Stabilizer Type 2
This swingarm allows you to install NSR50/80 wheels on a Monkey/Gorilla.
The swingarm width is 184-187mm.
It is possible to convert your Monkey to 12 inches using 12-inch wheels from an NSR50/80.
You can choose between twin shock and monoshock types.
Compatible models:
Monkey, Gorilla
Type: 2
Surface treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

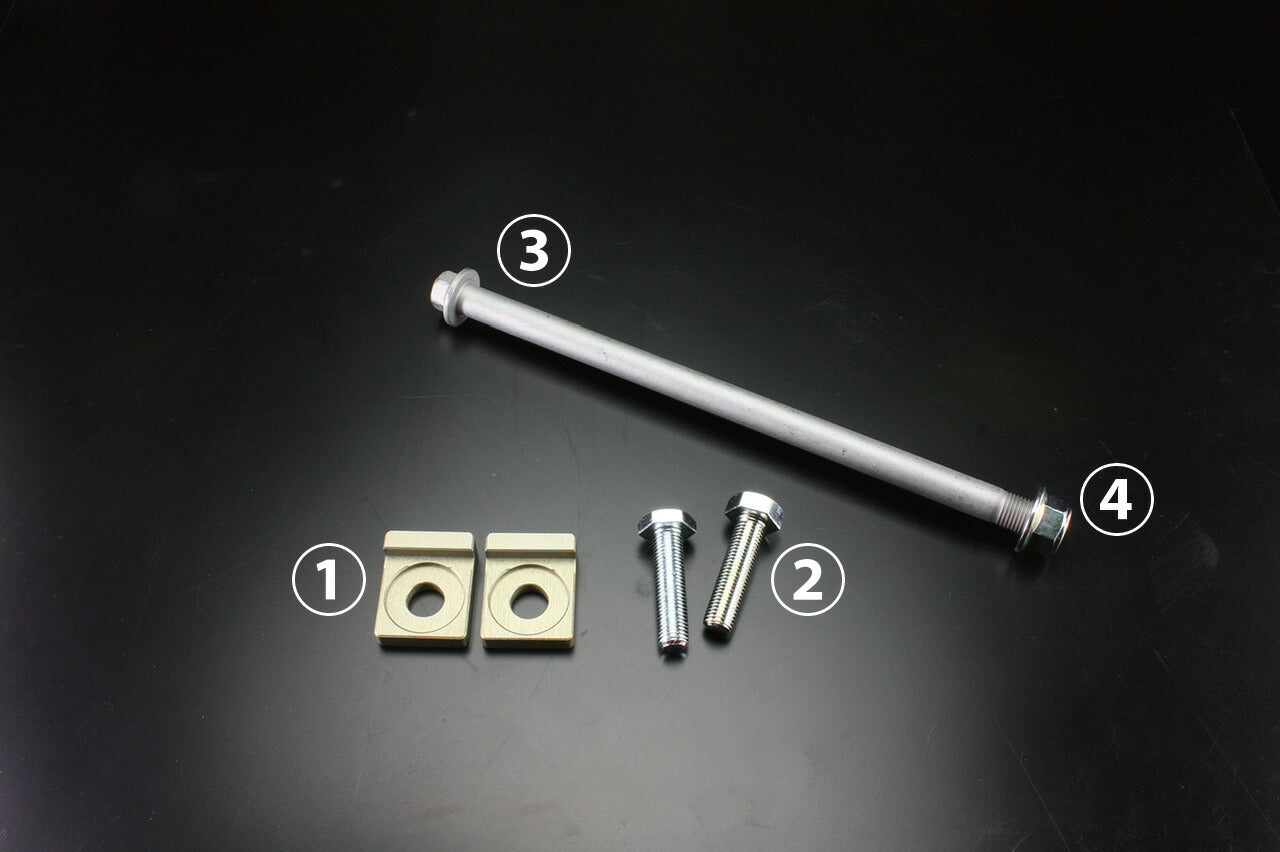

Accessories:
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock suspension receiver bolt 1 set
(3) Axle shaft 230mm 1 piece (repair part number 38061)
(4) Axle nut M12 1 piece (repair part number 38001)
Notes:
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft 7mm front offset sprocket is required.
*For twin shock applications, the chain-side suspension should be mounted further inward to clear the chain line.
*Only triple square pipes have chain sliders on the bottom as well.
*Due to individual differences in vehicle bodies, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
