Swingarm Twin Shock Standard with Stabilizer Type 2 Buff +20cm Monkey Gorilla

【G-Craft 90487 Swingarm Twin Shock Standard with Stabilizer Type 2 Buff +20cm Monkey Gorilla】
Monkey Monkey R Swingarm STD Twin +20cm with Stabilizer Type 2
This swingarm allows you to install Monkey R wheels on a Monkey/Gorilla.
The swingarm width is manufactured to 188-191mm.
You can convert your Monkey to 10 inches using 10-inch Monkey R wheels.
Compatible Models
Monkey, Gorilla
Type: 2
Surface Treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

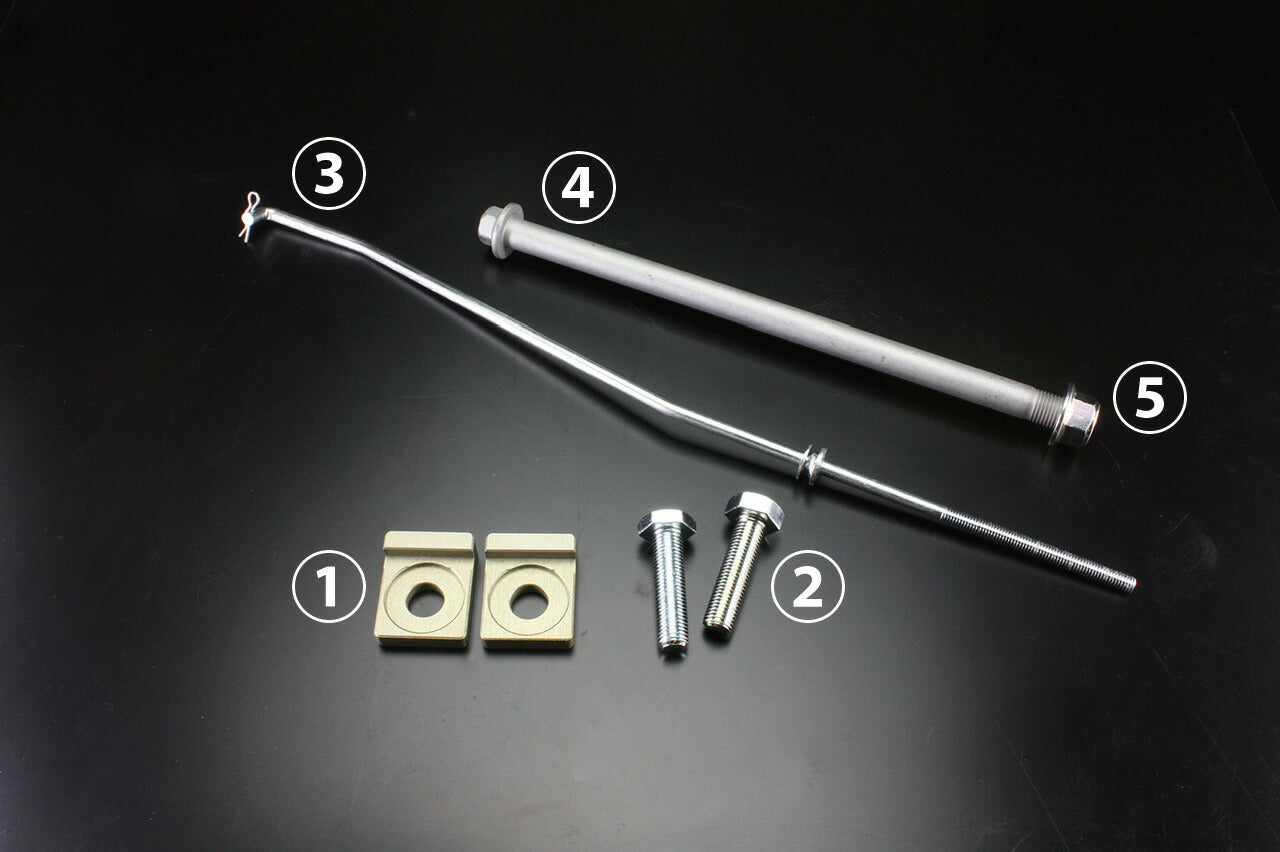

Accessories
(1) Chain tensioner 1 set (pipe shape specific)
(2) Twin shock mount bolts 1 set
(3) Drum brake rod 1 (according to swingarm length)
(4) Axle shaft 230mm 1 (Repair part number 38061)
(5) Axle nut M12 1 (Repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*When installing wheels, a G-Craft front offset sprocket 7mm is required.
*Only the Triple Square pipe has chain sliders on the bottom as well.
*Due to individual differences between vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay and install it after ensuring the necessary clearance for operation.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
