5.5J Swingarm Drum Standard No Stabilizer Buffed +4cm Dax Chaly

【G-Craft 90493 5.5J Swingarm Drum Standard No Stabilizer Buff +4cm Dax Chaly】
Dax, Chaly 5.5J Swingarm Drum STD +4cm No Stabilizer
The Dax/Chaly Super Wide Swingarm is designed to accommodate 10-inch 5.5J wide wheels, with an inner swingarm width of 207mm, which is 40mm wider than the stock width (167mm).
It is 20mm wider than the wide swingarm (187mm), making it the widest swingarm among G-Craft products.
The suspension mounts are bent outwards to prevent the suspension from forming an "A" shape, and are designed to have the suspension attach to the inside of the mounts.
Compatible models
Dax, Chaly
Surface treatment: Buff finish
Size: +4cm
Material: 7N01, A5083 material used

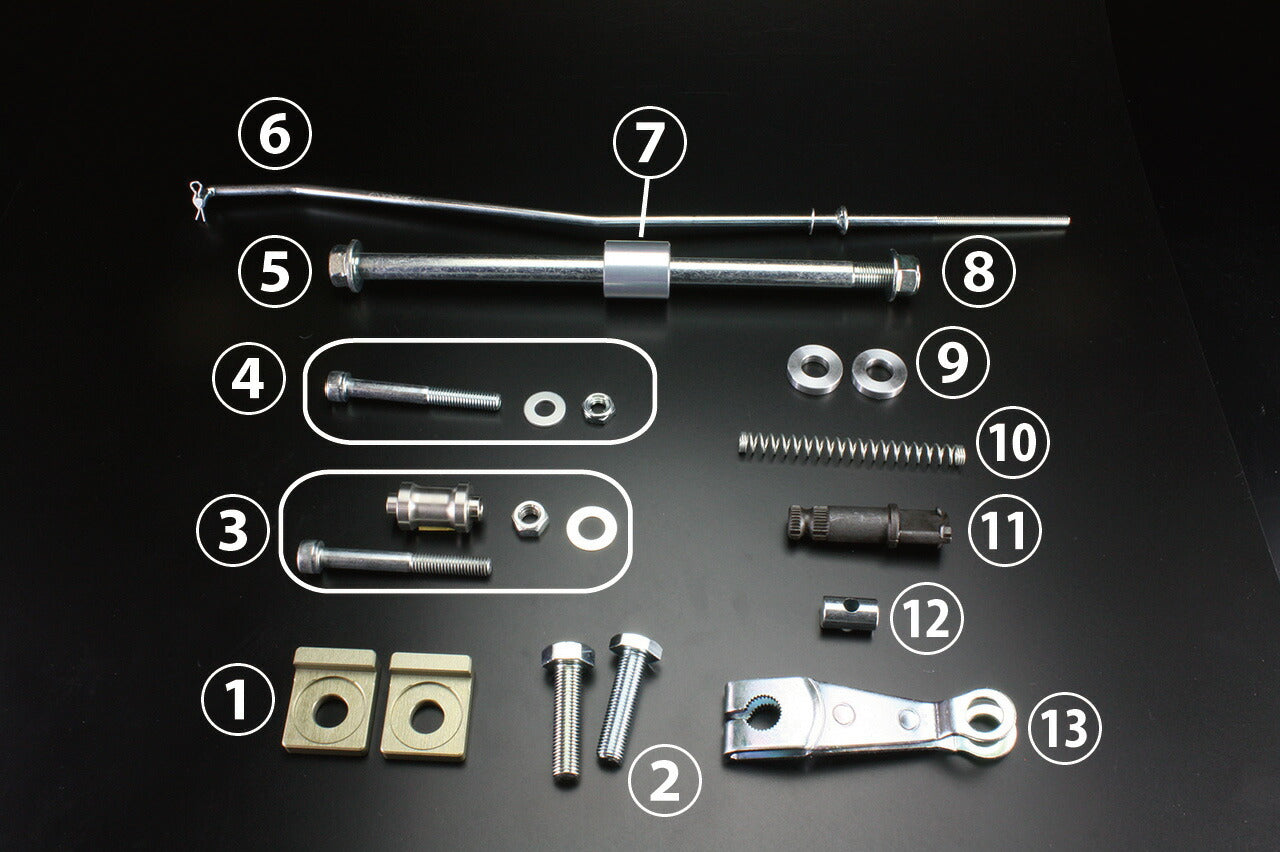

Included parts
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Twin shock suspension mount bolts 1 set
(3) Torque arm fixing bolt (brake panel side)
Bolt 1 pc (repair part no. 65050)
Dedicated collar 1 pc (repair part no. 607092)
Nut 1 pc (repair part no. 65085)
Shim M10 1 pc (repair part no. 693371)
(4) Torque arm fixing bolt (swingarm side)
Bolt 1 pc (repair part no. 690118)
Thin nut 1 pc (repair part no. 694033)
Washer 1 pc (repair part no. 65089)
(5) Axle shaft 250mm 1 pc (repair part no. 38053)
(6) Drum brake rod 1 pc (depending on swingarm length) *Not included for +0cm, +2cm
(7) Axle collar 29mm 1 pc (repair part no. 607091)
(8) Axle nut M12 1 pc (repair part no. 38001)
(9) Frame side suspension collars 2 pcs (repair part no. 631453/1 pc per pack)
(10) Brake rod spring 1 pc (repair part no. 607094)
(11) Brake arm cam 1 pc (repair part no. 607093)
(12) Brake arm joint boss 1 pc (repair part no. 607095)
(13) Brake arm 1 pc (repair part no. 30035)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Only Triple Square pipes have a chain slider on the bottom.
*Cannot be manufactured with a stabilizer.
*Specifically designed for G-Craft Dax 10-inch 5.5J wheels.
*Installation requires G-Craft front offset sprocket 20mm and sprocket spacer 20mm.
*Recommended tire: Michelin S1 130/70-10
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware of this.
