5.5J Swingarm Drum Triple Square No Stabilizer Buffed +0cm Dax Chaly

【G-Craft 90495 5.5J Swingarm Drum Triple Square No Stabilizer Buffed +0cm Dax Chaly】
Dax, Chaly 5.5J Swingarm Drum T/S +0cm No Stabilizer
The Dax/Chaly Super Wide Swingarm is designed to accommodate 10-inch 5.5J wide wheels, with an inner swingarm width of 207mm, which is 40mm wider than the genuine width (167mm).
This is 20mm wider than the wide swingarm (187mm) and is the widest among G-Craft swingarms.
The suspension mounts are bent outwards to prevent the suspension from splaying, and the suspension is designed to attach to the inside of the suspension mount.
Compatible models
Dax, Chaly
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

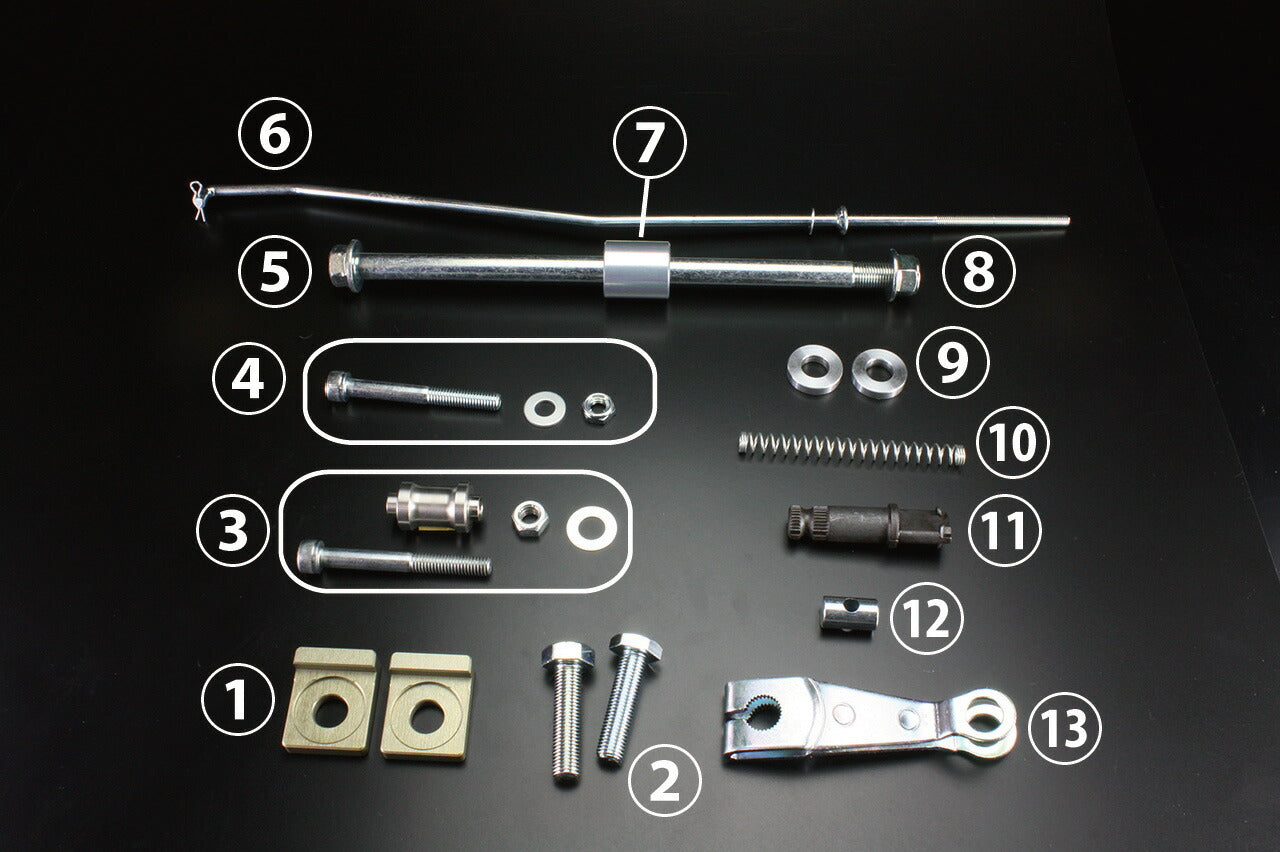

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Twin shock suspension mount bolts set
(3) Torque arm fixing bolt (brake panel side)
Bolt 1 (Repair part number 65050)
Dedicated collar 1 (Repair part number 607092)
Nut 1 (Repair part number 65085)
Shim M10 1 (Repair part number 693371)
(4) Torque arm fixing bolt (swingarm side)
Bolt 1 (Repair part number 690118)
Thin nut 1 (Repair part number 694033)
Washer 1 (Repair part number 65089)
(5) Axle shaft 250mm 1 (Repair part number 38053)
(6) Drum brake rod 1 (depending on swingarm length) *Not included with +0cm, +2cm
(7) Axle collar 29mm 1 (Repair part number 607091)
(8) Axle nut M12 1 (Repair part number 38001)
(9) Frame side suspension collars 2 (Repair part number 631453/1 pc)
(10) Brake rod spring 1 (Repair part number 607094)
(11) Brake arm cam 1 (Repair part number 607093)
(12) Brake arm joint boss 1 (Repair part number 607095)
(13) Brake arm 1 (Repair part number 30035)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Only Triple Square pipes have chain sliders on the bottom.
*Cannot be manufactured with a stabilizer.
*Exclusively designed for G-Craft Dax 10-inch 5.5J wheels.
*Requires G-Craft front offset sprocket 20mm and sprocket spacer 20mm for installation.
*Recommended tire Michelin S1 130/70-10
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
