5.5J Swingarm Drum Triple Square No Stabilizer Buffed +4cm Dax Chaly

【G-Craft 90497 5.5J Swingarm Drum Triple Square No Stabilizer Buff +4cm DAX CHALY】
DAX, CHALY 5.5J Swingarm Drum T/S +4cm No Stabilizer
The DAX/CHALY Super Wide Swingarm is designed to accommodate 10-inch 5.5J wide wheels, with an inner width of 207mm, which is 40mm wider than the stock width (167mm).
It is 20mm wider than the Wide Swingarm (187mm), making it the widest among G-Craft swingarms.
The shock mounts are bent outward to prevent the suspension from splaying out, and are designed so that the suspension attaches to the inside of the mounts.
Compatible models
DAX, CHALY
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

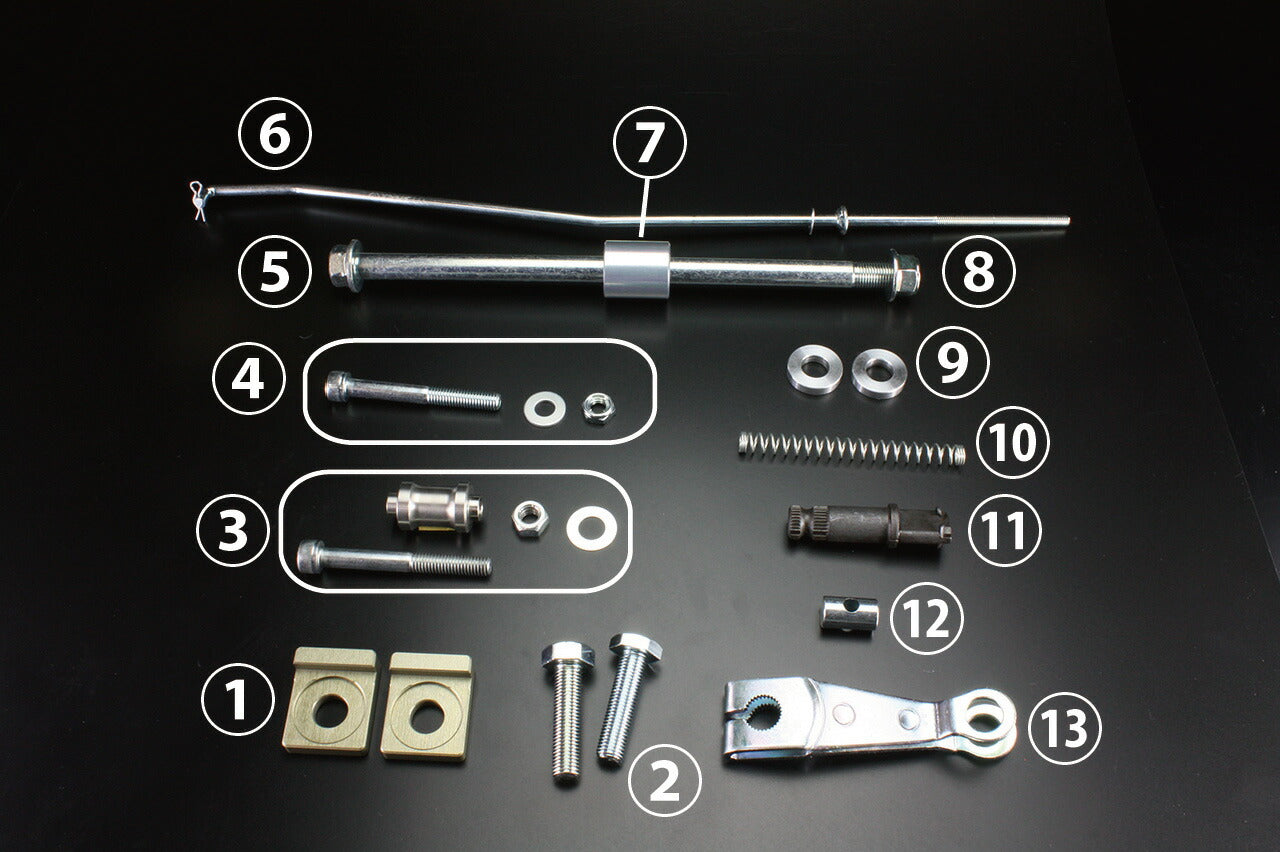

Accessories
(1) Chain adjuster 1 set (dedicated for each pipe shape)
(2) Twin shock mount bolt 1 set
(3) Torque arm fixing bolt (brake panel side)
Bolt 1 pc (Repair part number 65050)
Dedicated collar 1 pc (Repair part number 607092)
Nut 1 pc (Repair part number 65085)
Shim M10 1 pc (Repair part number 693371)
(4) Torque arm fixing bolt (swingarm side)
Bolt 1 pc (Repair part number 690118)
Thin nut 1 pc (Repair part number 694033)
Washer 1 pc (Repair part number 65089)
(5) Axle shaft 250mm 1 pc (Repair part number 38053)
(6) Drum brake rod 1 pc (depending on swingarm length) *Not included for +0cm, +2cm
(7) Axle collar 29mm 1 pc (Repair part number 607091)
(8) Axle nut M12 1 pc (Repair part number 38001)
(9) Frame side suspension collar 2 pcs (Repair part number 631453/1 pc per pack)
(10) Brake rod spring 1 pc (Repair part number 607094)
(11) Brake arm cam 1 pc (Repair part number 607093)
(12) Brake arm joint boss 1 pc (Repair part number 607095)
(13) Brake arm 1 pc (Repair part number 30035)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Only Triple Square pipes have chain sliders on the bottom as well.
*Stabilizer-equipped versions cannot be manufactured.
*Designed exclusively for G-Craft DAX 10-inch 5.5J wheels.
*Installation requires G-Craft front offset sprocket 20mm and sprocket spacer 20mm.
*Recommended tire: Michelin S1 130/70-10
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware of this.
