5.5J Swingarm, Disc, Triple Square, No Stabilizer, Buffed, +0cm, Dax Chaly

【G-Craft 90505 5.5J Swingarm Disc Triple Square No Stabilizer Buff +0cm Dax Chaly】
Dax, Chaly 5.5J Swingarm Disc T/S +0cm No Stabilizer
The Dax/Chaly Super Wide Swingarm is designed to accommodate 10-inch 5.5J wide wheels, with an inner swingarm width of 207mm, which is 40mm wider than the genuine width (167mm).
It is 20mm wider than the wide swingarm (187mm) and is the widest among G-Craft swingarms.
The shock mounts are bent outward to prevent the suspension from forming an "A" shape, and the suspension is designed to fit inside the shock mounts.
Compatible models
Dax, Chaly
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 material used

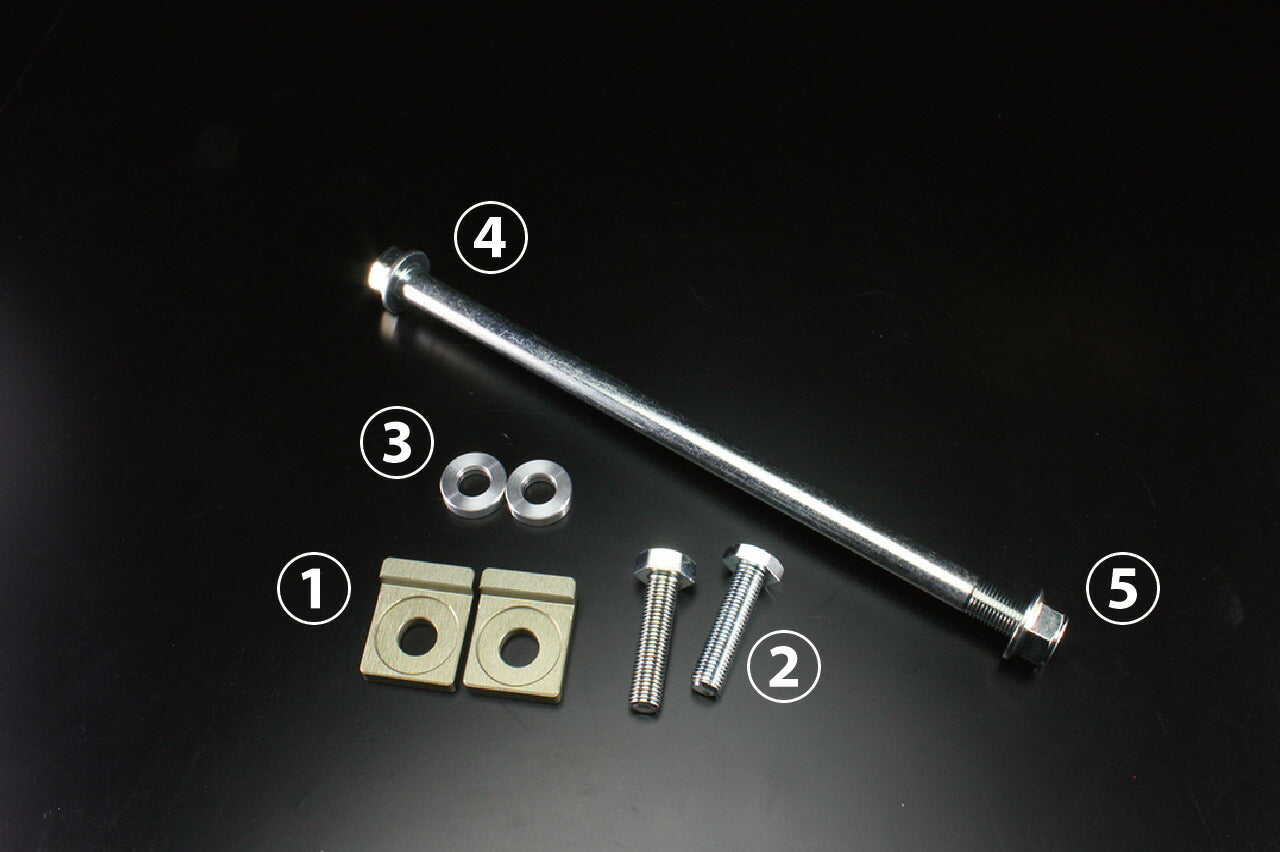

Accessories
(1) Chain adjuster set (specific to each pipe shape) x 1
(2) Twin shock mount bolts set x 1
(3) Frame-side suspension collars x 2 (repair part number 631453)
(4) Axle shaft 250mm x 1 (repair part number 38053)
(5) Axle nut M12 x 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Only triple square pipes have chain sliders on the bottom as well.
*Cannot be manufactured with stabilizer.
*Exclusively designed for G-Craft Dax 10-inch 5.5J wheels.
*Requires G-Craft front offset sprocket 20mm and sprocket spacer 20mm for installation.
*Recommended tire: Michelin S1 130/70-10
Image Notes
*Photo is for drum.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
