5.5J Swingarm, Disc, Triple Square, No Stabilizer, Buffed, +4cm, Dax, Chaly

【G-Craft 90507 5.5J Swingarm Disc Triple Square No Stabilizer Buff +4cm Dax Chaly】
Dax, Chaly 5.5J Swingarm Disc T/S +4cm No Stabilizer
The Dax/Chaly Super Wide Swingarm is designed to accommodate 10-inch 5.5J wide wheels, with an inner width of 207mm, which is 40mm wider than the stock width (167mm).
It is 20mm wider than the wide swingarm (187mm), making it the widest swingarm among G-Craft products.
The suspension mounts are bent outwards to prevent the suspension from becoming V-shaped, ensuring that the suspension attaches to the inside of the mounts.
Compatible models
Dax, Chaly
Surface treatment: Buffed finish
Size: +4cm
Material: 7N01, A5083 material used

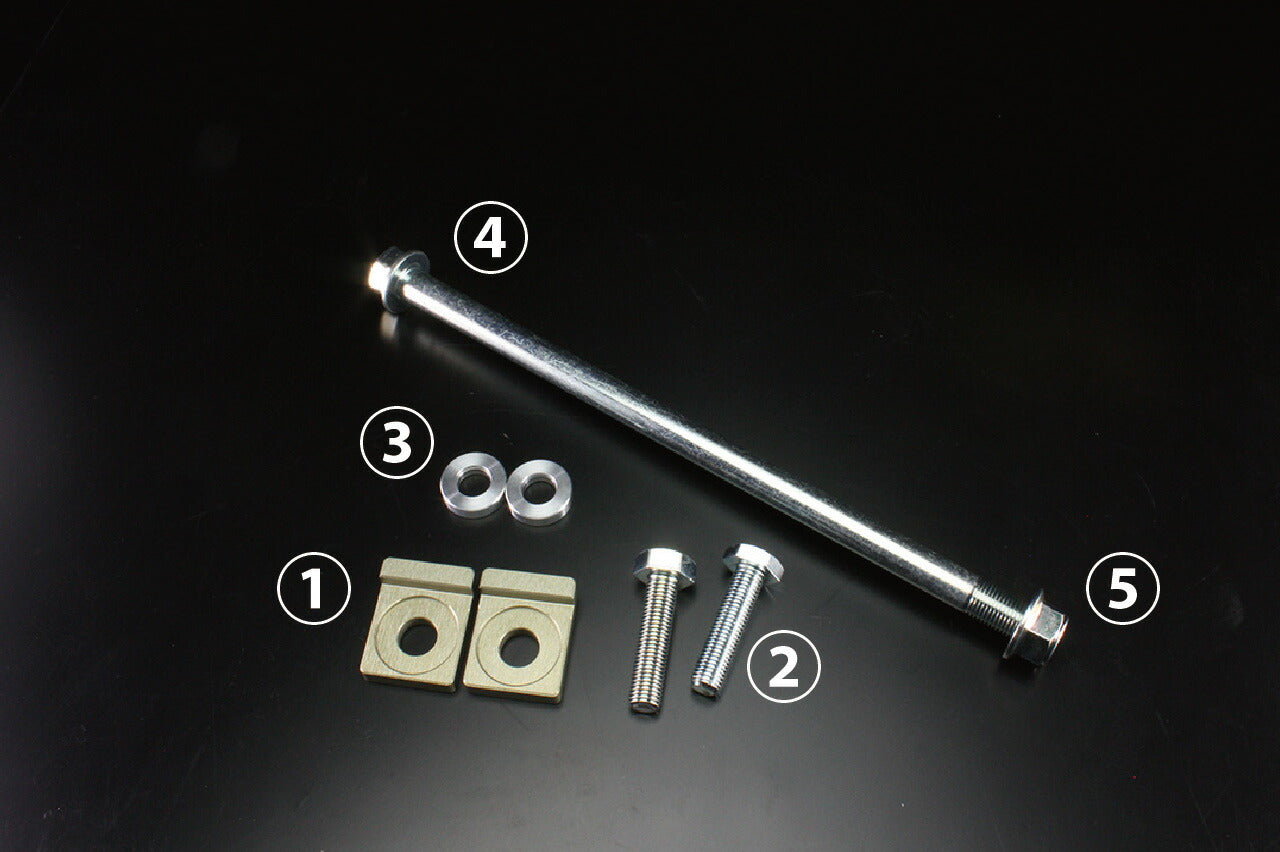

Included parts
(1) Chain adjuster 1 set (specific to each pipe shape)
(2) Twin shock mount bolts 1 set
(3) Frame-side suspension collars 2 pieces (repair part number 631453)
(4) Axle shaft 250mm 1 piece (repair part number 38053)
(5) Axle nut M12 1 piece (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Only Triple Square pipes have chain sliders on the bottom as well.
*Stabilizer-equipped versions cannot be manufactured.
*Specifically designed for G-Craft Dax 10-inch 5.5J wheels.
*Installation requires a G-Craft front offset sprocket 20mm and a sprocket spacer 20mm.
*Recommended tire: Michelin S1 130/70-10
Image notes
*Photos are for drum brakes.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
