5.5J Swingarm, Disc, Triple Square, No Stabilizer, Buffed, +6cm, Dax, Chaly

【G-Craft 90508 5.5J Swingarm Disc Triple Square No Stabilizer Buff +6cm Dax Chaly】
Dax, Chaly 5.5J Swingarm Disc T/S +6cm No Stabilizer
The Dax/Chaly super wide swingarm is manufactured with an inner width of 207mm, which is 40mm wider than the genuine width (167mm), allowing for the installation of 10-inch 5.5J wide wheels.
It is 20mm wider than the wide swingarm (187mm) and is the widest among G-Craft swingarms.
The suspension mounts are bent outwards to prevent the suspension from forming an "A" shape, and are designed so that the suspension attaches to the inside of the mounts.
Compatible models
Dax, Chaly
Surface treatment: Buff finish
Size: +6cm
Material: 7N01, A5083 material used

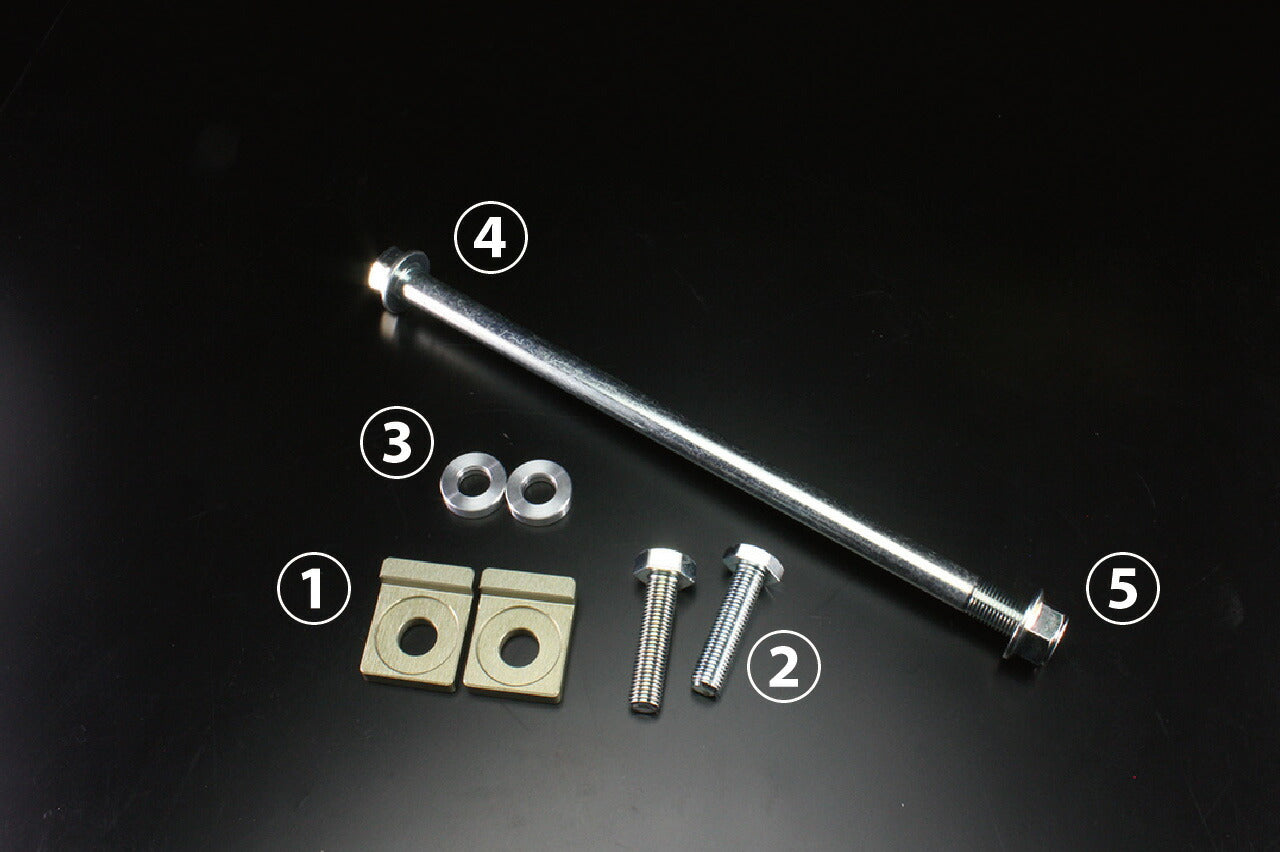

Accessories
(1) Chain adjuster block 1 set (pipe shape specific)
(2) Twin shock suspension mount bolts 1 set
(3) Frame side suspension collars 2 pieces (repair part number 631453)
(4) Axle shaft 250mm 1 piece (repair part number 38053)
(5) Axle nut M12 1 piece (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Only the Triple Square pipe has a chain slider on the bottom as well.
*Cannot be manufactured with a stabilizer.
*Specifically designed for G-Craft Dax 10-inch 5.5J wheels.
*Installation requires a G-Craft front offset sprocket 20mm and a sprocket spacer 20mm.
*Recommended tire: Michelin S1 130/70-10
Notes on images
*The photo is for drum brakes.
*The images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
