Swingarm Triple Square Stabilizer Buffed +0cm GROM

【G-Craft 90526 Swingarm Triple Square with Stabilizer Buff +0cm Grom】
GROM Swingarm T/S +0cm with Stabilizer
Aluminum swingarm for GROM/MSX125.
18 types available: Standard, Triple Square, Triple Square Mini Pipe, with or without stabilizer.
Swingarm weight: Reduced from standard 3.5kg to 1.8kg (Triple Square, without stabilizer, +0cm).
The swingarm is made from 7N01 aluminum, making it lightweight at 1.8kg compared to the stock swingarm's 3.5kg, while also being highly rigid. This reduction in unsprung weight improves motorcycle handling.
Compatible models
GROM (compatible with early and late models)
Surface treatment: Buff finish
Size: +0cm
Material: 7N01, A5083

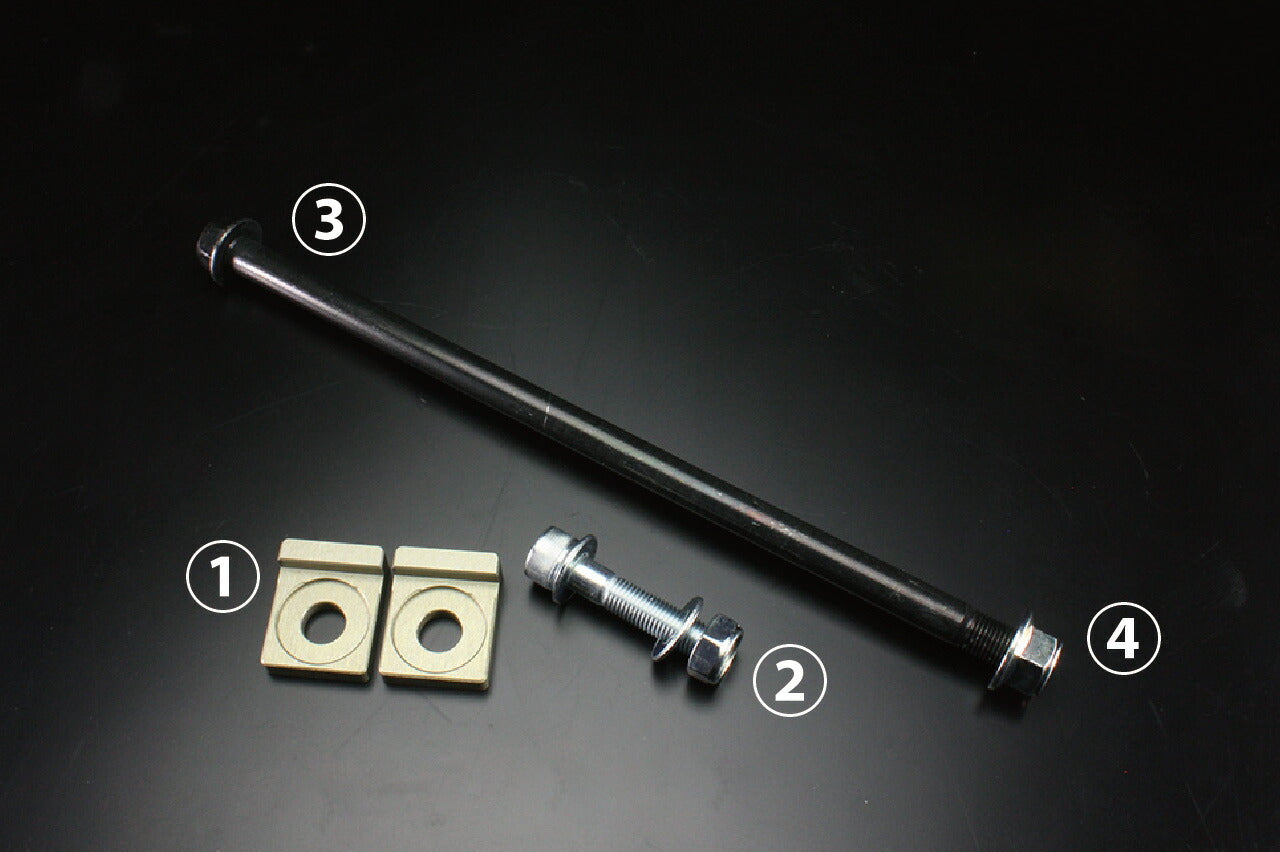

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt x1 (Repair part number 691765)
Nut x1 (Repair part number 65229)
Washer x2 (Repair part number 65090/1 pc per pack)
(3) Axle shaft 275mm x1 (Repair part number 38066)
(4) Axle nut M12 x1 (Repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Fender stay is not included. Please use option part number 60908 fender stay mounting modification separately.
*For +10cm, the side stand will be too short, so please use 32037.
*After replacing the stand, the side stand switch will no longer function, so the sensor switch must be directly connected. Also, there is a risk of the rear fender interfering with the tire, so please use a fender eliminator kit (KITACO recommended).
*For 2016 models with stock mufflers, only models with stabilizers cannot be installed (the stabilizer interferes with the muffler's catalytic converter).
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware of this.
