Swingarm Triple Square No Stabilizer Buff +6cm Z125 Pro

【G-Craft 90537 Swingarm Triple Square No Stabilizer Buffed +6cm Z125 Pro】
T/S No Stabilizer +6cm for Z125PRO
Lightweight, High-Rigidity Triple Square Swingarm
The swingarm is made of 7N01 aluminum, achieving a lightweight yet highly rigid design at 2.2kg compared to the stock swingarm's 4.8kg. This reduction in unsprung weight improves motorcycle handling.
Please choose your preferred pipe type from the three options.
The triple square pipe, in particular, is extremely popular with G-Craft, boasting a unique irregular-shaped cross-section that provides both lightness and high rigidity.
Compatible models:
Z125PRO
Surface treatment: Buffed finish
Size: +6cm
Material: 7N01, A5083

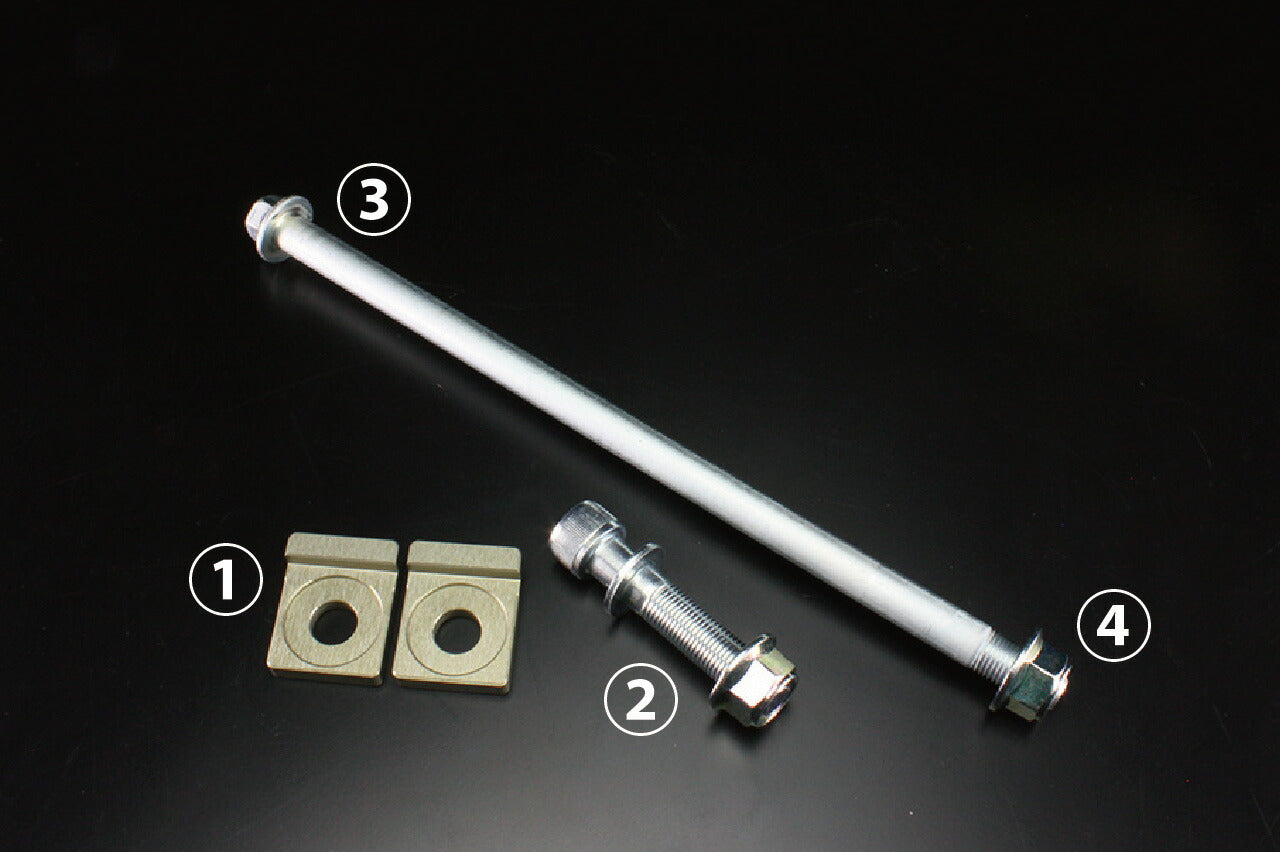

Accessories:
(1) Chain adjuster set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1pc (Repair part no. 6077010)
Nut 1pc (Repair part no. 38001)
Washer 1pc (Repair part no. 6077011)
(3) Axle shaft 255mm 1pc (Repair part no. 38006)
(4) Axle nut M12 1pc (Repair part no. 38001)
Notes:
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Fender mounting stays are optional. (The stock fender is secured at 4 points, but G-Craft's optional stays secure it at 3 points. The fender mounting position does not change even if the swingarm length changes.)
*Adjust the chain length (120 links; +10 is 130 links) with a chain cutter.
*Please prepare a brake hose that is 60-100mm longer than the stock one.
*Pivot bearing processing is not possible.
*The image is for illustration purposes only. The design and specifications of the products shown are subject to change without prior notice. Please be aware.
