Swingarm Triple Square Stabilized Buff +0cm Z125 Pro

【G-Craft 90546 Swingarm Triple Square with Stabilizer Buffed +0cm Z125 Pro】
For Z125 PRO T/S with Stabilizer +0cm
Lightweight and highly rigid, triple square swingarm
The swingarm is made of 7N01 aluminum, making it lightweight at 2.2kg compared to the stock swingarm's 4.8kg, and highly rigid. This reduction in unsprung weight improves the motorcycle's handling.
Please choose your preferred pipe from the 3 types available.
The triple square pipe, in particular, is extremely popular at G-Craft. Its unique rectangular cross-section structure provides both lightness and high rigidity.
Compatible models
Z125PRO
Surface treatment: Buffed finish
Size: +0cm
Material: 7N01, A5083 used

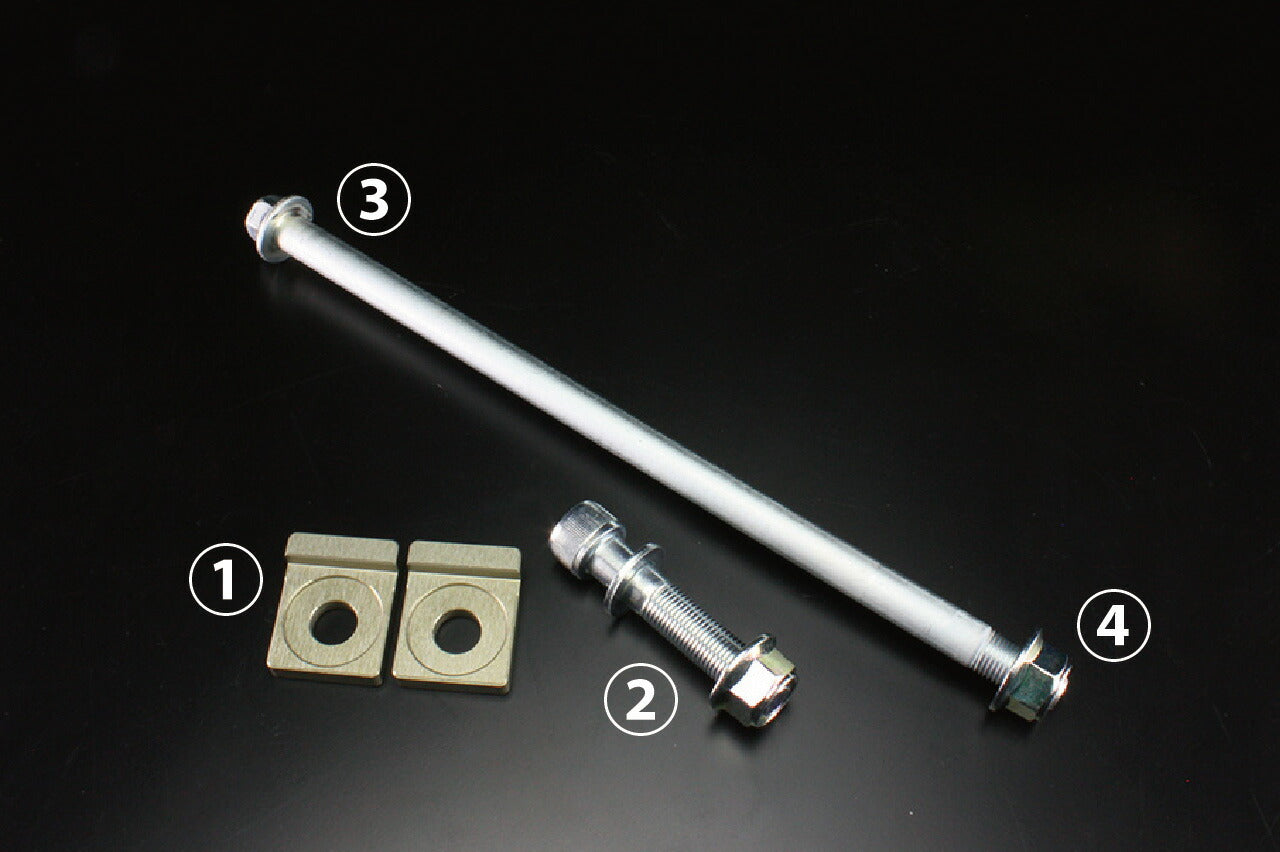

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part no. 6077010)
Nut 1 (repair part no. 38001)
Washer 1 (repair part no. 6077011)
(3) Axle shaft 255mm 1 (repair part no. 38006)
(4) Axle nut M12 1 (repair part no. 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Fender mounting stays are optional. (The stock fender is fixed at 4 points, but G-Craft's option uses 3 fixing points. The fender mounting position does not change even if the swingarm length changes.)
*Adjust the chain length with a chain cutter for 120 links (+10 is 130 links).
*Please prepare a brake hose that is 60-100mm longer than the stock one.
*Bearing processing of the pivot part is not possible.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
