Super Wide Swingarm, Low Cost, Twin Shock, Standard, No Stabilizer, Buffed, +4cm, Monkey Gorilla

【G-Craft 90552 Super Wide Swingarm Low Cost Twin Shock Standard No Stabilizer Buff +4cm Monkey Gorilla】
Monkey Super Wide S/A Low Cost STD Twin +4cm No Stabilizer
This swingarm is the widest available for the Monkey (207-210mm), allowing the installation of 5.5J wide wheels. Compared to the stock Monkey swingarm (167-170mm wide), it is 20mm wider on each side.
By installing a 20mm sprocket spacer (39419), you can use the Monkey's stock hub or a wide disc rear hub. This swingarm is compatible with both drum and disc brakes.
There are two types available: one that uses the 30047 super wide shock mount and a low-cost type that does not use the shock mount.
■If you want to change from drum to disc specifications■
You can change the specification by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +4cm
Material: 7N01, A5083 material used

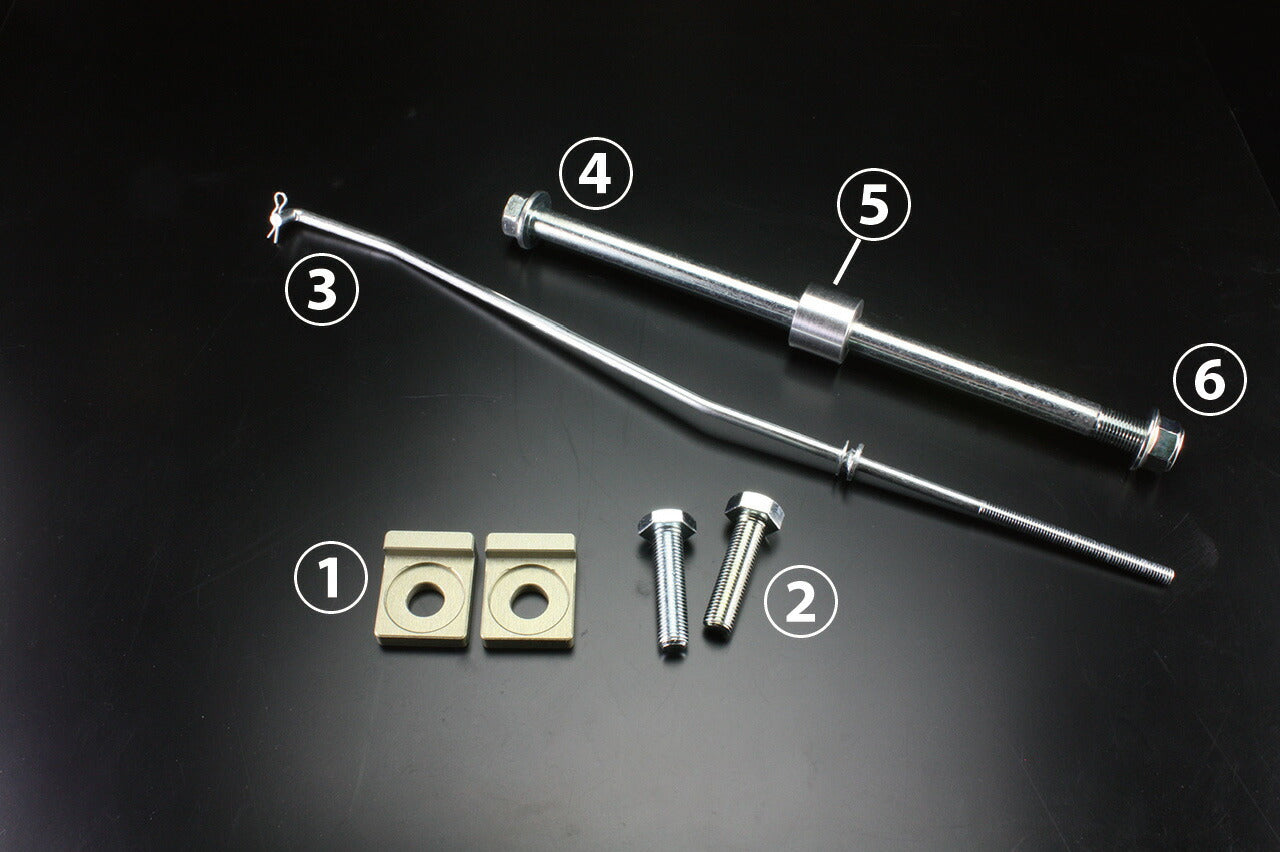

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock mount bolts 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, the 30102 stand holder type 2 is required for swingarms with stabilizers.
*Only Triple Square pipes have a chain slider on the bottom as well.
*The low-cost type shock mount is about 30mm higher than the regular twin shock type.
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay to ensure the necessary clearance for operation before installation.
*Triple Square models come standard with pivot bearing specifications.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
