Super Wide Swingarm, Low Cost, Twin Shock, Standard, No Stabilizer, Buffed, +10cm, Monkey, Gorilla

【G-Craft 90553 Super Wide Swingarm Low Cost Twin Shock Standard No Stabilizer Buff +10cm Monkey Gorilla】
Monkey Super Wide S/A Low Cost STD Twin +10cm No Stabilizer
This is a swingarm with the maximum width (207-210mm) for Monkey, allowing 5.5J wide wheels to be installed. It is 20mm wider on each side compared to the genuine Monkey swingarm (width 167-170mm).
By installing the 39419 20mm sprocket spacer, you can use the genuine Monkey hub or a wide disc rear hub. This swingarm is compatible with both drum and disc brakes.
There are two types available: one that uses the 30047 super wide shock mount and a low-cost type that does not use a shock mount.
■When changing from drum specifications to disc specifications■
Specifications can be changed by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +10cm
Material: 7N01, A5083 material used

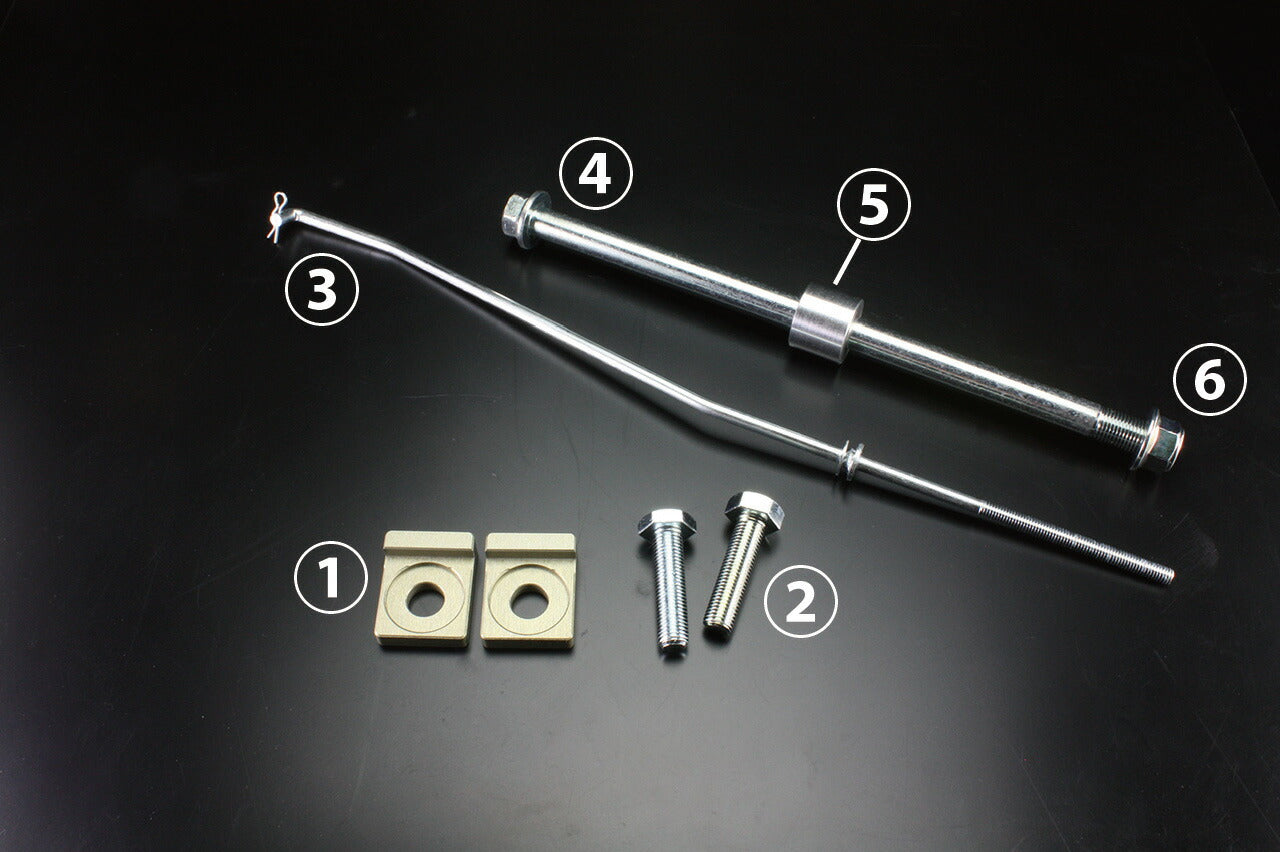

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Twin shock mount bolts 1 set
(3) Drum brake rod 1 (depending on the length of the swingarm)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, the 30102 stand holder type 2 is required for swingarms with stabilizers.
*Only the triple square pipe has a chain slider on the bottom as well.
*The shock mounts of the low-cost type are about 30mm higher than those of regular twin shocks.
*Due to individual differences in vehicles, the brake switch stay may interfere. In such cases, bend the brake switch stay and install it after ensuring the necessary clearance for operation.
*Triple Square has a standard bearing specification for the pivot part.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
