Super Wide Swingarm, Low Cost, Twin Shock, Triple Square, No Stabilizer, Buffed, +10cm, for Monkey/Gorilla

【G-Craft 90557 Super Wide Swingarm Low-Cost Twin Shock Triple Square No Stabilizer Buff +10cm Monkey Gorilla】
Monkey Super Wide S/A Low Cost T/S Twin +10cm No Stabilizer
This is the widest swingarm (207-210mm) for Monkey, capable of mounting 5.5J wide wheels. Compared to the genuine Monkey swingarm (width 167-170mm), it is 20mm wider on each side.
By installing the 39419 20mm sprocket spacer, you can use a genuine Monkey hub or a wide disc rear hub. This swingarm is compatible with both drum and disc brakes.
Two types are available in the lineup: one that uses the 30047 Super Wide Suspension Mount and a low-cost type that does not use the suspension mount.
■ If you want to change from drum specifications to disc specifications ■
Specifications can be changed by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface treatment: Buff finish
Size: +10cm
Material: 7N01, A5083 material used

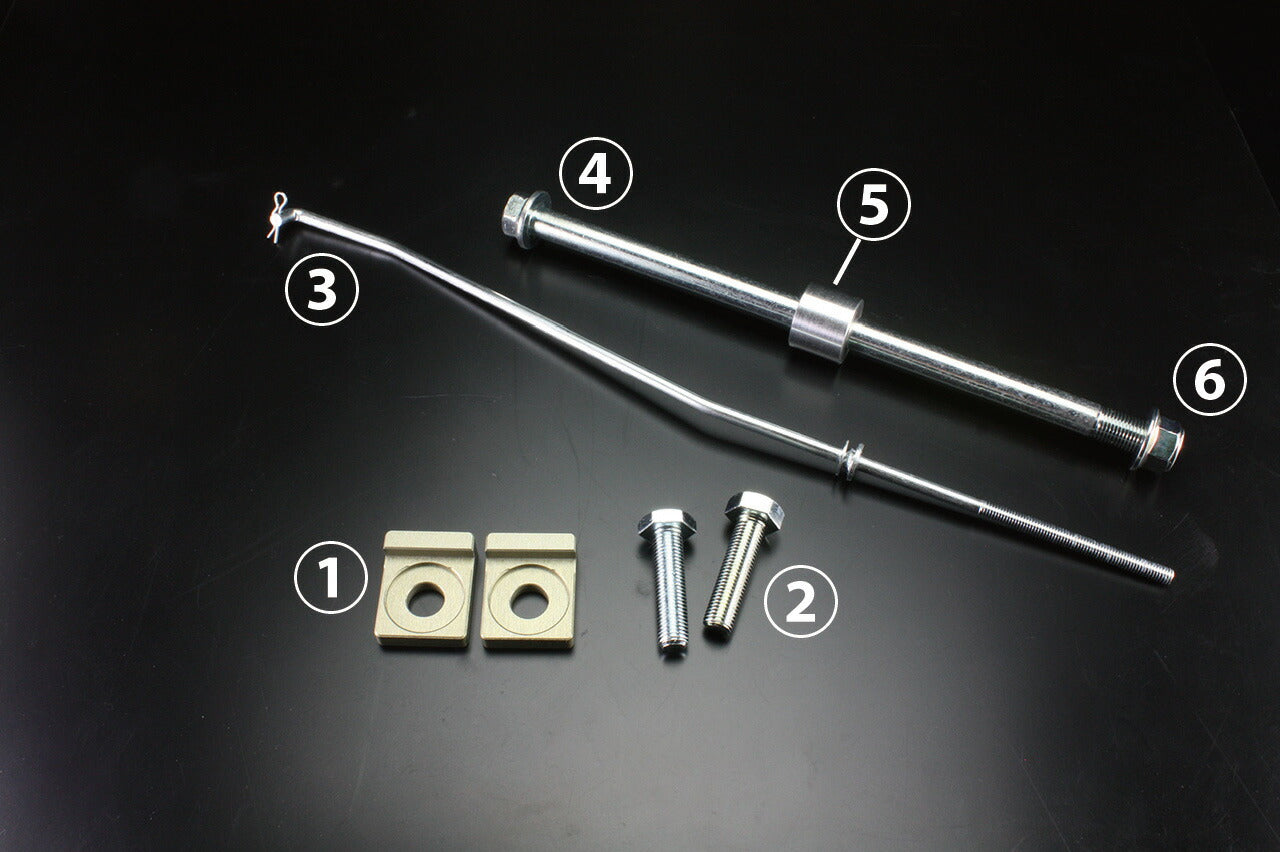

Accessories
(1) Chain adjuster block 1 set (dedicated for each pipe shape)
(2) Twin shock suspension mount bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, a 30102 stand holder type 2 is required for swingarms with stabilizers.
*Only Triple Square pipes have a chain slider on the bottom.
*The suspension mount of the low-cost type is about 30mm higher than that of the standard twin shock type.
*Depending on individual differences in the vehicle, the brake switch stay may interfere. In that case, bend the brake switch stay and install it after securing the necessary clearance for operation.
*Triple Square is standard with a bearing specification at the pivot part.
*The image is for illustration purposes only, and the design and specifications of the products shown may be changed without prior notice. Please understand.
