Super Wide Swingarm Low Cost Twin Shock Triple Square No Stabilizer Buff +16cm Monkey Gorilla

【G-Craft 90558 Super Wide Swingarm Low Cost Twin Shock Triple Square No Stabilizer Buff +16cm Monkey Gorilla】
Monkey Super Wide S/A Low Cost T/S Twin +16cm No Stabilizer
This is the widest swingarm for Monkeys (207-210mm) that can accommodate 5.5J wide wheels. Compared to the genuine Monkey swingarm (167-170mm wide), it is 20mm wider on each side.
By installing the 39419 20mm sprocket spacer, you can use the genuine Monkey hub or a wide disc rear hub. This swingarm is compatible with both drum and disc brakes.
There are two types available: one that uses the 30047 super wide suspension mount and a low-cost type that does not use the suspension mount.
■If you want to change from drum specification to disc specification■
You can change the specification by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface treatment: Buffed finish
Size: +16cm
Material: 7N01, A5083 material used

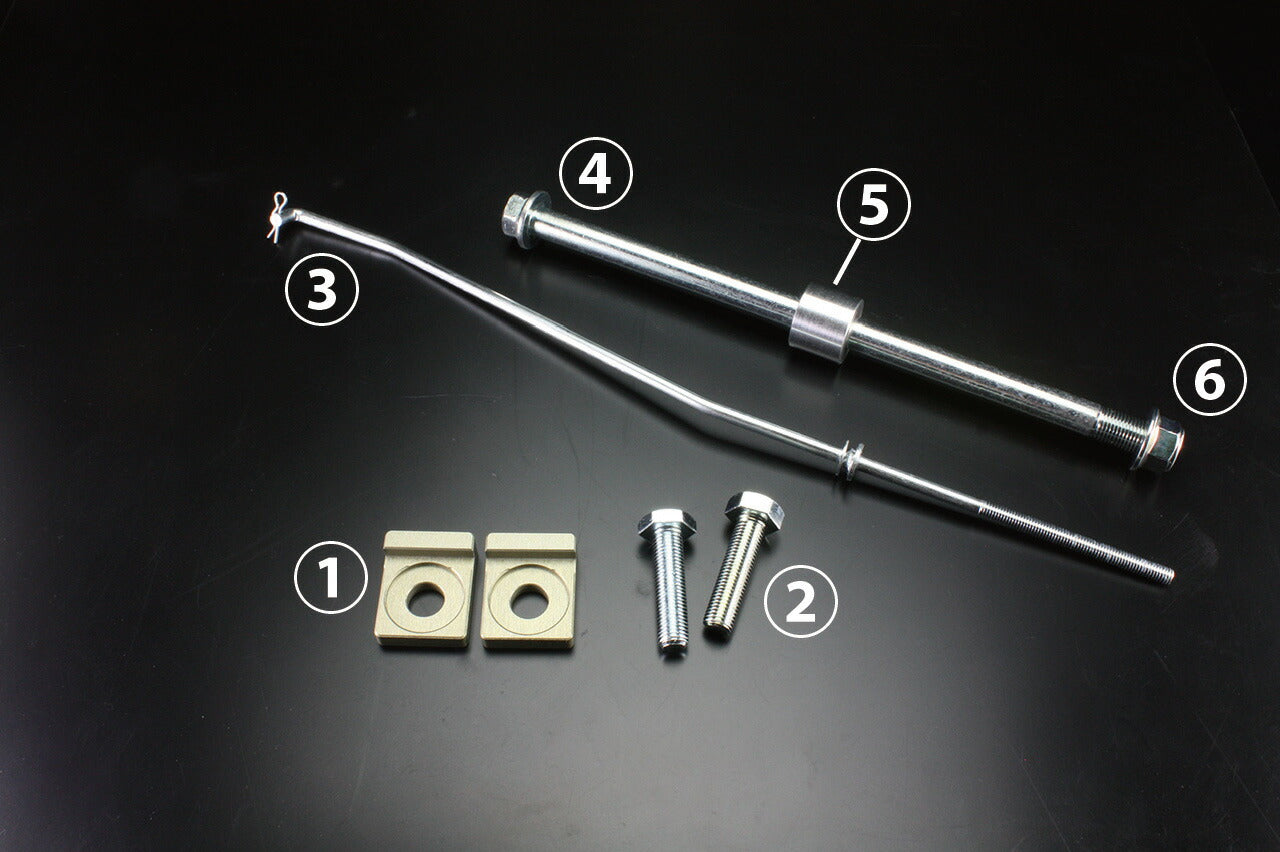

Accessories
(1) Chain adjuster block 1 set (dedicated to each pipe shape)
(2) Twin shock suspension mounting bolt 1 set
(3) Drum brake rod 1 (depending on swingarm length)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, the 30102 stand holder type 2 is required for swingarms with stabilizers.
*Only the Triple Square pipe has a chain slider on the bottom as well.
*The low-cost type suspension mount is about 30mm higher than the regular twin shock type.
*Due to individual differences in the vehicle body, the brake switch stay may interfere. In such cases, bend the brake switch stay and ensure the necessary clearance for operation before installing.
*Triple Square has a bearing specification at the pivot section as standard.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
