Super Wide Swingarm, Normal Look, Twin Shock, with Stabilizer, Buffed, +16cm, Monkey Gorilla

【G-Craft 90565 Super Wide Swingarm, Normal Look, Twin Shock, with Stabilizer, Buffed, +16cm, Monkey, Gorilla】
Monkey Super Wide S/A Normal Look Twin +16cm with Stabilizer
This is a swingarm with the maximum width (207-210mm) for Monkey, capable of mounting 5.5J wide wheels.
Compared to the genuine Monkey swingarm, it is 20mm wider on both the left and right sides.
By installing the 20mm sprocket spacer (39419), you can use the genuine Monkey hub or a wide disc rear hub.
This swingarm supports both drum and disc brakes.
There are two types available in the lineup: one that uses the 30047 Super Wide Suspension Mount and a lower-cost type that does not.
■ If you want to change from drum specification to disc specification ■
The specification can be changed by cutting the brake stopper.
Compatible models
Monkey, Gorilla
Surface finish: Buffed
Size: +16cm
Material: 7N01, A5083 material used

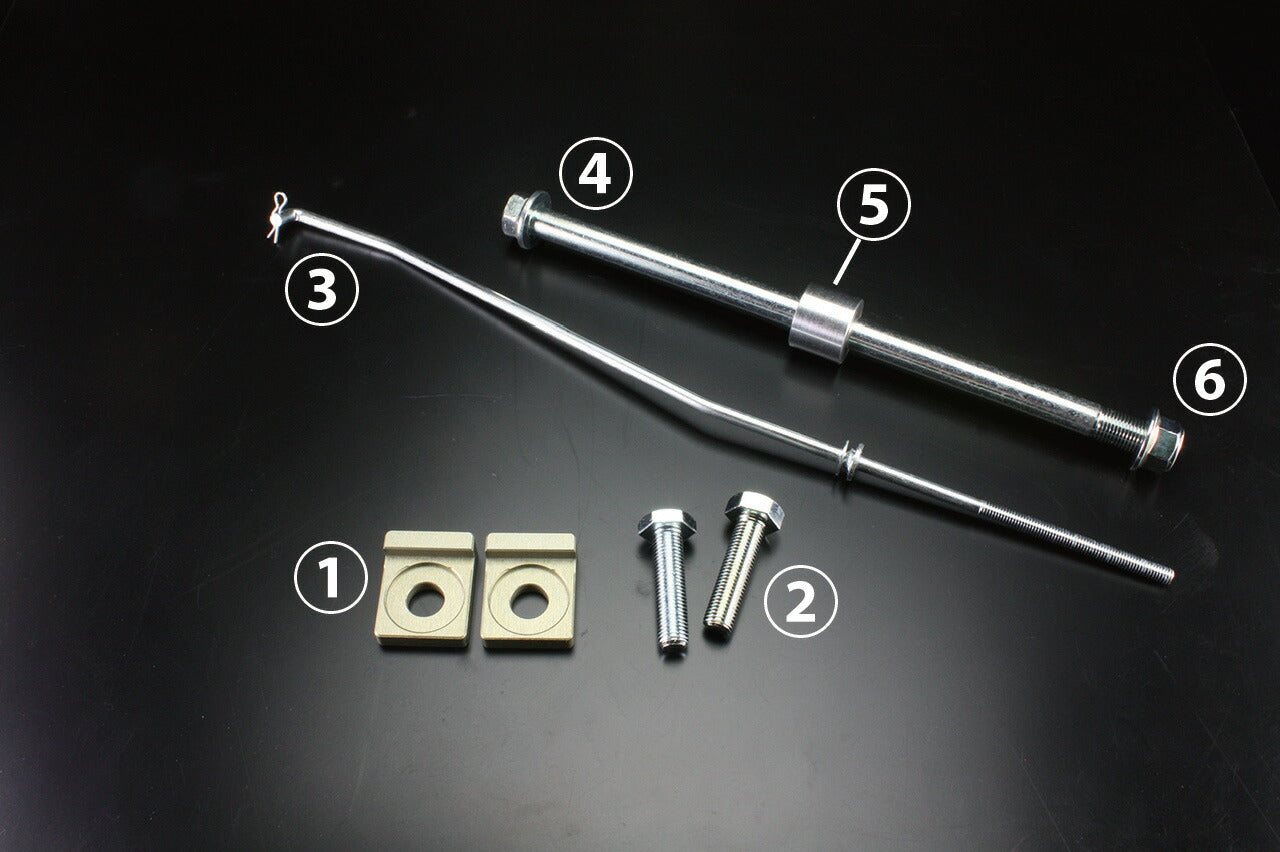

Accessories
(1) Chain adjuster set (specific to each pipe shape) 1 set
(2) Twin shock suspension mount bolts 1 set
(3) Drum brake rod 1 (according to the swingarm length)
(4) Axle shaft 250mm 1 (repair part number 38053)
(5) Axle collar 20mm 1 (repair part number 394216)
(6) Axle nut M12 1 (repair part number 38001)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*To prevent interference between the side stand and the stabilizer, swingarms with stabilizers require the 30102 Stand Holder Type 2.
*Only Triple Square pipes have a chain slider on the bottom as well.
*Due to individual differences in vehicle bodies, the brake switch stay may interfere. In such cases, bend the brake switch stay and install it after ensuring the necessary clearance for operation.
*Triple Square models come standard with bearing specifications for the pivot part.
*When adding a stabilizer, the installation of Stand Hook Type-2 (60903) is not possible.
*Stabilizer addition is not possible for +4cm models.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
