GC-022 Frame Specific Swingarm Monoshock Triple Square No Stabilizer Buffed +12cm Monkey Gorilla

[G-Craft 90566 GC-022 Frame Specific Swingarm Monoshock Triple Square No Stabilizer Buff +12cm Monkey Gorilla]
GC-022 Frame Specific S/A Monkey +12cm T/S No Stabilizer
This swingarm is manufactured with the same width (167-170mm wide) as the genuine Monkey swingarm.
It can use the genuine Monkey hub as is, or you can use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
The Triple Square pipe swingarm, which adopts the lightweight and high-rigidity "eye-shaped cross-section," is a pipe that boasts over 80% support.
Designed exclusively for the GC-022 frame (39895).
Compatible models
Monkey, Gorilla (for GC-022 aluminum frame)
Surface treatment: Buff finish
Size: +12cm
Material: 7N01, A5083 material used

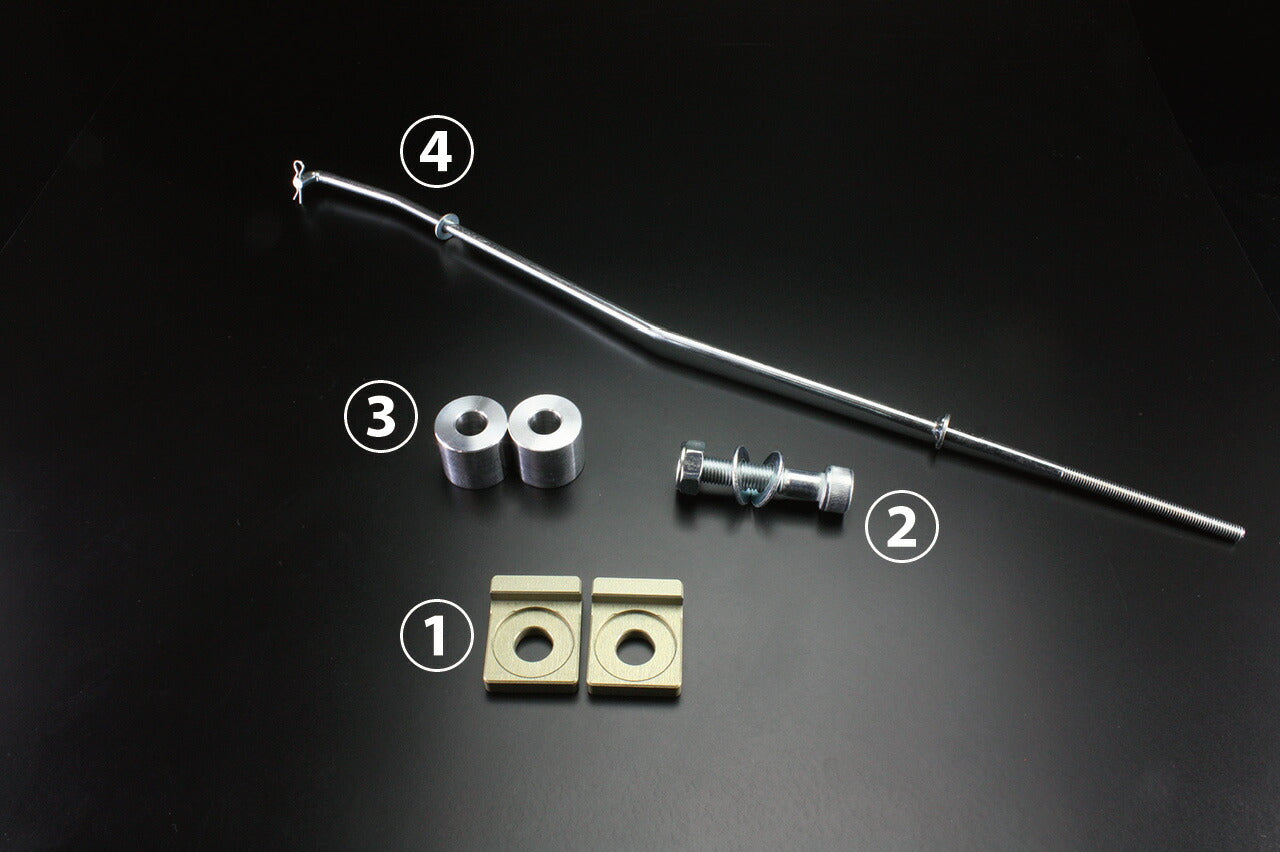

Accessories
(1) Chain adjuster set (specific for each pipe shape) x 1
(2) Shock mounting bolt set
Bolt x 1 (Repair part number 691765)
Nut x 1 (Repair part number 65229)
Washer x 2 (Repair part number 65090 / 1pc per pack)
(3) Seat fixing collar 22mm x 2 (Repair part number 68133 / 1pc per pack)
(4) Drum brake rod x 1 (depending on swingarm length)
Precautions
*T/S (Triple Square) and S/A (Swingarm) are abbreviations.
*Chain sliders are pre-installed on the top and bottom.
*For NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer will be on the lower side.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
