GC-022 Frame Specific Swingarm Monoshock Triple Square with Stabilizer Buffed +12cm Monkey Gorilla

【G-Craft 90569 GC-022 Frame Specific Swingarm Monoshock Triple Square with Stabilizer Buff +12cm Monkey Gorilla】
GC-022 Frame Specific S/A Monkey +12cm T/S with Stabilizer
This swingarm is manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
It can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
The Triple Square pipe swingarm, which adopts a lightweight and highly rigid "I-beam cross-section," is a pipe that boasts over 80% support.
Specifically designed for the GC-022 frame (39895).
Compatible models
Monkey, Gorilla (for GC-022 aluminum frame)
Surface treatment: Buff finish
Size: +12cm
Material: 7N01, A5083 material used

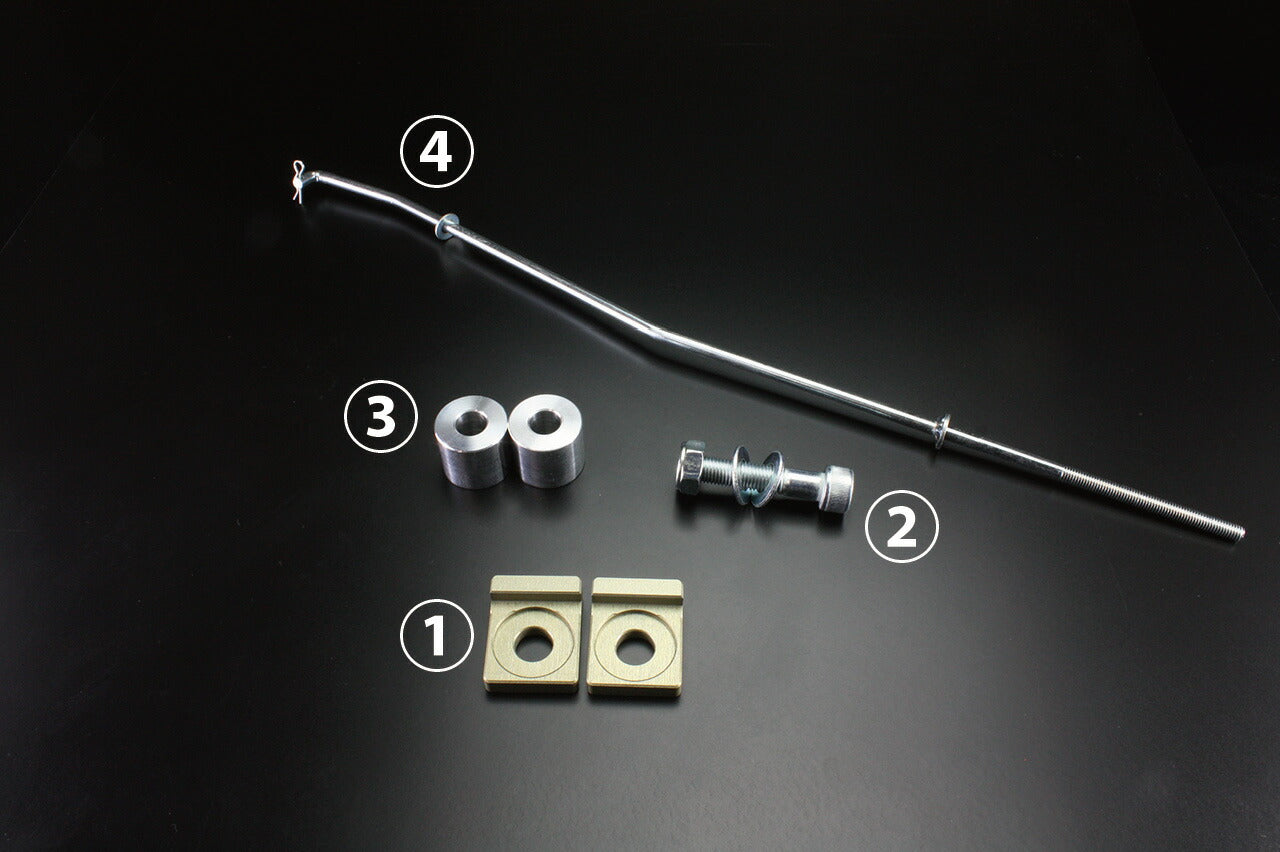

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 691765)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc)
(3) Seat fixing collar 22mm 2 (repair part number 68133/1 pc)
(4) Drum brake rod 1 (depending on swingarm length)
Notes
*T/S (Triple Square) and S/A (Swingarm) are abbreviations.
*Chain sliders are pre-installed on the top and bottom.
*For NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer will be on the bottom.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without notice. Please understand.
