GC-022 Frame Specific Wide Swingarm Monoshock Triple Square No Stabilizer Buffed +12cm Monkey Gorilla

【G-Craft 90572 GC-022 Frame Specific Wide Swingarm Monoshock Triple Square No Stabilizer Buff +12cm Monkey Gorilla】
GC-022 Frame Specific S/A Wide +12cm T/S No Stabilizer

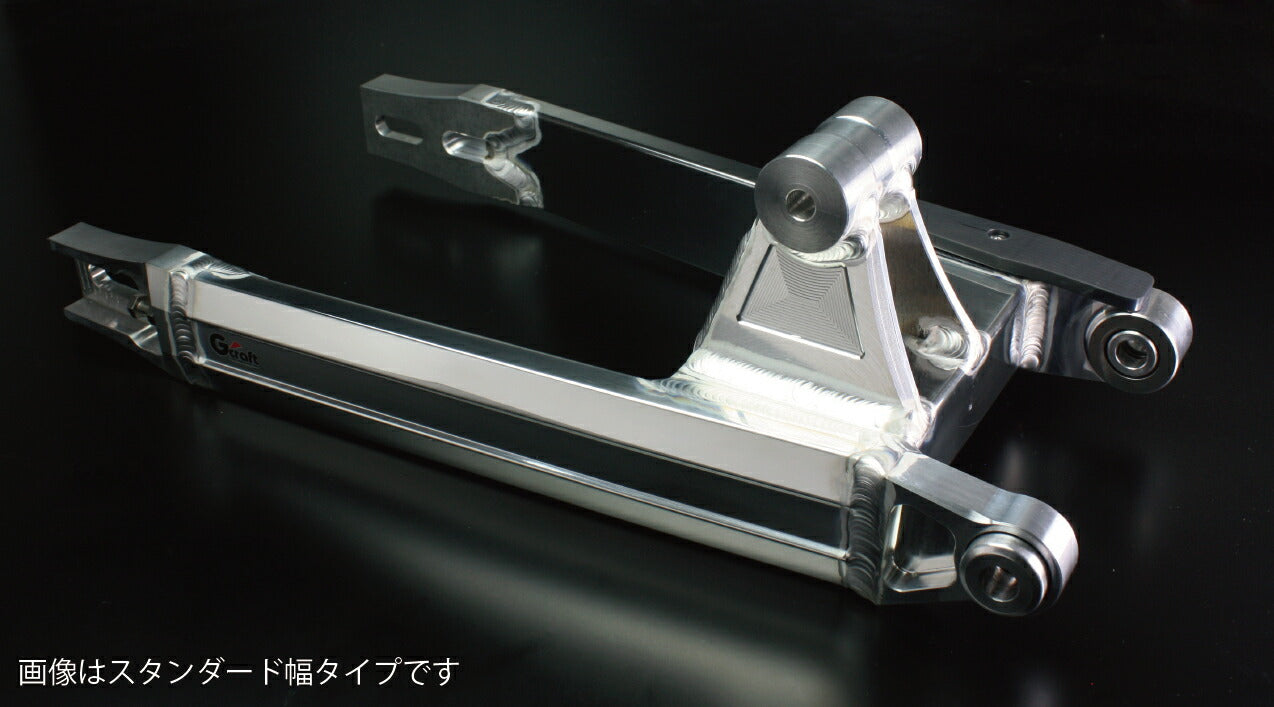

This swingarm is manufactured with a width of 187-190mm so that the genuine Monkey hub can be used as is.
The 39048 wide rear disc hub can also be used.
This swingarm supports both drum and disc brakes.
The triple square pipe swingarm, which uses a lightweight and highly rigid "eye-shaped cross-section," is a pipe that boasts over 80% support.
Designed exclusively for GC-022 frames (39895).
When installing 8-4.0J, a 4mm offset sprocket on the front and a 4mm sprocket spacer on the rear are required.
When installing 10-4.0, a front sprocket is not required because it can be offset on the engine side. (If using a normal hub, an 8mm offset sprocket spacer is required)
Compatible models
Monkey, Gorilla (for GC-022 aluminum frame)
Surface treatment: Buffed finish
Size: +12cm
Material: 7N01, A5083 material used

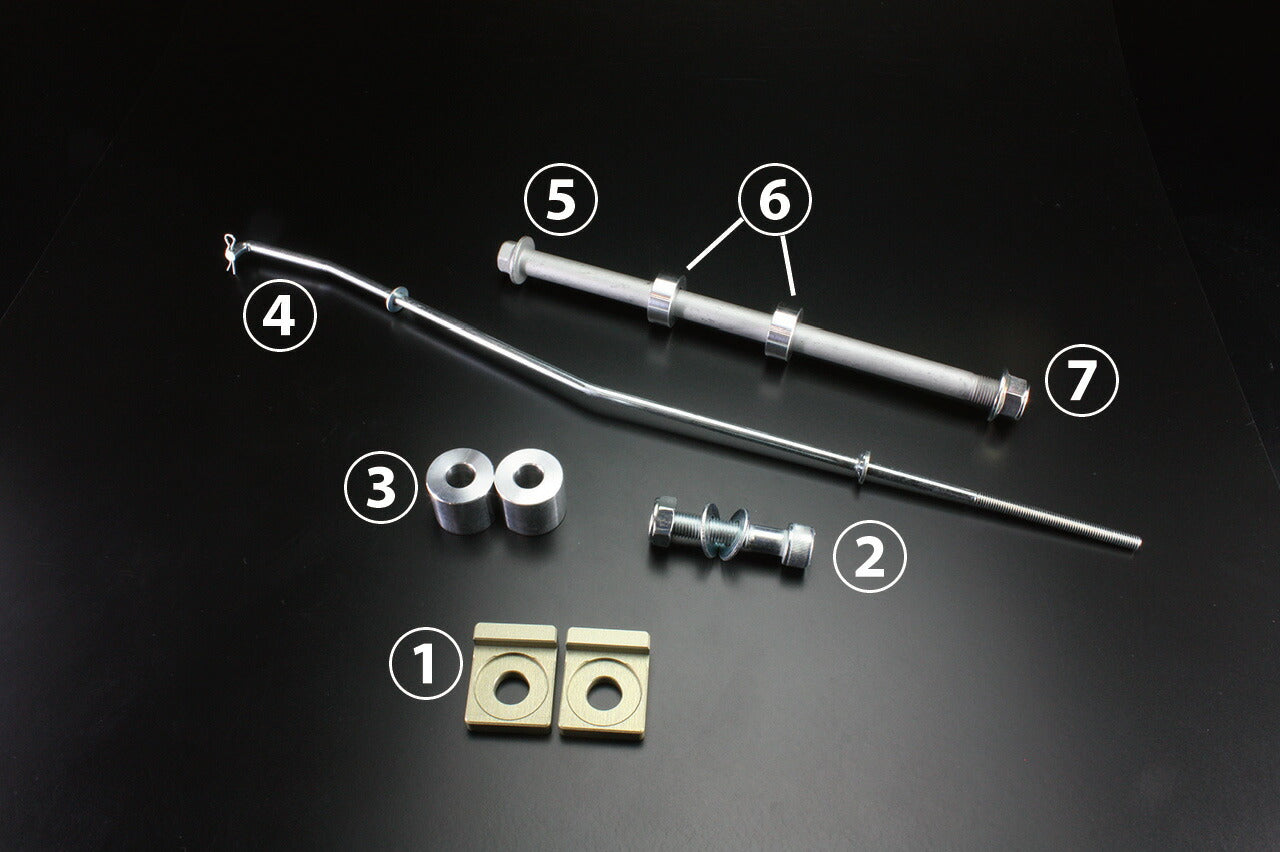

Accessories
(1) Chain adjuster set 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 691765)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc)
(3) Seat fixing collar 22mm 2 (repair part number 68133/1 pc)
(4) Drum brake rod 1 (depending on swingarm length)
(5) Axle shaft 230mm 1 (repair part number 38061)
(6) Axle collar 10mm 2 (repair part number 68134/1 pc)
(7) Axle nut M12 1 (repair part number 38001)
Notes
*T/S (Triple Square) and S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J and 10-inch 4.0J can be installed. (+4cm or more is required)
*Chain sliders are pre-installed on the top and bottom.
*Exclusively for NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer will be on the bottom.
*When using a disc brake, the brake stopper needs to be cut.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Thank you for your understanding.
