GC-022 Frame Only Wide Swingarm, Monoshock, Triple Square, No Stabilizer, Buff, +16cm, Monkey, Gorilla

【G-Craft 90573 GC-022 Frame Specific Wide Swingarm Monoshock Triple Square No Stabilizer Buffed +16cm Monkey Gorilla】

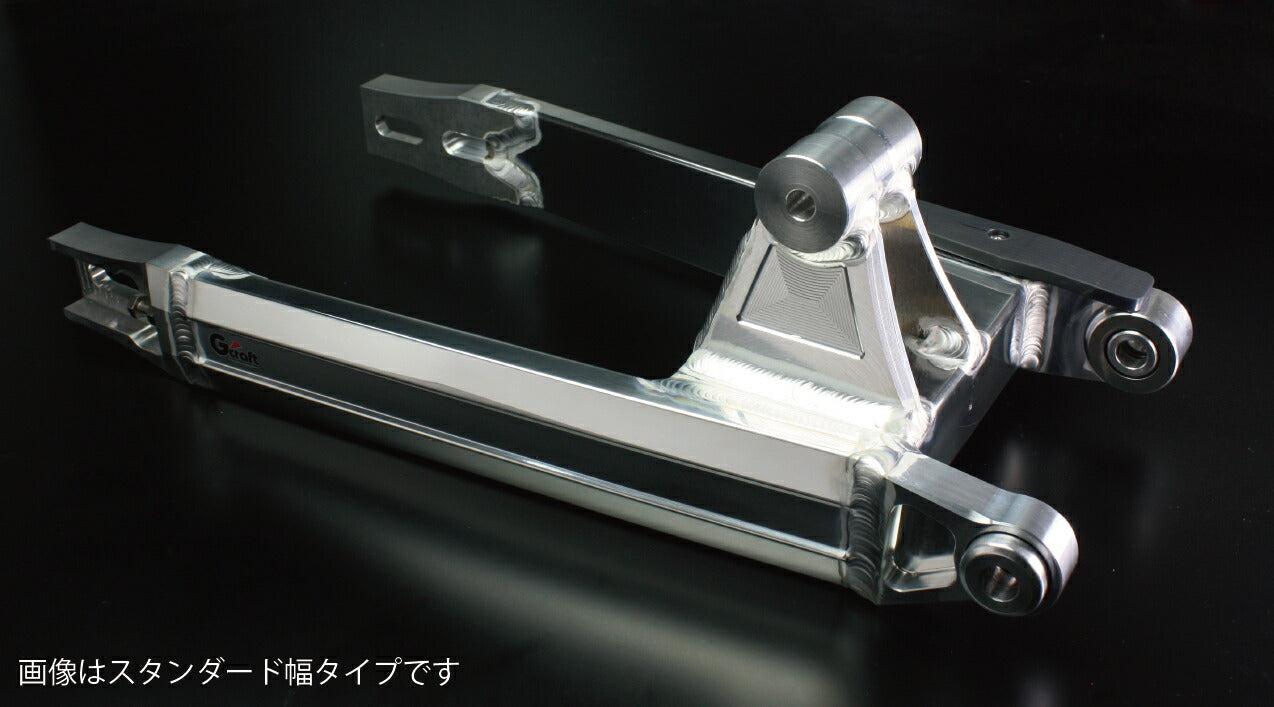

GC-022 Frame Specific S/A Wide +16cm T/S No Stabilizer
This swingarm is designed with a width of 187-190mm so that the genuine Monkey hub can be used as is.
The 39048 wide rear disc hub can also be used.
This swingarm is compatible with both drum and disc brakes.
The triple square pipe swingarm, which uses a lightweight and highly rigid "I-beam cross-section," is a pipe that boasts over 80% support.
Specifically designed for the GC-022 frame (39895).
When installing 8-4.0J, a 4mm offset sprocket on the front and a 4mm sprocket spacer on the rear are required.
When installing 10-4.0, offsetting can be done on the engine side, so a front sprocket is not required. (If using a normal hub, an 8mm offset sprocket spacer is required)
Compatible models
Monkey, Gorilla (for GC-022 aluminum frame)
Surface treatment: Buffed finish
Size: +16cm
Material: 7N01, A5083 material used

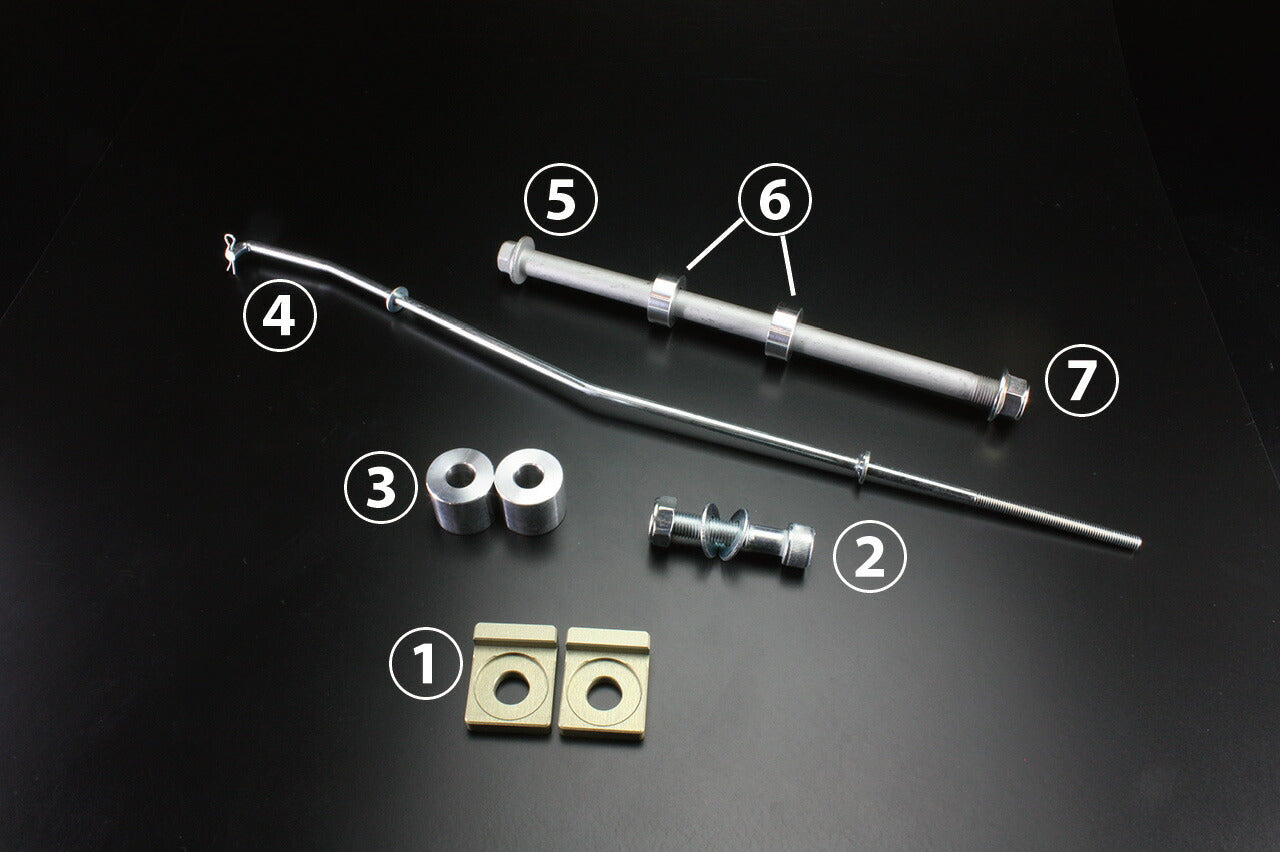

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Bolt set for shock mounting
Bolt 1 (repair part number 691765)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc)
(3) Seat fixing collar 22mm 2 (repair part number 68133/1 pc)
(4) Drum brake rod 1 (depending on swingarm length)
(5) Axle shaft 230mm 1 (repair part number 38061)
(6) Axle collar 10mm 2 (repair part number 68134/1 pc)
(7) Axle nut M12 1 (repair part number 38001)
Notes
*T/S (Triple Square) and S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J and 10-inch 4.0J can be installed. (+4cm or more is required)
*Chain sliders are pre-installed on the top and bottom.
*Exclusively for NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer will be on the lower side.
*When using a disc brake, the brake stopper needs to be cut.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
