GC-022 Frame Specific Swingarm NSR Triple Square No Stabilizer Buff +12cm Monkey Gorilla

【G-Craft 90584 GC-022 Frame Specific Swingarm NSR Triple Square No Stabilizer Buffed +12cm Monkey Gorilla】

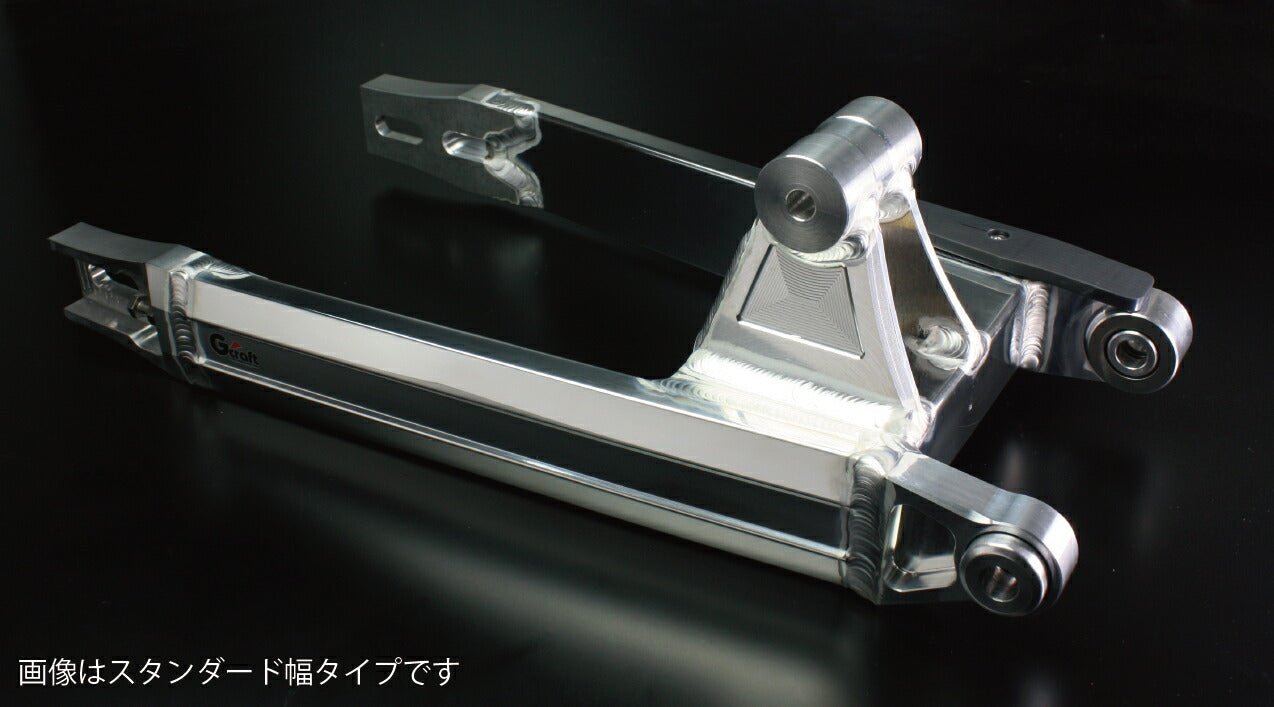

GC-022 Frame Specific S/A NSR +12cm T/S No Stabilizer
This swingarm is designed with a width of 184-187mm for mounting NSR wheels.
The Triple Square pipe swingarm, which uses a lightweight and highly rigid "eye-shaped cross-section," is a pipe that boasts over 80% support.
Designed exclusively for the GC-022 frame (39895).
Compatible models
Monkey, Gorilla (for GC-022 aluminum frame)
Surface treatment: Buffed finish
Size: +12cm
Material: 7N01, A5083 material used

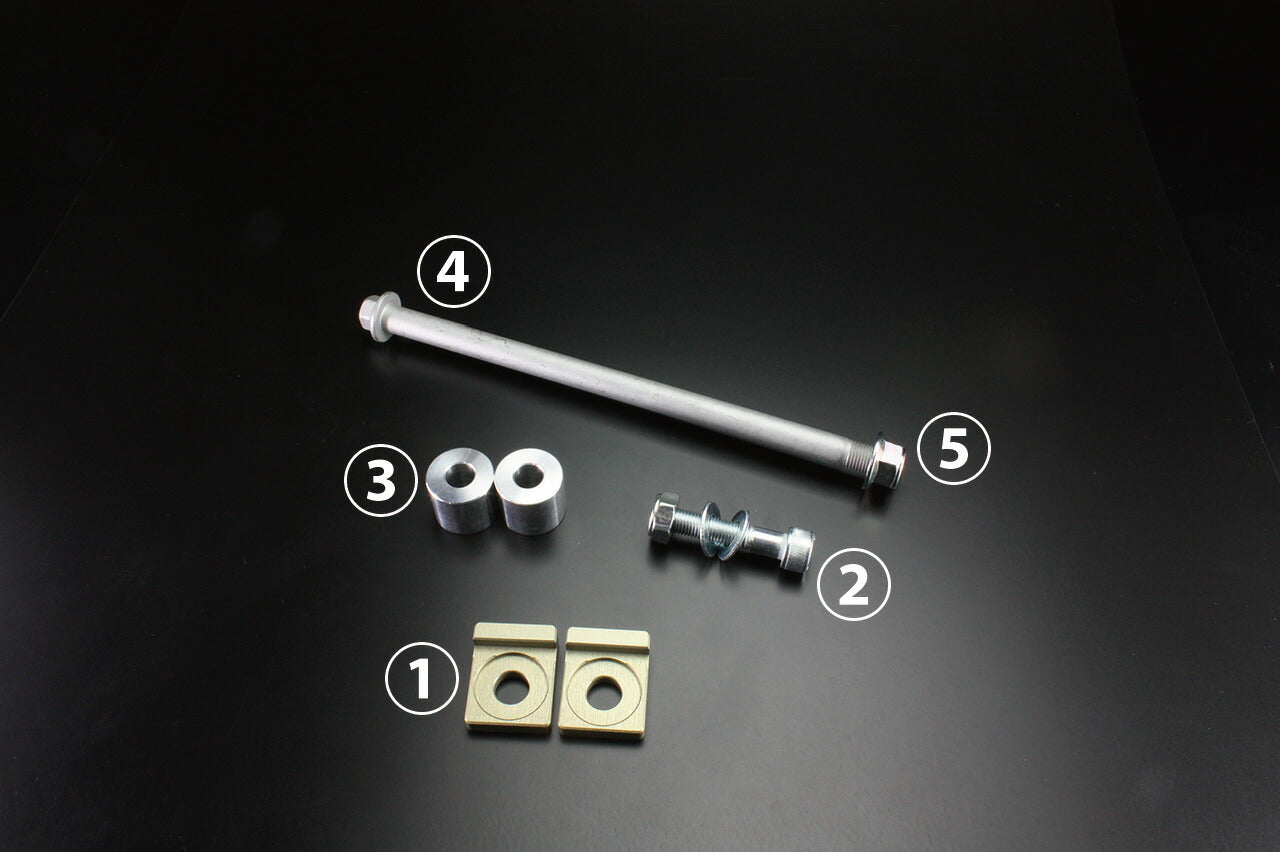

Accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (Repair part number 691765)
Nut 1 (Repair part number 65229)
Washer 2 (Repair part number 65090 / 1pc each)
(3) Seat fixing collar 22mm 2 (Repair part number 68133 / 1pc each)
(4) Axle shaft 230mm 1 (Repair part number 38061)
(5) Axle nut M12 1 (Repair part number 38001)
Notes
*T/S (Triple Square) and S/A (Swingarm) are abbreviations.
*Chain sliders are installed at the top and bottom.
*Exclusively for NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer will be on the bottom side.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
