GC-022 Frame Specific Swingarm NSR Triple Square No Stabilizer Buff +20cm Monkey Gorilla

[G-Craft 90586 GC-022 Frame Specific Swingarm NSR Triple Square No Stabilizer Buff +20cm Monkey Gorilla]
GC-022 Frame Specific Swingarm NSR +20cm Triple Square No Stabilizer
This swingarm is designed with a width of 184-187mm to accommodate NSR wheels.
The triple square pipe swingarm, which utilizes a lightweight and high-rigidity "eye-shaped cross-section," is a pipe that boasts over 80% support.
Exclusively designed for the GC-022 frame (39895).
Compatible models
Monkey, Gorilla (for GC-022 aluminum frame)
Surface treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used

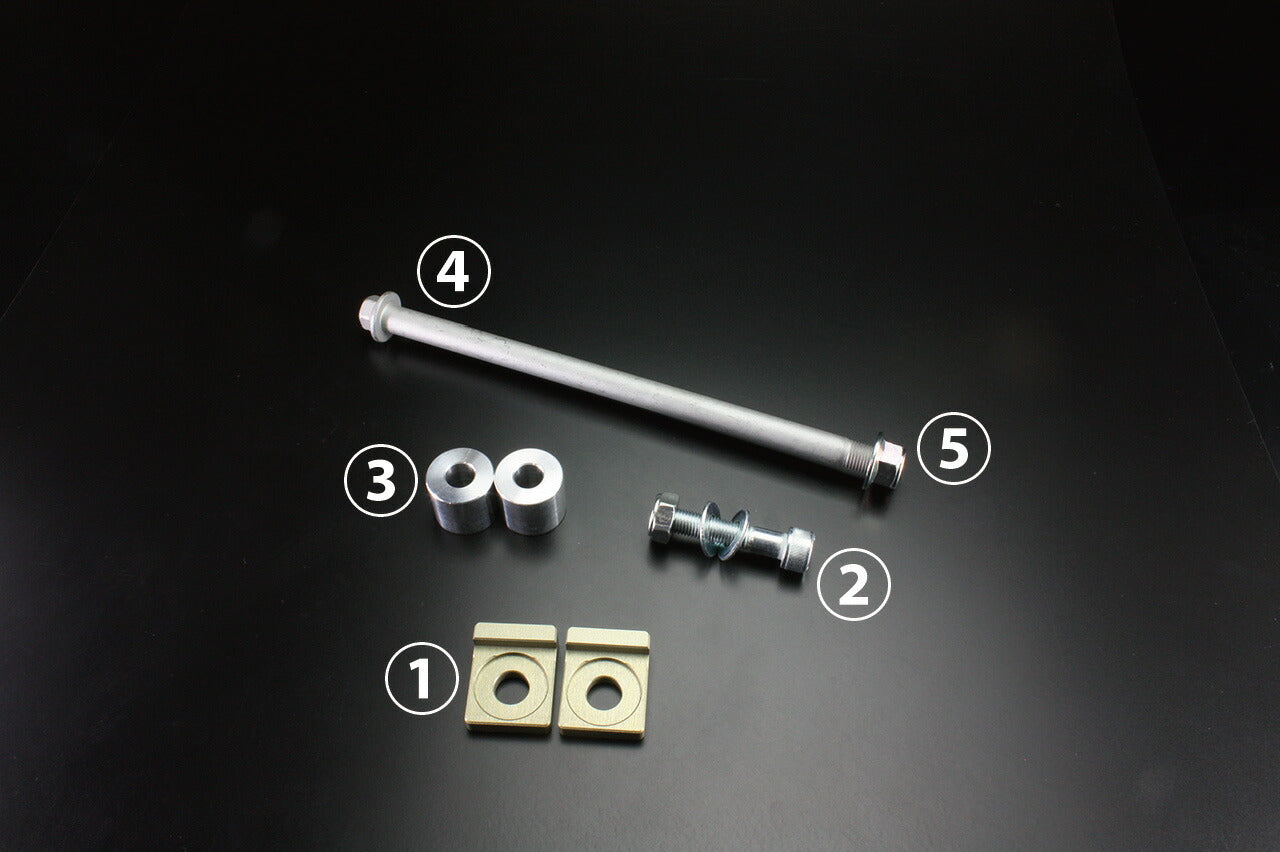

Included accessories
(1) Chain adjuster block 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 691765)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
(3) Seat fixing collar 22mm 2 (repair part number 68133/1 pc per pack)
(4) Axle shaft 230mm 1 (repair part number 38061)
(5) Axle nut M12 1 (repair part number 38001)
Notes
*T/S (Triple Square) and S/A (Swingarm) are abbreviations.
*Chain sliders are pre-installed on both top and bottom.
*Exclusively for NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer will be on the lower side.
*Images are for illustration purposes only; product design and specifications may change without prior notice. Please understand.
