GC-019/GC-020 Frame Only Swingarm, Monoshock, Standard, No Stabilizer, Buff, +12cm, Monkey, Gorilla

【G-Craft 90590 GC-019/GC-020 Frame Only Swingarm Monoshock Standard No Stabilizer Buff +12cm Monkey Gorilla】
GC-019, GC-020 Frame Only S/A Monkey +12cm STD No Stabilizer
The standard width (for Monkey hub) swingarm for GC-019 and GC-020 aluminum frames is a swingarm manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.

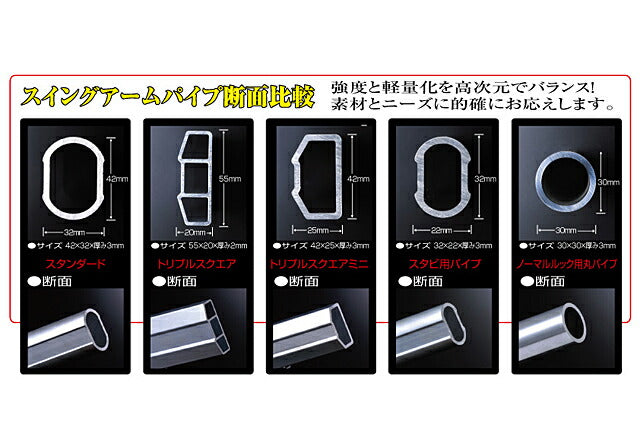

The triple-square pipe swingarm, which uses a strong "eye-shaped cross-section," is a pipe that boasts over 80% support from users who choose 16cm or longer.
Compatible models
Monkey, Gorilla (for GC-019, GC-020 aluminum frames)
Surface treatment: Buffed finish
Size: +12cm
Material: 7N01, A5083 material used

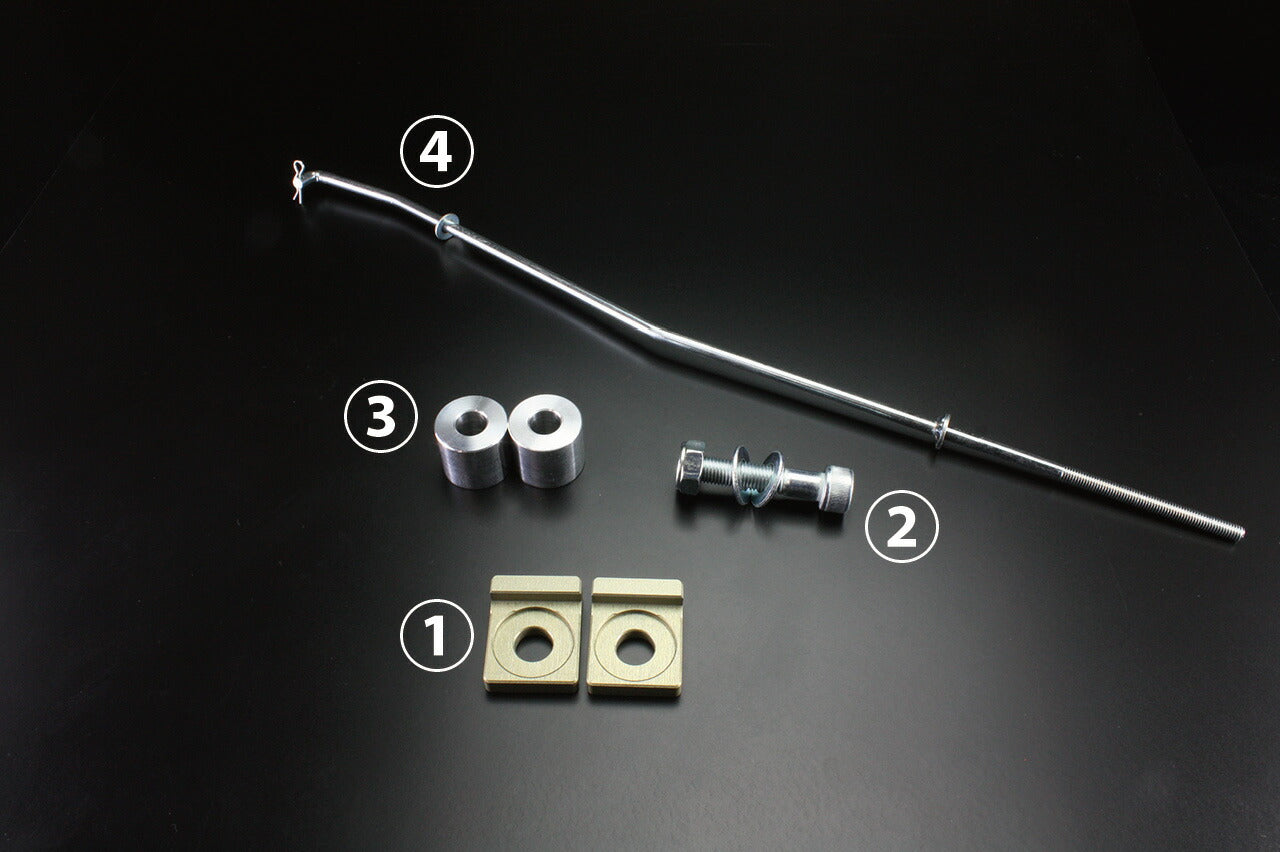

Accessories
(1) Chain adjuster set 1 set (specific for each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65235)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc per pack)
(3) Seat fixing collars 22mm 2 (repair part number 68133/1 pc per pack)
(4) Drum brake rod 1 (depending on the length of the swingarm)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inch 4.0J (up to 3.5J for disc), and up to 10 inch 3.5J can be installed. (+4cm or more is required)
*Only triple-square pipes have chain sliders on the bottom as well.
*Please use genuine NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The basic stabilizer will be on the bottom.
*Exclusively for GC-019 and GC-020 aluminum frames. Other frames cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
