GC-019/GC-020 Frame-Specific Swingarm Monoshock Standard Non-Stabilized Buff +16cm Monkey Gorilla

[G-Craft 90592 GC-019/GC-020 Frame Only Swingarm Monoshock Standard No Stabilizer Buff +16cm Monkey Gorilla]
GC-019, GC-020 Frame Only S/A Monkey +16cm STD No Stabilizer
The standard width (for Monkey hubs) swingarm for GC-019 and GC-020 aluminum frames is a swingarm made to the same width as the genuine Monkey swingarm (width 167-170mm).
In addition to being able to use the genuine Monkey hub as is, you can also use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.

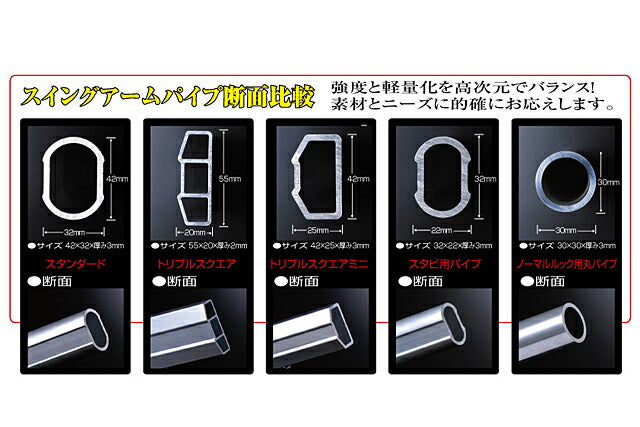

The triple square pipe swingarm, which adopts the strong "I-beam cross-section," is a pipe that boasts over 80% support from users who choose +16cm or longer.
Compatible models
Monkey, Gorilla (for GC-019, GC-020 aluminum frames)
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

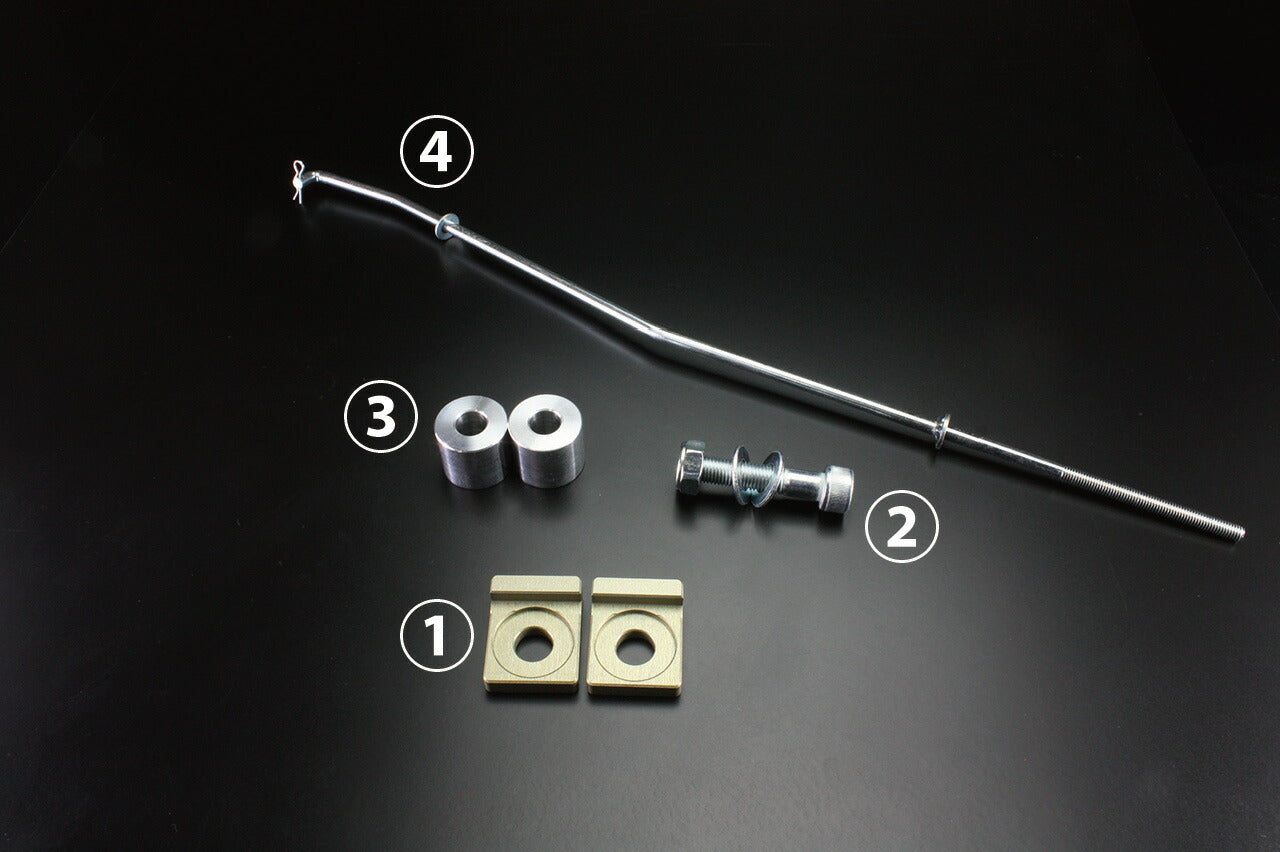

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt x 1 (repair part number 65235)
Nut x 1 (repair part number 65229)
Washer x 2 (repair part number 65090/1 pc per pack)
(3) Seat fixing collar 22mm x 2 (repair part number 68133/1 pc per pack)
(4) Drum brake rod x 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (discs up to 3.5J), 10 inches up to 3.5J can be installed. (+4cm or more is required)
*Only triple square pipes have a chain slider on the bottom.
*Please use genuine NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The basic stabilizer will be on the bottom.
*Exclusive for GC-019, GC-020 aluminum frames. Not compatible with other frames.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
