GC-019/GC-020 Frame-Specific Swingarm Monoshock Standard Non-Stabilizer Buff +20cm Monkey Gorilla

【G-Craft 90593 GC-019/GC-020 Frame Only Swingarm, Monoshock, Standard, No Stabilizer, Buffed +20cm, Monkey Gorilla】
GC-019, GC-020 Frame Only S/A Monkey +20cm STD No Stabilizer
The standard width (for Monkey hub) swingarm for GC-019 and GC-020 aluminum frames is a swingarm manufactured with the same width (167-170mm wide) as the genuine Monkey swingarm.
In addition to being able to use the genuine Monkey hub as is, the 39053 rear disc hub can also be used.
This swingarm is compatible with both drum and disc brakes.
The triple square pipe swingarm, which adopts the strong "I-beam cross-section," is a pipe that boasts over 80% support from users who choose 16cm or longer.
Compatible models
Monkey, Gorilla (for GC-019, GC-020 aluminum frames)
Surface treatment: Buffed finish
Size: +20cm
Material: 7N01, A5083 material used

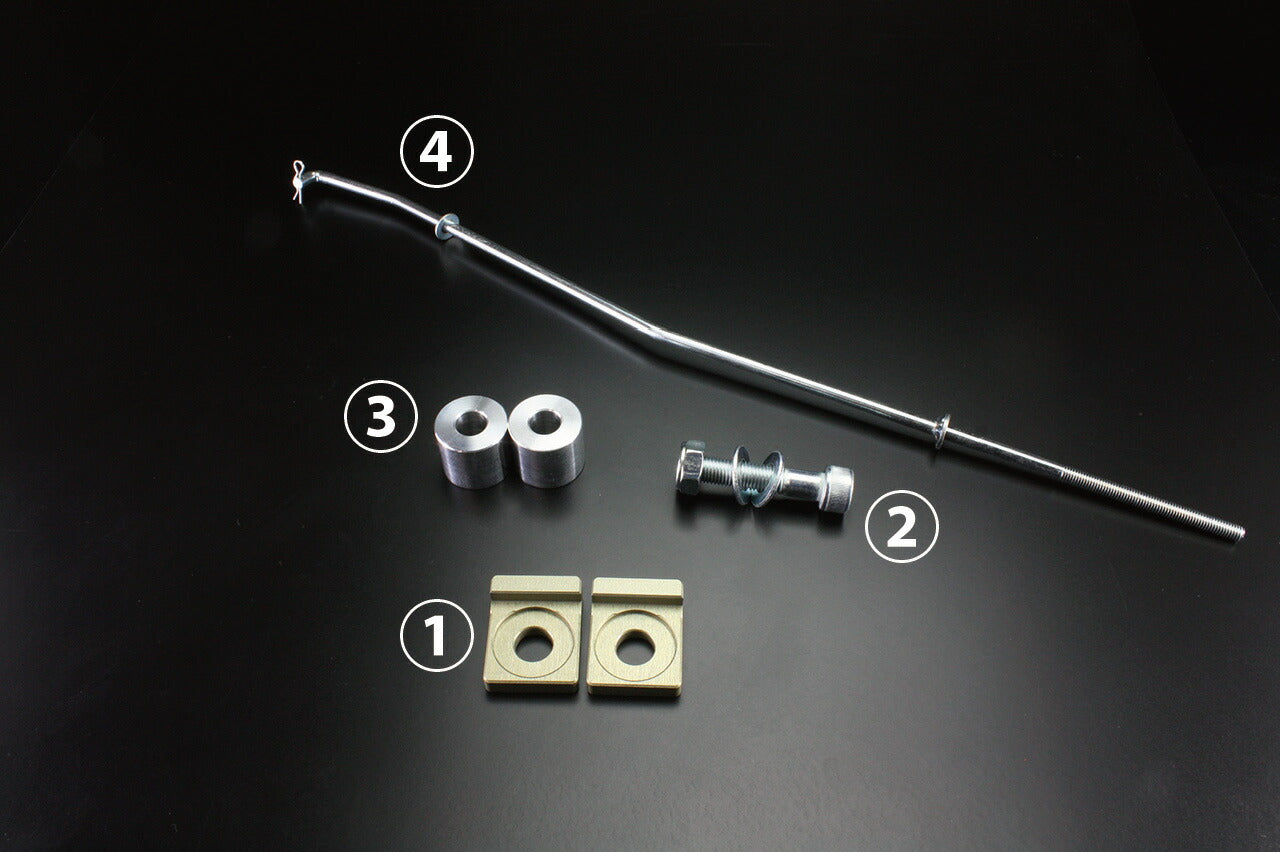

Accessories
(1) Chain adjuster block 1 set (dedicated to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 pc (repair part number 65235)
Nut 1 pc (repair part number 65229)
Washer 2 pcs (repair part number 65090/1 pc per pack)
(3) Seat fixing collar 22mm 2 pcs (repair part number 68133/1 pc per pack)
(4) Drum brake rod 1 pc (depending on swingarm length)
Precautions
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (disc up to 3.5J), 10 inches up to 3.5J can be installed. (+4cm or more is required)
*Only triple square pipes have chain sliders on the bottom as well.
*Please use genuine NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The basic stabilizer will be on the bottom.
*This is exclusively for GC-019 and GC-020 aluminum frames. Other frames cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
