GC-019/GC-020 Frame-Specific Swingarm, Monoshock, Standard, with Stabilizer, Buff, +12cm, Monkey Gorilla

【G-Craft 90594 GC-019/GC-020 Frame Exclusive Swingarm Monoshock Standard with Stabilizer Buff +12cm Monkey Gorilla】
GC-019, GC-020 Frame Exclusive S/A Monkey +12cm STD with Stabilizer
The standard width (for Monkey hubs) swingarm for GC-019 and GC-020 aluminum frames is manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
The triple square pipe swingarm, which uses a strong "I-beam cross-section," is supported by over 80% of users who choose 16cm or longer.
Compatible models
Monkey, Gorilla (for GC-019, GC-020 aluminum frames)
Surface treatment: Buff finish
Size: +12cm
Material: 7N01, A5083 material used

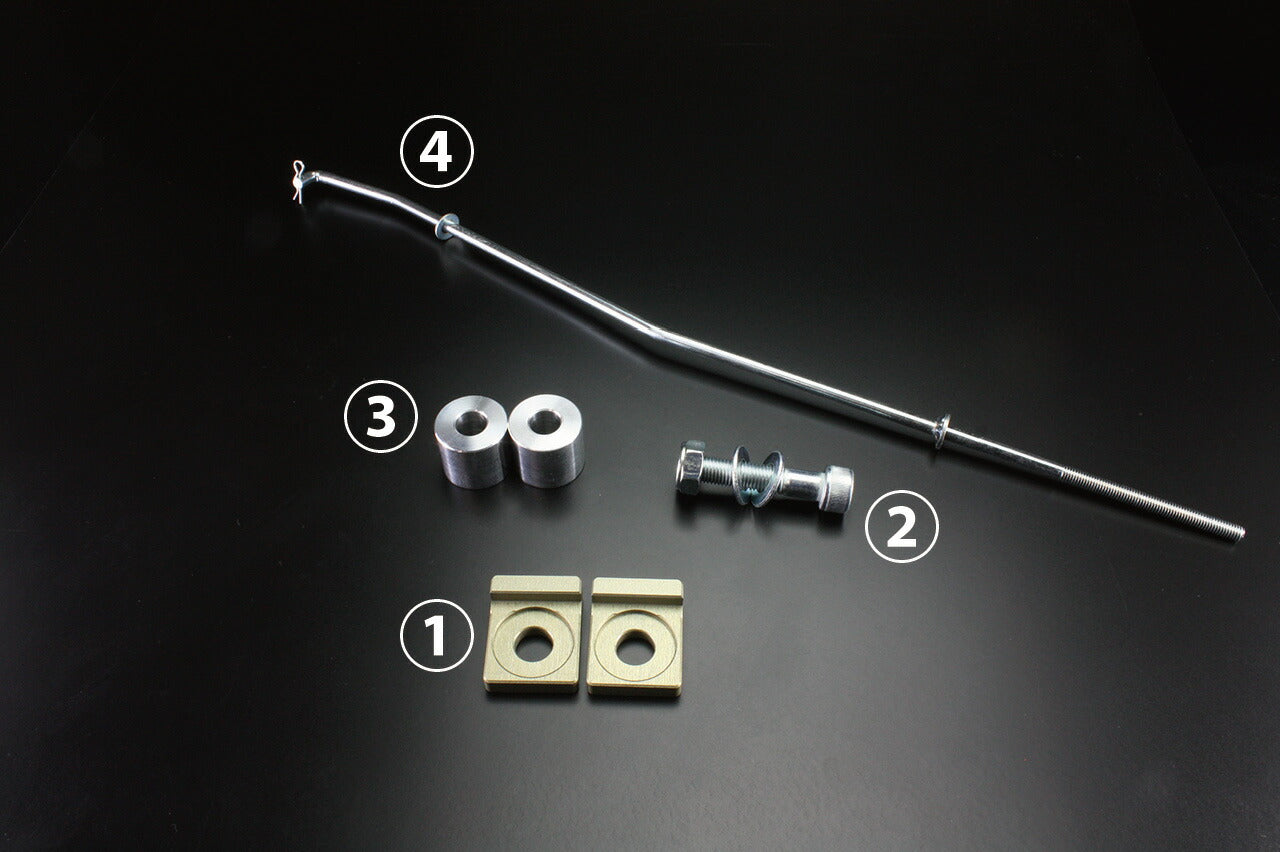

Accessories
(1) Chain adjuster 1 set (dedicated for each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (repair part number 65235)
Nut 1 (repair part number 65229)
Washer 2 (repair part number 65090/1 pc)
(3) Seat fixing collar 22mm 2 (repair part number 68133/1 pc)
(4) Drum brake rod 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (disc up to 3.5J), 10 inches up to 3.5J can be installed. (+4cm or more is required)
*Only triple square pipes have a chain slider on the bottom as well.
*Please use genuine NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The basic stabilizer will be on the bottom.
*Exclusive for GC-019 and GC-020 aluminum frames. Other frames cannot be installed.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
