GC-019/GC-020 Frame Only Swingarm, Monoshock, Standard, with Stabilizer, Buffed, +16cm for Monkey/Gorilla

【G-Craft 90596 GC-019/GC-020 Frame Only Swingarm, Monoshock, Standard, with Stabilizer, Buff, +16cm, Monkey Gorilla】
GC-019, GC-020 Frame Only S/A Monkey +16cm STD with Stabilizer
The standard width (for Monkey hub) swingarm for GC-019 and GC-020 aluminum frames is manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
The triple-square pipe swingarm, which uses a strong "eye-shaped cross-section," is supported by over 80% of users who choose lengths of 16cm or more.
Compatible models
Monkey, Gorilla (for GC-019, GC-020 aluminum frames)
Surface treatment: Buff finish
Size: +16cm
Material: 7N01, A5083 material used

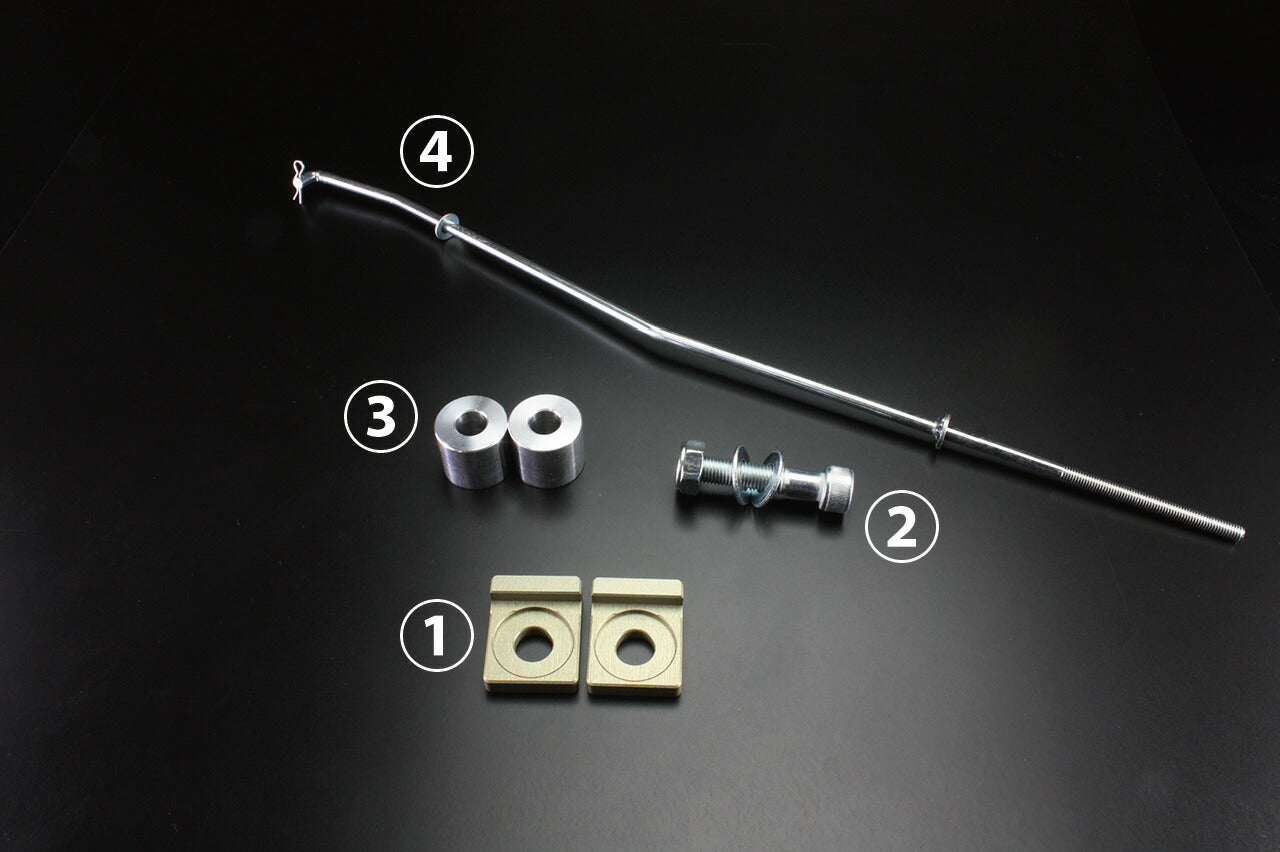

Included accessories
(1) Chain puller 1 set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt 1 (Repair part number 65235)
Nut 1 (Repair part number 65229)
Washer 2 (Repair part number 65090/1 pc)
(3) Seat fixing collar 22mm 2 (Repair part number 68133/1 pc)
(4) Drum brake rod 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8 inches 4.0J (discs up to 3.5J), and 10 inches up to 3.5J can be installed. (Requires +4cm or more)
*Only triple square pipes have a chain slider on the bottom.
*Please use genuine NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The basic stabilizer will be on the bottom.
*Exclusively for GC-019 and GC-020 aluminum frames. Other frames cannot be installed.
*The image is for illustration purposes, and the design and specifications of the products displayed may change without notice. Please be aware of this.
