GC-019/GC-020 Frame Only Swingarm, Monoshock, Standard, with Stabilizer, Buffed, +20cm, Monkey/Gorilla

【G-Craft 90597 GC-019/GC-020 Frame Only Swingarm Monoshock Standard with Stabilizer Buff +20cm Monkey Gorilla】
GC-019, GC-020 Frame Only S/A Monkey +20cm STD with Stabilizer
The standard width (for Monkey hubs) swingarm for GC-019 and GC-020 aluminum frames is manufactured with the same width as the genuine Monkey swingarm (width 167-170mm).
You can use the genuine Monkey hub as is, or use the 39053 rear disc hub.
This swingarm is compatible with both drum and disc brakes.
The triple square pipe swingarm, which uses a strong "I-beam cross-section," is a pipe that boasts over 80% support from users who choose 16cm or more.
Compatible models
Monkey, Gorilla (for GC-019, GC-020 aluminum frames)
Surface treatment: Buff finish
Size: +20cm
Material: 7N01, A5083 material used

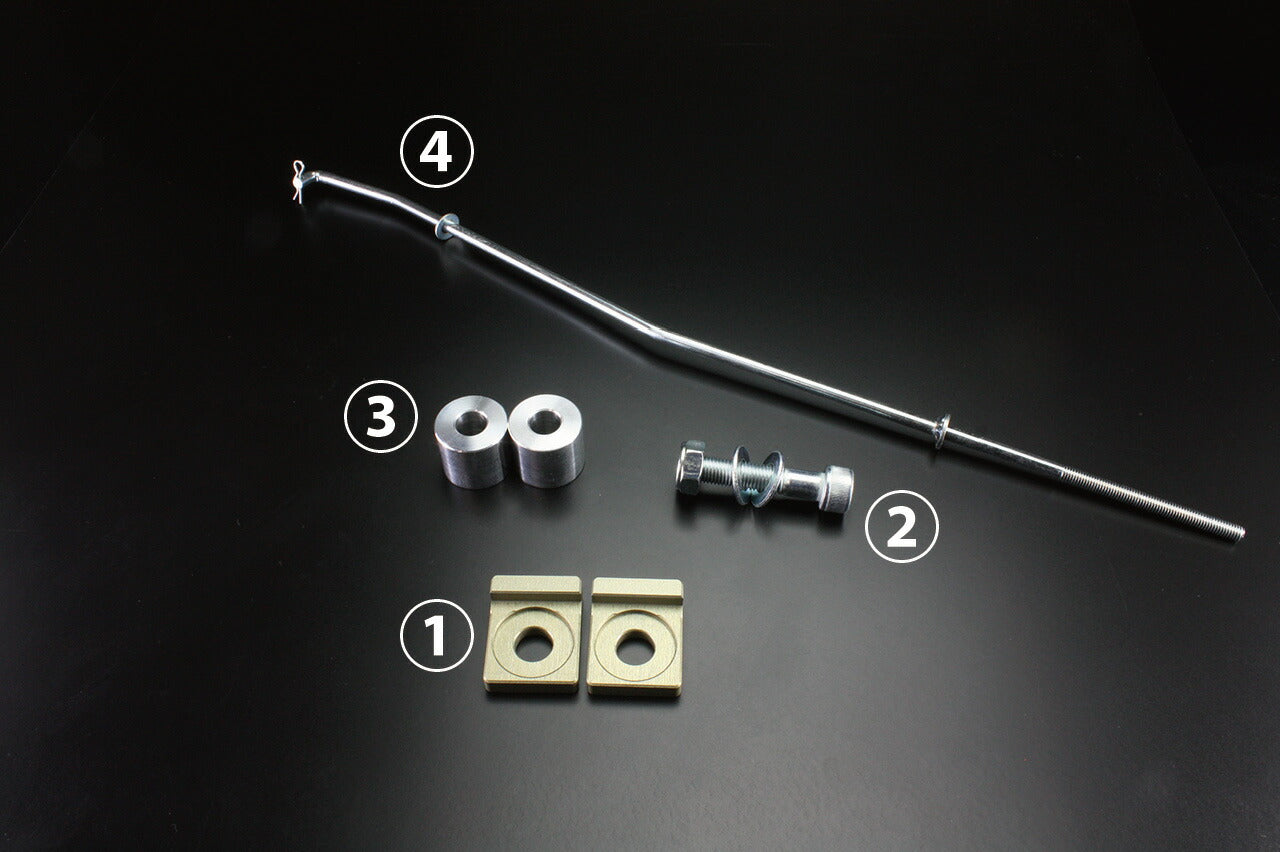

Accessories
(1) Chain adjuster set (specific to each pipe shape)
(2) Shock mounting bolt set
Bolt x 1 (repair part number 65235)
Nut x 1 (repair part number 65229)
Washer x 2 (repair part number 65090/1 pc per pack)
(3) Seat fixing collar 22mm x 2 (repair part number 68133/1 pc per pack)
(4) Drum brake rod x 1 (depending on swingarm length)
Notes
*STD (Standard), T/S (Triple Square), T/S Mini (Triple Square Mini), S/A (Swingarm) are abbreviations.
*Up to 8-inch 4.0J (disc up to 3.5J), and up to 10-inch 3.5J can be installed. (+4cm or more is required)
*Only triple square pipes have chain sliders on the bottom.
*Please use genuine NSR50/80 rear shocks. (Ohlins TTX cannot be installed)
*The stabilizer is generally on the bottom.
*This is exclusively for GC-019 and GC-020 aluminum frames. Other frames are not compatible.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
